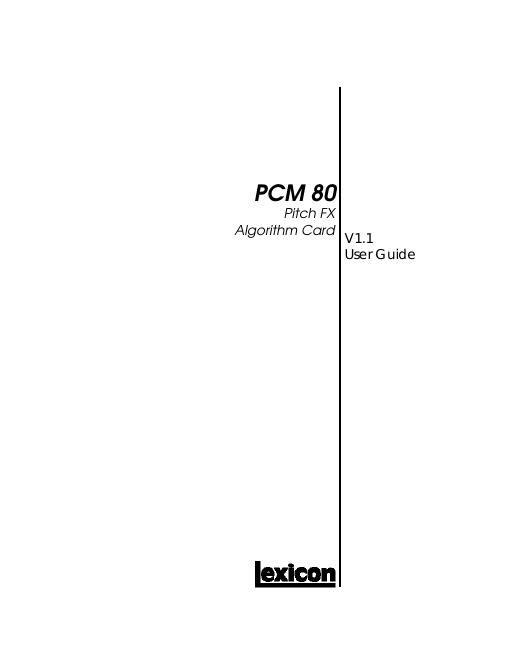

Lexicon PCM80 PchFX V11 Usr Gd Rev1
This is the 44 pages manual for lexicon PCM80 PchFX V11 Usr Gd Rev1.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from lexicon PCM80 PchFX V11 Usr Gd Rev1 (Ocr-read)
Page 1
Lexicon Part # 070-11674 Rev 1 Copyright Ó1997 All Rights Reserved. Unpacking and Inspection After unpacking the Pitch FX Algorithm Card, save all packing materials in case you ever need to ship the card. Thoroughly inspect the card and packing materials for signs of damage. Report any shipment damage to the carrier at once; report equipment malfunction to your dealer. This is a read only card. Use only with the Lexicon PCM 80, software version 1.10 or higher. To avoid damage to the card, do not expose to rain or moisture, extreme temperatures, direct sunlight, or extreme shock. In the event the card is dropped, damaged, or exposed to liquids, do not insert it into the PCM 80. Precautions Lexicon Inc. 3 Oak Park Bedford MA 01730-1441 Telephone 781-280-0300 Fax 781-280-0490 www.lexicon.com
Page 2
Contents Introduction 1. Pitch FX Card Operation Handling the Algorithm Card ............................................................... 1-1 Loading the Pitch FX Algorithms ........................................................ 1-3 Loading the Pitch FX Presets ............................................................. 1-4 2. The Pitch FX Algorithms and Parameters Overview ............................................................................................. 2-1 The Quad>Hall Algorithm ................................................................... 2-2 The Dual-Chmb Algorithm .................................................................. 2-4 The Dual-Plt Algorithm ........................................................................ 2-6 The Dual-Inv Algorithm ....................................................................... 2-8 The Stereo-Chmb Algorithm ............................................................. 2-10 The VSO-Chmb Algorithm ................................................................ 2-11 Parameter Descriptions .................................................................... 2-13 Tips for Setting Parameters .............................................................. 2-14 3. Using the Submixer Sends ........................................................................................... 3-2 Returns ......................................................................................... 3-2 Routing ......................................................................................... 3-3 Useful Configurations ................................................................... 3-3 Rvb and Pitch FX Block Controls ........................................................ 3-9 4. The Presets Program Bank X0 Vocal & Instrument ................................................ 4-2 Program Bank X1 Music & Sound Design .......................................... 4-6
