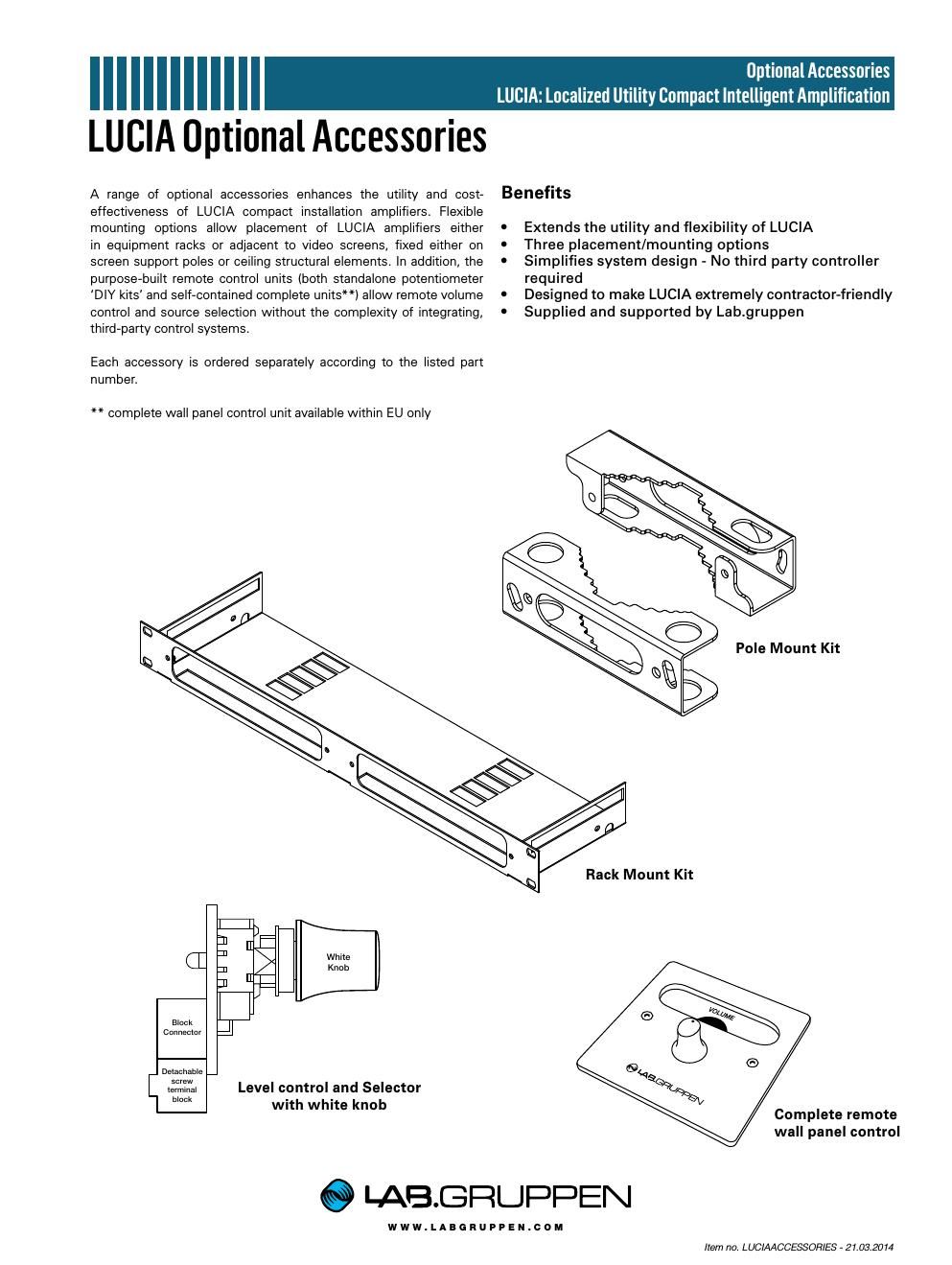

Page 1

www.labgruppen.com Item no. LUCIAACCESSORIES - 21.03.2014 LUCIA Optional Accessories Pole Mount Kit Part Number: 990692001 The Pole/Ceiling Mount Kit facilitates fast and secure fixing of a LUCIA unit to poles, beams and ceiling structures of various shapes and dimensions (circular, rectangular, oval, quadratic). Options might include a free -standing pole for a loudspeaker or video screen, a projector ceiling mount, or a cable tray. Included screws allow attachment to circular poles with a diameter from 19 mm (3/4) to 51 mm (2). Installation of Pole Mount - Method 1Installation of Pole Mount - Method 2 A: Use M4X5.5 mm screw supplied with product accessories B: Use M5X45 mm screw supplied with product accessories or B: Use M5X30 mm screw supplied with product accessories AA B B A A B B A A B B A A B B A A B B A A B B optional accessories lucIa: localized utility compact Intelligent amplication

Page 2

www.labgruppen.com Item no. LUCIAACCESSORIES - 21.03.2014 CL 16 142 18 20 (x4) 0 36,78 100,78 142 19,75 122,25 7,59 134,09 11,28 131,50 C L R10,50 R4,25 (x 2 ) 6 ,5 0 8,80 punch direct 35 9 0° 42 35 2 C L 64 36,78 punch direct LUCIA Optional Accessories Pole Mount Kit Apparatus on the opposite side of the pole/beam Apparatus attached to LUCIA C L 142 35 9 9 37 2,50 C L R5 28 126,50 ±0,10 M5 PEM SS-M5 - 2 (x2) R5 R5 28 102,50 ±0,10 R5 C L 64 R10,50 R10,50 36,06 122,50 optional accessories lucIa: localized utility compact Intelligent amplication
