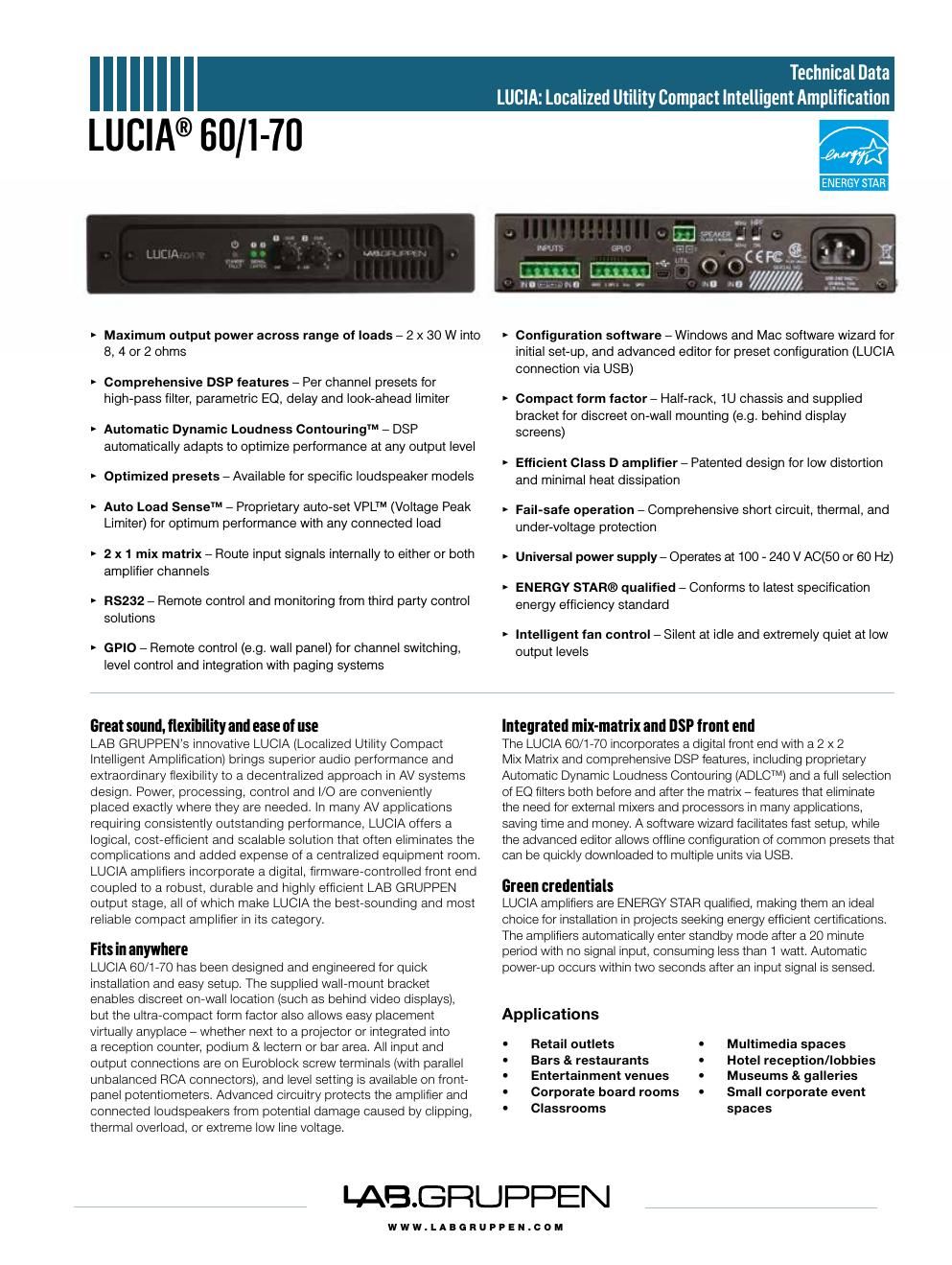

WWW.LABGRUPPEN.COM General LU C I A 6 0/1-70 Number of powered channels 1 Total output all channels driven 60 W Ma x output voltage 100 V peak Ma x. output current 1.8 Arms Performance 70 V 60 W 100 V 1) 30 W Gain, Sensitivity and Limiters VPL 100 V peak Sensitivity, balanced input 4 dBu / 1.23 Vrms Sensitivity, RCA input -2 dBu / 0.62 Vrms Input headroom for clip, balanced 2) 12 dBu / 3.09 Vrms Input headroom for clip, RCA 2) 6 dBu / 1.55 Vrms Connectors and switches Input connectors (per ch.) 3-pin detachable screw terminals, electronically balanced Input connectors (ch 1 & 2) Unbalanced RCA type Output connector 2-pin detachable screw terminal GPI 3) 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default functionality is output level for GPI1 and wake up from stand by for GPI2. GPO (power state output) 3) Contact closure type, 2 pins in a detachable screw terminal. Default for external monitoring of fault/protection/power of f RS232 4) Can be controlled and monitored by third par ties via RS232 using both the GPI pins USB For firmware update and configuration with the Application Browser sof tware Cooling One fan, no filter required, front-to-rear air flow, temperature controlled speed Can stay of f if the sustained power average stays below 12 W and the surrounding temperature is below 25 degrees C High pass filter This filter is in series with the other filters in the DSP and it is controlled with switches on the back. Settings OFF / 50 Hz / 80 Hz. Auto mode The power state is controlled automatically with the audio signal Level adjustment (per input) Front panel potentiometer, detented from -inf to 0 dB Processing Features Input processing block 5) 4 EQ sections per input Mix matrix routing block 5) 2 in - 1 out mix-matrix controllable from GPI Output processing block 5) 4 EQ sections (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation) Latency from any input to any output User adjustable from 9.15 to 137 ms Power Nominal voltage 100 - 240 VAC Operating voltage 85 - 265 VAC Standby consumption <1 W Mains connector IEC inlet Dimensions W: 216 mm (8.5), H: 44 mm (1.7), D: 280 mm (11) Weight 1.9 kg (4.2 lbs.) Finish Black aluminum front and black steel chassis Approvals CE, CSA, CCC, PSE, FCC, ENERGY STAR Note 1): The peak voltage is 100 V, but the look-ahead limiter solution ensures that it cannot clip, so in real life use with music or speech it will typically be able to sustain a higher SPL in 100 V applications than 100 V amplifiers with higher peak voltage capability as the amplifier have the capacity to handle peaks way beyond clip without sounding harsh. Note 2): An analog sof t limit will be engaged on the input above this level to reduce the clip distor tion Note 3): Can be configured for dif ferent functionality via USB Note 4): Included from October 2016 and onwards Note 5): DSP settings determined by settings downloaded from the Application Browser sof tware; not configurable on the unit itself All specifications are subject to change without notice. Item no. TDS-LUCIA60/1-70_V1 - 06.06.2016 Specifications LUCIA 60/1-70
