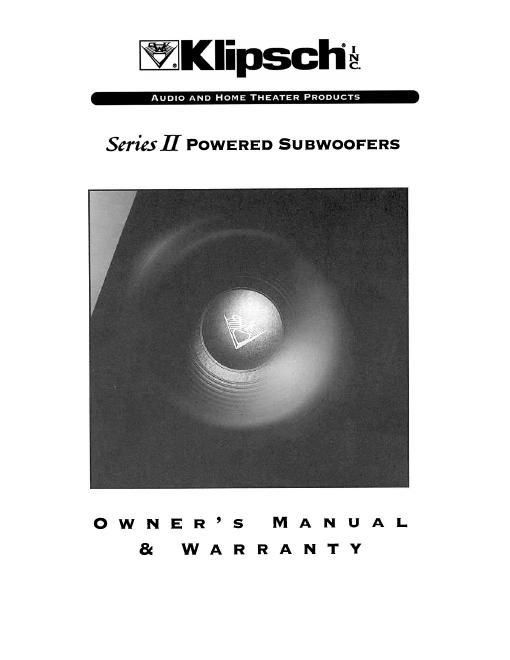

Page 1

@KIipsch'é

AUDIO AND HOME THEATER PRODUCTS

SerieslI POWERED SUBWOOFERS

OWNERS MANUAL
8: WARRANTY

Page 2

Congratulations on your purchase of a Klipsch powered subwoofer! Our powered subwoofer will add an exciting new dimen-
sion to your home entertainment system, bringing you state-of-the-art bass reproduction for audio or home theater use. For more
information on building your system using other quality Klipsch loudspeakers, please contact your authorized Klipsch dealer.

flaw/@441

Fred S. Klipsch
Chairman & CEO

Planning Your Klipsch Home Entertainment System

Your new Klipsch Powered Subwoofer has been designed
specifically to enhance the performance of your Home
Entertainment System, whether you are adding a subwoofer
to an audio system or to a home theater system. For optimum
performance, use Klipsch full range speaker systems as your

Audio

0 Front Lefl and Right Channels

lefi and right front channels, and rear surround channels.
Klipsch also engineers video shielded loudspeakers for use
as center channels. The suggested placements below will
help you plan your own Klipsch Home Theater System, or
visit your authorized Klipsch dealer for more information.

Audio/Home neuter

0 Left and Right Surround Channels

0 Powered Subwoofer

@ Center Channel

Powered
Subwoofer

Coucu

Video Shielded
Center Channel

Powered
Subwoofer

Front
Right
Channel
