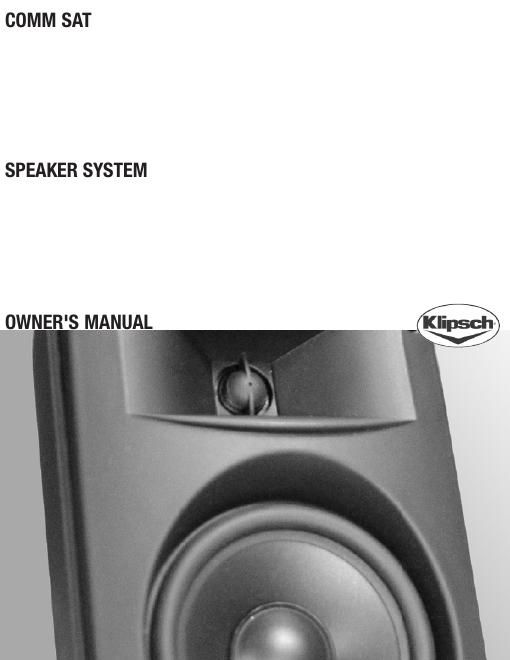

Klipsch comm sat owners manual
This is the 8 pages manual for klipsch comm sat owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from klipsch comm sat owners manual (Ocr-read)
Page 1
The models that can be used to create a typical Commercial Music System CMS 4.1 configuration are: Comm Sat – Small high frequency satellite speaker. Two or Four of these can be used with each Comm Sat Network. Comm Sat Mount – Adjustable mount that can be used for either ceiling or wall applications. Comm Sat Network – Transformer for 70V/100V distributed line systems as well as the crossover network for the Comm Sat and either the IC 8T SW flush mount subwoofer or the CA 800 TSW surface mount subwoofer. Subwoofer – You may use either the IC 8T SW flush mount subwoofer or the CA 800 TSW surface mount subwoofer with this system. One of either of these can be used with each Comm Sat Network. Before installing your Comm Sat speakers, please take a moment to check the contents of the cartons and make sure that nothing has been damaged in transit. Refer to Diagram 1 for typical installation. INSTALLATION GUIDELINES Caution: Be sure to comply with any and all building codes in your area. 1. Remove faceplate (which has Network assembly attached to it) from metal enclosure and mount the metal enclosure for the Comm Sat Network at the distribution point for the wires to be connected to it. The enclosure will accept appropriate conduit/wire adapters (not included). Feed wires through conduit/wire adapter and connect to the terminal strip according to the desired operation mode. Be sure to observe proper polarity. Replace enclosure cover after completing all connections properly and tighten the conduit/wire adapters to secure the wires.See Figure 1. Caution: When connecting 70V or 100V distributed line systems, take care to ensure proper terminal connections. Incorrect connections could result in speaker damage, amplifier damage, or both. IMPORTANT SAFETY INSTRUCTIONS 1.READ these instructions. 2. KEEP these instructions. 3. HEED all warnings. 4. FOLLOW all instructions. 5. DO NOT use this apparatus near water.6.CLEAN ONLY with dry cloth. 7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polar ized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult electrician for replacement of the obsolete outlet. 10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. ONLY USE attachments/accessories specified by the manufacturer. 12. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over. 13. UNPLUG this apparatus during lightning storms or when unused for long periods of time. 14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug isdamaged,liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture. WARNING:Voltages in this equipment are hazardous to life.No user serviceable parts inside.Refer all servicing to qualified service personnel. CAUTION:Changes or modifications not expressly approved by the manufacturer could void the users authority to operate this device. ABOUTYOURKLIPSCHPURCHASE Thank you for purchasing the Klipsch Comm Sat speaker system. The Comm Sat speaker system is designed for music reinforcement applications. The speakers are engineered for easy, unobtrusive installations and can be used to create a variety of different configurations. COMM SAT SPEAKER SYSTEM Figure 1
Page 2
WARRANTY– U.S. AND CANADA ONLY The Warranty below is valid only for sales to consumers in the United States or Canada. KLIPSCH AUDIO TECHNOLOGIES warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of five (5) years from the date of purchase. During the Warranty period, KLIPSCH will repair or replace (at KLIPSCHs option) this product or any defective parts (excluding electronics and amplifiers). For products that haveelectronics or amplifiers,the Warranty on those parts is for a period of two (2) years from the date of purchase. To obtain Warranty service, please contact the KLIPSCH authorized dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH product, it can be returned, freight paid, to KLIPSCH for repair. Please call KLIPSCH at 1 800 KLIPSCH for instructions. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the Warranty period, must be presented or included to obtain Warranty service. This Warranty is invalid if (a) the factory applied serial number has been altered or removed from this product or (b) this product was not purchased from aKLIPSCH authorized dealer.You may call 1 800 KLIPSCH to confirm that you have an unaltered serial number and/or you purchased from a KLIPSCH authorized dealer. This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, acts of God, accident, commercial use or modification of, orto any part of,the product.This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than KLIPSCH or a KLIPSCH dealer which is authorized to do KLIPSCH warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover product sold AS IS or WITH ALL FAULTS. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. KLIPSCH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE. Some states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may notapply to you.This Warranty gives you specific legal rights, and you may have other rights,which vary from state to state. WARRANTY– OUTSIDE THE UNITED STATES AND CANADA The warranty on this product if it is sold to a consumer outside of the United States or Canada shall comply with applicable law and shall be the sole responsibility of the distributor that supplied this product. To obtain any applicable warranty service,please contact the dealer from which you purchased this product,or the distributor that supplied this product. 2.Install the Comm Sat Speakers and Mounts. First, attach the Speaker to the Mount post (included with the Mount). Simply thread the post into the speaker until hand tight. Now pull the wire pigtail attached to the Comm Sat through the hole in the Mount tube and plate and make your connections in the box behind the plate. Once you have done this, attach the plate to the box. With the adjustment point on the Mount loose, adjust Speaker direction as desired. Tighten adjustment point on the Mount with the supplied tool after the Speaker is aimed as desired. See Figure 2. Caution: Attempting to adjust the Speaker direction after the Mount adjustment point has been tightened may result in Mount failure. The Comm Sat is designed to be mounted to the Comm Sat Mount only. 3.Install the Subwoofer of your choice,(You may use either the IC 8T SW flush mount subwoofer or the CA 800 TSW surface mount subwoofer with this system) following the installation instructions that are supplied with the subwoofer. Figure 2
