klipsch cms 4 1 brochure

Extracted text from klipsch cms 4 1 brochure (Ocr-read)

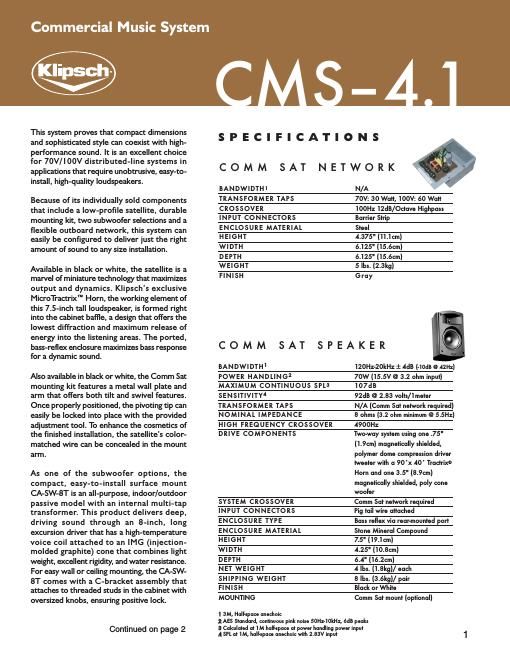

Page 1

Also compact and easytoinstall, the IC8TSW inceiling subwoofer option features a transformerless design that delivers high impact, robust bass. This model adds moredimension to any inceiling configuration byusing an 8inch woofer and 8inch drone, bothfeaturing polypropylene cones and high temperature voice coils in the woofer. While most subwoofers use a port to increase output, the IC8TSW employs a bandpass design that utilizes a passive radiator. This eliminates a lot of the distortion and minimizesturbulence that is often present in ported designs. The IC8TSW is shipped completewith a tilebridge for installation in a suspendedceiling or wherever additional reinforcementof the ceiling material is required. Specifically designed for this system, the Comm Sat Network is an outboard unit thatfeatures 70V/100V tapsettings and serves as a hub for up to four satellites and the chosen subwoofer. It is housed in an integral UL approved metal box. www.klipsch.com 1800KLIPSCH All specifications are subject to change without notice. ©2004 CMS–4.1 113M, Halfspace anechoic22AES Standard, continuous pink noise 50Hz10kHz, 6dB peaks33Calculated at 1M halfspace at power handling power input44SPL at 1M, halfspace anechoic with 2.83V input CA SW 8 T BANDWIDTH 1 51135Hz ± 4dB (10dB 42Hz) POWER HANDLING 2 150W (25V @ 6 ohm input) MAX CONTINUOUS OUTPUT 3 111 d B SENSITIVITY 4 92dB @ 2.83 volts/1 meter T R A N S F O R M E R T A P S 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W Thru Position: 6 ohms N O M I N A L I M P E D A N C E 6 ohms nominal (4 Minimum @ 92Hz) L O W F R E Q U E N C Y C R O S S O V E R 12dB/Octave lowpass, 150HzDRIVE COMPONENTS One 8" IMG cone woofer I N P U T C O N N E C T O R S 5way binding posts E N C L O S U R E T Y P E Bass reflex via front mounted port E N C L O S U R E M A T E R I A L Allweather ABS Plastic H E I G H T 11.125" (28.3cm) W I D T H 16.375" (41.5cm) DEPTH11.75" (29.9cm) N E T W E I G H T 19 lbs. (8.6kg) SHIPPING WEIGHT 22.1 lbs. (10kg) FINISHBlack or White M O U N T I N G CBracket (included); CA Safety Kit (optional) Continued from page 1 IC 8 T SW BANDWIDTH 1 53129Hz ± 4dB (10dB 44Hz) POWERHANDLING 2 150W (27V @ 6 ohm input) MAX CONTINUOUS OUTPUTS 3 111 d B SENSITIVITY 4 92dB @ 2.83 volts/1 meter S W I T C H T A P S 4 ohm Mono position Thru Position: 4 ohm Mono or 8 ohm Stereo TRANSFORMER70/100V Position 60W/120W N O M I N A L I M P E D A N C E 6 ohms (4.85 minimum @145Hz) LOW FREQUENCY CROSSOVER N/ADRIVECO M P O N E N T S One 8 woofer and one 8 drone, Polypropylene cone I N P U T C O N N E C T O R S 4 point terminal strip E N C L O S U R E T Y P E Bandpass enclosure (drone loaded) ENC L O S U R E M A T E R I A L Baffle: ABS Plastic, Can: Formed Steel H E I G H T 13.625" (34.6cm) DIAMETER 14.125" (35.9cm); 12.5" (cutout diameter) N E T W E I G H T 23 lbs. (10.4 kg) SHIPPING WEIGHT 30 lbs. (13.6kg) MOUNTING DEPTH11.25" (29.9cm) FINISH White M O U N T I N G Tilebridge (included) 2 Commercial Music System SUBWOOFER OPTIONS
