Kenwood PC 400 U Brochure

Extracted text from Kenwood PC 400 U Brochure (Ocr-read)

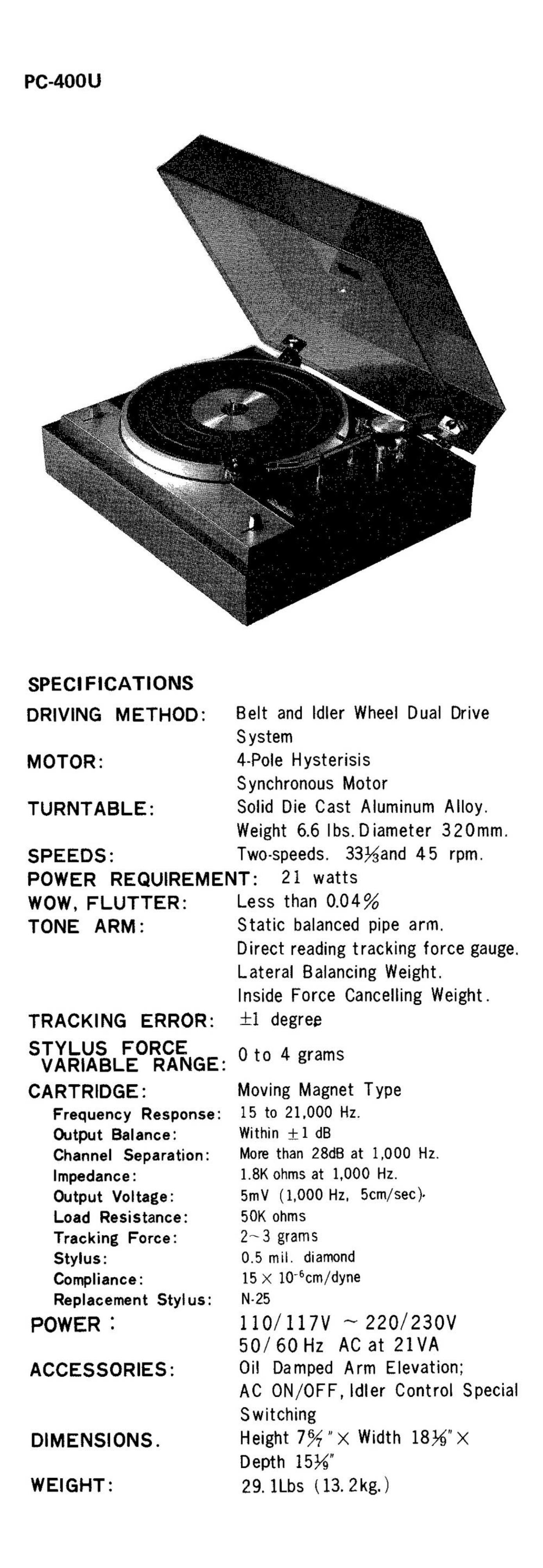

Page 1

PC-400U

SPECIFICATIONS
DRIVING METHOD:

MOTOR:

TURNTABLE:

SPEEDS:

Belt and Idler Wheel Dual Drive
System

4-Pole Hysterisis

Synchronous Motor

Solid Die Cast Aluminum Alloy.
Weight 6.6 lbs.Diameter 320mm.
Two-speeds. 33%and 45 rpm.

POWER REQUIREMENT: 21 watts

WOW. FLUTTER:
TONE ARM:

TRACKING ERROR:

STYLUS FORCE
VARIABLE RANGE:

CARTRIDGE:
Frequency Response:
Output Balance:
Channel Separation:
Impedance:

Output Voltage:
Load Resistance:
Tracking Force:
Stylus:

Compliance:
Replacement Stylus:

POWER 3

ACCESSORIES:

DIMENSIONS.

WEIGHT:

Less than 0.04%

Static balanced pipe arm.

Direct reading tracking force gauge.
Lateral Balancing Weight.

Inside Force Cancelling Weight.

t1 degree

0 to 4 grams

Moving Magnet Type

15 to 21,000 Hz.

Within i1 dB

More than 28dB at 1.000 H2.
1.8K ohms at 1,000 Hz.

5mV (1,000 Hz. 5cm/sec).
50K ohms

2~3 grams

0.5 mil. diamond

15 X 106cm/dyne

N-25

110/117V ~ 220/230V

50/ 60 Hz AC at 21VA
Oil Damped Arm Elevation;

AC ON/OFF, Idler Control Special
Switching

Height 7%"X Width 18%"X
Depth 15%"

29.1Lbs (13.2kg.)
