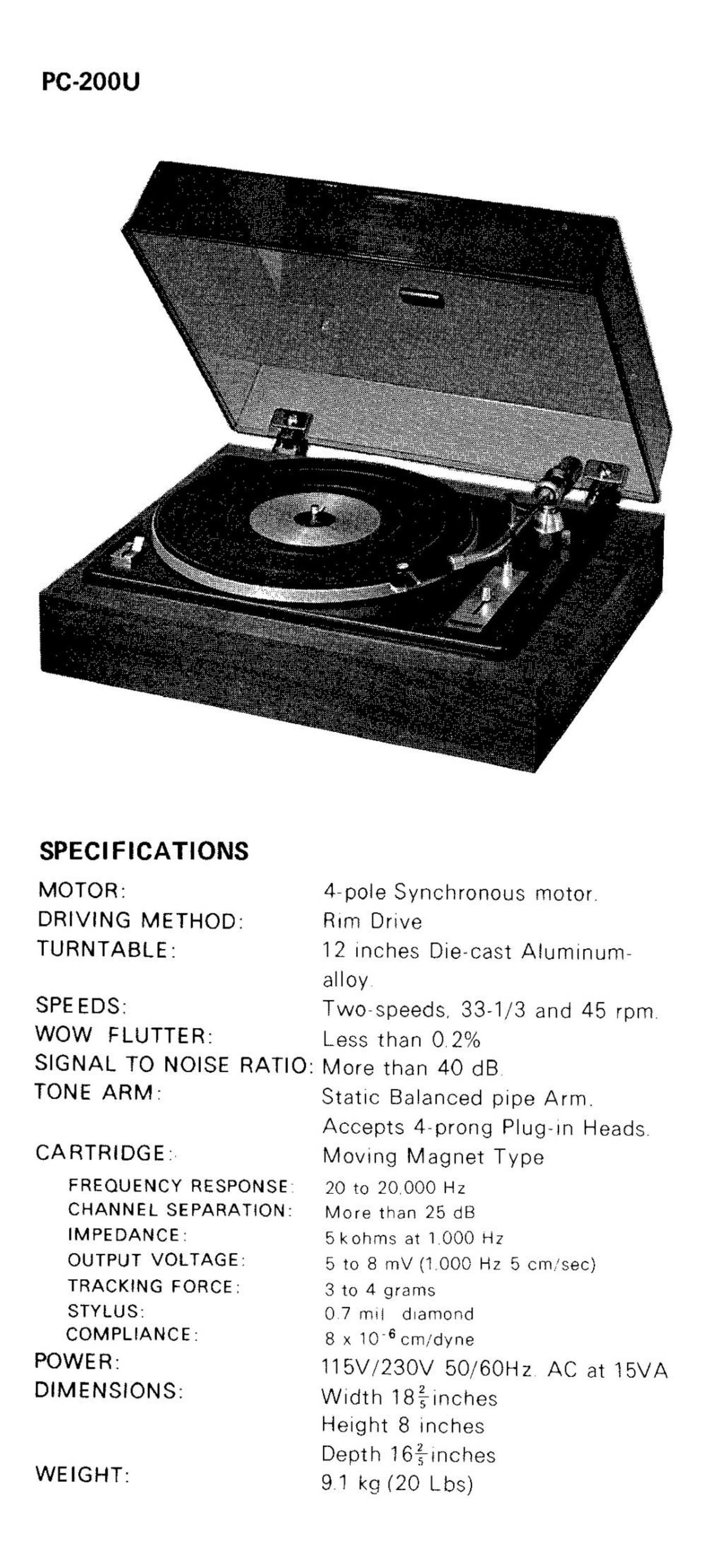

PC-200U
SPECIFICATIONS
MOTOR:
DRIVING METHOD:
TURNTABLE:
SPEEDS:
WOW FLUTTER:
SIGNAL TO NOISE RATIO:
TONE ARM:
CARTRIDGE:
FREQUENCY RESPONSE
CHANNEL SEPARATION:
IMPEDANCE:
OUTPUT VOLTAGE:
TRACKING FORCE:
STYLUS:
COMPLIANCE:
POWER:
DIMENSIONS:
WEIGHT:
4-poIe Synchronous motor.
Rim Drive
12 inches Die-cast AIuminum-
alloy
Two-speeds, 33-1/3 and 45 rpm
Less than 0.2%
More than 40 dB
Static Balanced pipe Arm.
Accepts 4-prong Plug~in Heads.
Moving Magnet Type
20 to 20000 Hz
More than 25 dB
Skohms at 1.000 H2
5 to 8 mV (1000 Hz 5 cmgsec)
3 to 4 grams
0 7 mi! diamond
8 x IO'Gcm/dyne
HEN/230V 50/60Hz AC at IBVA
Width 18%inches
Height 8 inches
Depth 16%inches
9.1 kg (20 Lbs)
