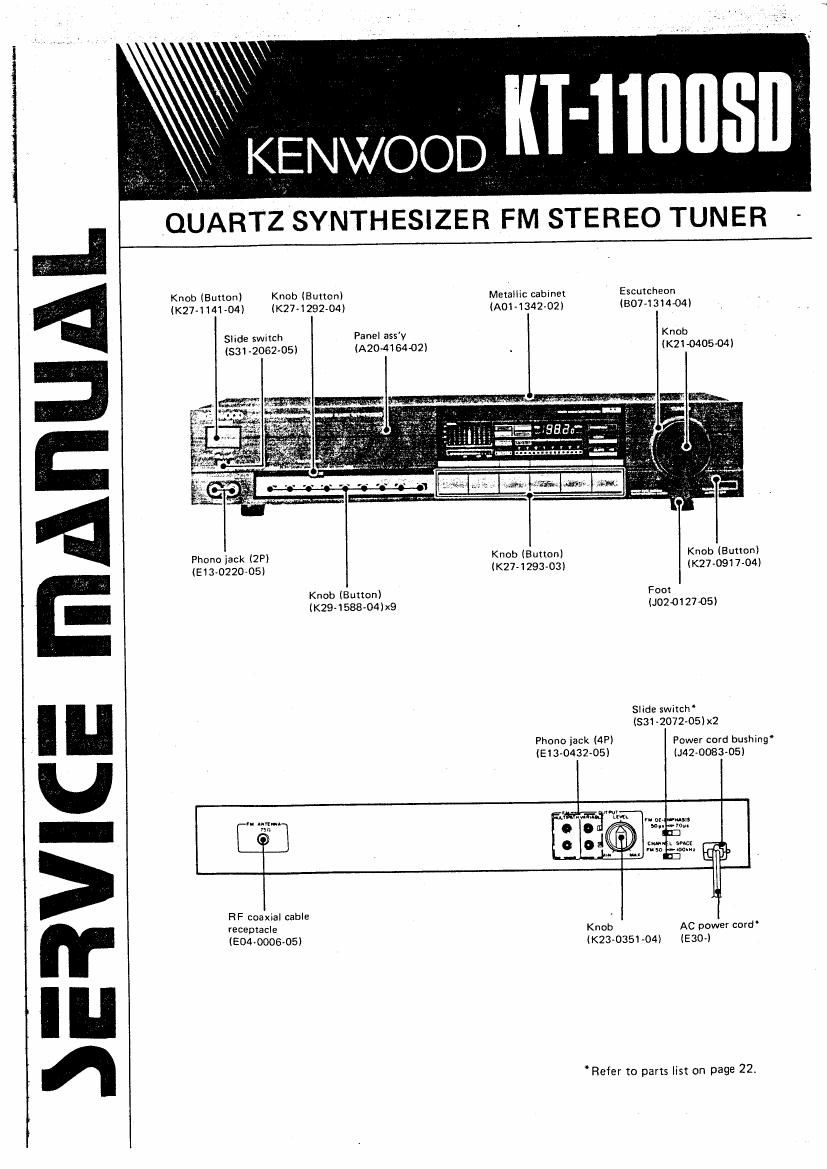

Kenwood KT 1100 SD Service Manual
This is the 34 pages manual for Kenwood KT 1100 SD Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KT 1100 SD Service Manual (Ocr-read)
Page 2
criicun nescmr'riiiii
Operation of active elements
Tuner unit (X05-2810-1li
Element Function Oplration (compatible)
1C1 1/2 DCC distortion component adder
lCl 2/2 PLL detector DC amp
lCZ 1/2 Noise amp Amplifies the noise detection component of more than approx. 150kHz,
IC2 2/2 Band, noise muting detection With no input or incomplete detuning. output ® is -llV at © < © .
comparator With normal tuning, it is + 11V at ® > © , (AN6556l
its Multiplier Multiplies the composite signals Ifrom the detector by each other to generate the
secondary distortion elimination signal.
_ . Muttiplies the secondary distortion signals generated at IC3 and IC6 and the composite
lC4 Multiplier _ _ _ . »
signal. to generate the tertiary distortion elimination signal.
, . Multiplies the secondary distortion signals generated at lC3 and 1C6 by each other to
|C5 Multiplier I _ . . . I
generate the quaternary distortion elimination signal.
lCG 2/2 Current-voltage conversion Converts the current output of lC3 lmultiplierl into a voltage output.
IC6 1/2 Secondary distortion signal amp The variable gain amp which changes the correction amount of distortion correspond-
lng to FM-IF band selection. (NJM4560)
|C7 1/2 Current-voltage conversion Converts the current output of IC4 into a voltage output.
IC7 2/2 Currentvoltage conversion Converts the current output of Hill into a voltage output. iNJMASBO)
DET distortion correcting differential , . _ L
IC8 1/2 amp Changes the differential balance by VRl to vary the gain and phase.
lCS 2/2 . Secondary stereo thh only) Changes the differential balance by VR3 to vary the gain and phase. (NJM4560l
distortion correCtion differential amp .
1C9 1/2 Secondary MONO distortion Changes the differential balance by V82 to vary the gain and phase.
correction differential amp
lC9 2/2 OuaternaryIdisrortion (primary Changes the differential balance by VRG to vary the gain and phase. lNJM4560l
differentiation) correction
differential amp
lC10 1/2 Tertiary Stereo,(SUB fjlsmmon Changes the differential balance by VHS to vary the gain and phase.
correction differential amp
Quaternary distortion (secondary
lClO 2/2 differentiation) correction Changes the differential balance by VH7 to vary the gain and phase. (NJM4560)
differential amp
Forms the feedback loop by 2 integrators (l/Zl and (2/2l for oscillation. The output
IC11 REC CAL OSC integrator of l2/2i is a sine wave. At OFF, the voltage at pin (5) rises by 046 and the voltage at
pin ® is fixed to +11V so that OSC stops. (AN6556l
IC12 1/2 Pilot cancel signal inversion amp
Composite signal-REC CAL signal REC CAL OFF : Adds the composite signal and the pilot cancel signal and performs
IC12 2/2 selection and pilot cancel inversion inversion amplification.
1 . adder REC CAL ON : inversion-amplifies the REC CAL signal,
Pin @ : Stereo with auto quieting control pin at less than 1.0V. Mono with pin at
more than 1.8V.
Pin © : 38kHz square wave output -
|C13 3BkHz subcarrier generating MPX IC Pin ® : Stereo indicator drive
Pin ® : Pilot cancel signal (triangle wave) output
Pins @ - @ :PLL loop filter
Pin @ : vco
Multiplies the composite signal and the 38kHz subcarrier. The respective I/o pins are
at current mode.
lC14~17 SUB demodulation linear multiplier Pin (D : 38kHz input
Pin Qt) : Output
Pin . : Composite signal input
IC18 1/2 SUB signal inversion Inverts the Fich SUB signal.
