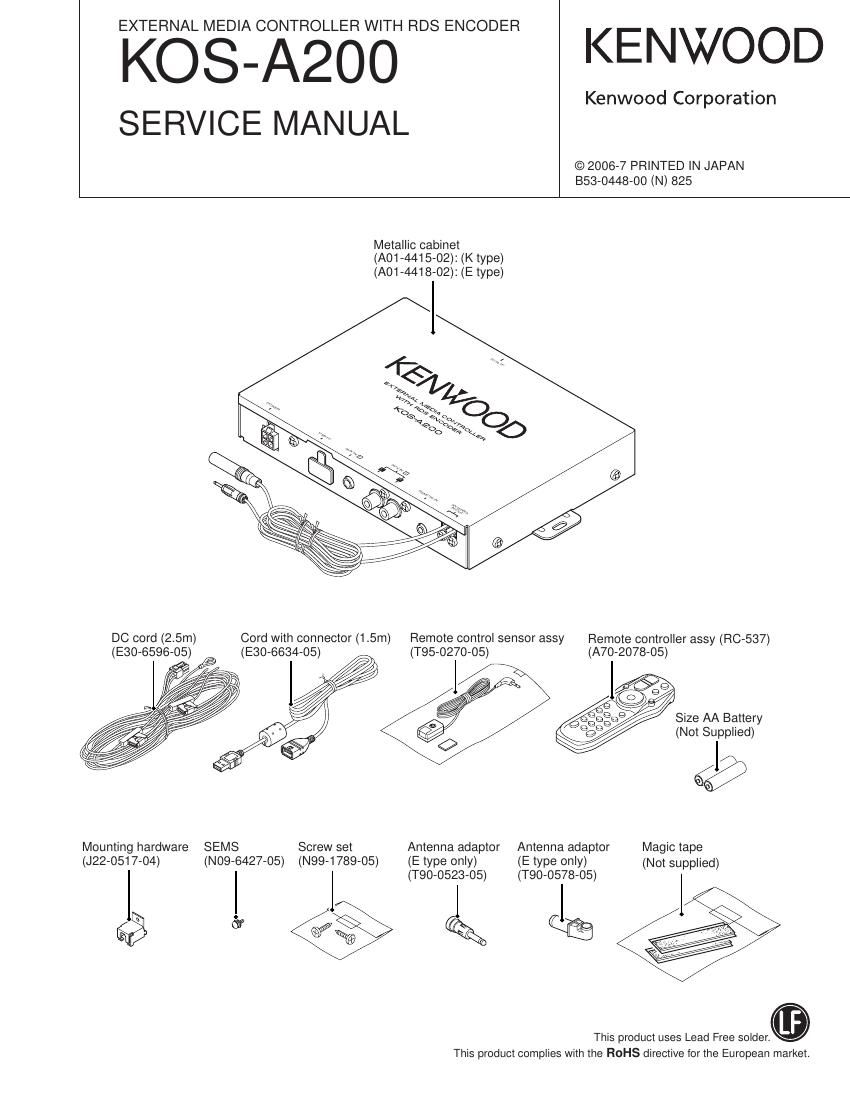

Page 1
$8 Ell-lchCé-LBVB-i RDS ENCODER KE NWOO D
Kenwood Corporation
SERVICE MANUAL
© 2006-7 PRINTED IN JAPAN
853-0448-00 (N) 825
Metallic cabinet
(A01-4415-02): (K type)
(A01 -441 8-02): (E type)
N
DC cord ( .5m) Cord with connector (1.5m) Remote control sensor assy Remote controller assy (RC-537)
(BO-659605) (E30-6634-05) (T95-0270-05) (A70-2078-05)
Size AA Battery
(Not Supplied)
Mounting hardware SEMS Screw set Antenna adaptor Antenna adaptor Magic tape
(J22-0517-04) (N09-6427-05) (N99-1789-05) (E type only) (E type only) (Not supplied)
1 (T90-0523-05) (T90-0578-05) l
i at l 1
hr ' Ww % %
This product uses Lead Free semen.
This product complies with the RoHS directive for the European market.
