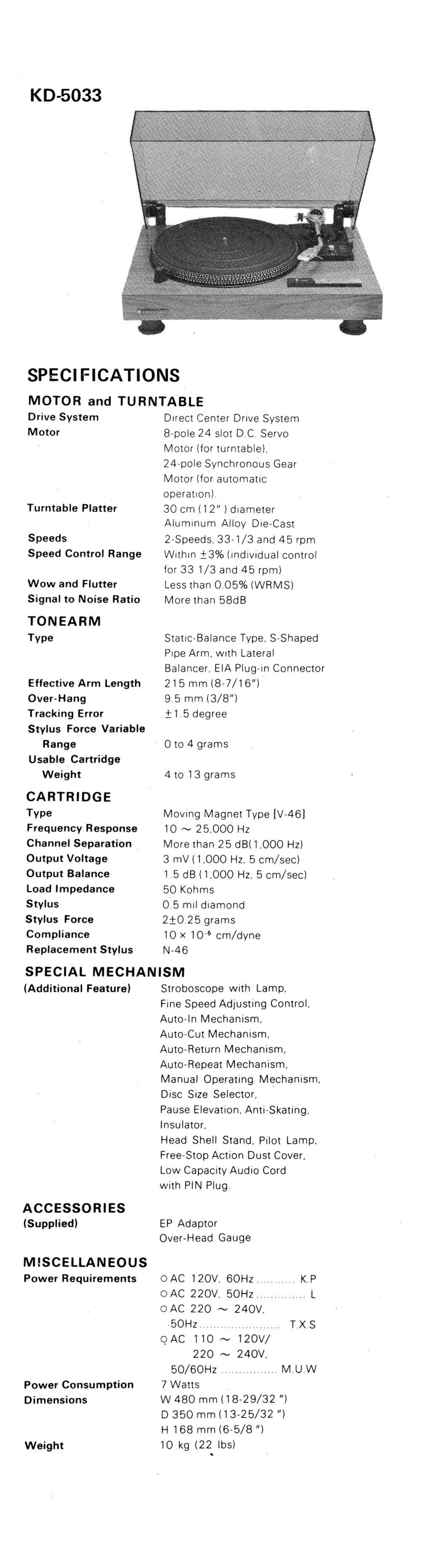

KD-5033
SPECIFICATIONS
moron and TURNTABLE
Drive System
Motor
Turntable Platter
Speeds
Speed Control Range
Wow and Flutter
Signal to Noise Ratio
TON EARM
Type
Effective Arm Length
Over-Hang
Tracking Error
Stylus Force Variable
Range
Usable Cartridge
Weight
CA RTR I DG E
Type
Frequency Response
Channel Separation
Output Voltage
Output Balance
Load Impedance
Stylus
Stylus Force
Compliance
Replacement Stylus
Direct Center Drive System
8-pole 24 slot DC. Servo
Motor (for turntable).
24-pole Synchronous Gear
Motor (for automatic
operation).
30 cm (12 ) diameter
Aluminum Alloy Die-Cast
2-Speeds. 33-1/3 and 45 rpm
Within i3% (individual control
for 33 1/3 and 45 rpm)
Less than 0.05% (WRMS)
More than 58dB
Static-Balance Type. S-Shaped
Pipe Arm, With Lateral
Balancer. EIA Plug-in Connector
2i 5 mm (8-7/16)
9.5 mm (3/8)
ii .5 degree
0 to 4 grams
4 to 13 grams
Moving Magnet Type IV-46]
10 ~ 25,000 Hz
More than 25 dB( 1.000 H2)
3 mV (1,000 Hz. 5 cm/sec)
1.5 dB (1.000 H2, 5 cm/sec)
5O Kohms
0.5 mil diamond
2iO.25 grams
10 x 10'6 cm/dyne
N-46
SPECIAL MECHANISM
(Additional Feature)
ACCESSORIES
(Supplied)
MISCELLANEOUS
Power Requirements
Power Consumption
Dimensions
Weight
Stroboscope with Lamp.
Fine Speed Adjusting Control.
Auto-In Mechanism.
Auto-Cut Mechanism.
Auto-Return Mechanism.
Auto-Repeat Mechanism.
Manual Operating Mechanism.
Disc Size Selector.
Pause Elevation, Anti-Skating.
Insulator.
Head Shell Stand. Pilot Lamp.
Free-Stop Action Dust Cover.
Low Capacity Audio Cord
with PIN Plug.
EP Adaptor
Over-Head Gauge
OAC 120V. 60Hz ........... K.P
OAC 220V. 50Hz .............. L
OAC 220 ~ 240V.
-50Hz ....................... T.X.S
QAC 110 ~ 120V/
220 ~ 240V.
50/60Hz ................ M.U.W
7Watts
W 480 mm (18-29/32 )
D 350 mm (13-25/32 ")
H 168 mm (6-5/8 ")
10 kg (22 lbs)
