Kenwood KA 995 Owners Manual

Extracted text from Kenwood KA 995 Owners Manual (Ocr-read)

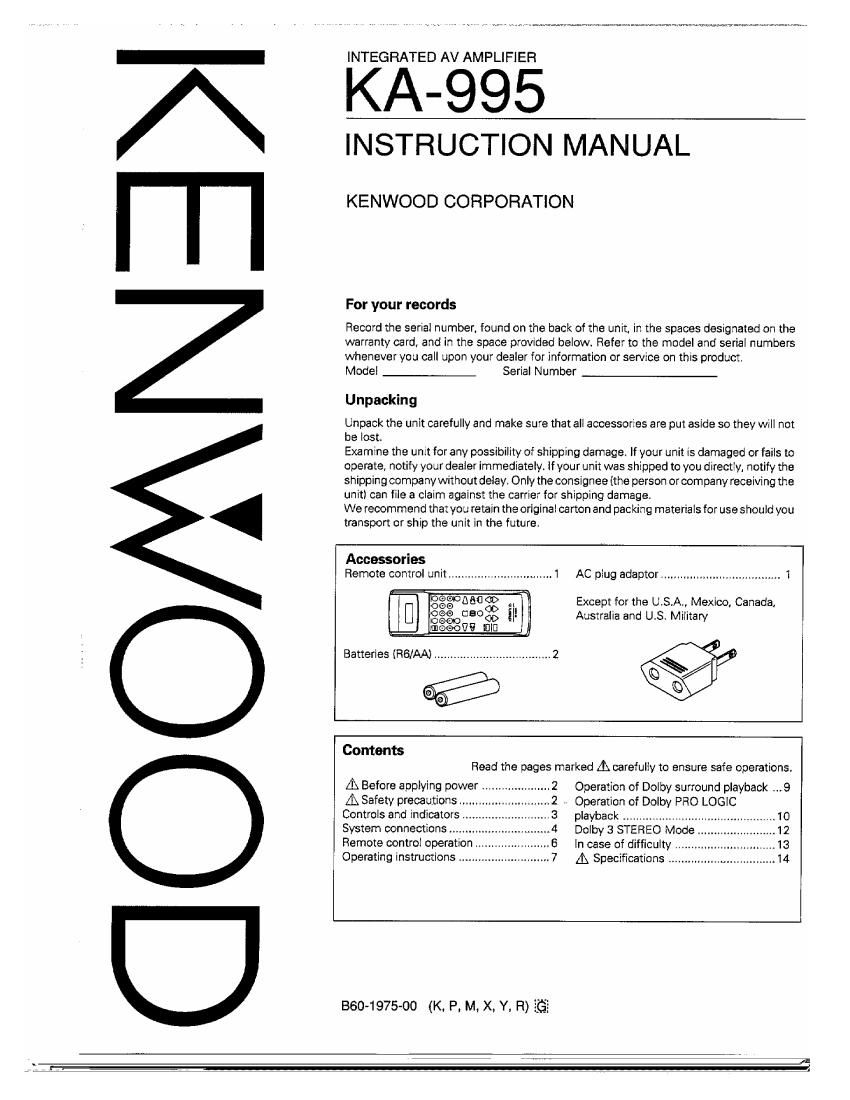

Page 1

I..MNEI>|

INTEGRATED AV AMPLIFIER

KA-995

INSTRUCTION MANUAL

KENWOOD CORPORATION

For your records

Record the serial numberl found on the back of the unit, in the spaces desrgnated on the
warranty card, and in the space provided below. Refer to the model and serial numbers
whenever you call upon your dealer for information or service on this product.

Model -_ Serial Number

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not
be lost.

Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to
operate, notify your dealer immediately. If your unit was shipped to you directy. notify the
shipping company without delay, Only the consignee (the person orcom pany receiving the
unit) can file a claim against the carrier for sh'pping damage.

We recommend that you retain the original carton and packing materials for use should you
transport or ship the unit in the future,

Accessories
Remote control unit ................................ 1 AC plug adaptor .................................... 1

Except for the U.S.A., Mexico Canada,
Australia and US. Military

Contents
Read the pages marked Awrefully to ensure safe operations.

A. Before applying power V
A Safety precautions,
Controls and indicators
System connections
Remote control operation
Operating inSchtions ............................

Operation of Dolby surround playback .9
7 Operation of Dolby PRO LOGIC

playback ......................

Dolby 3 STEREO Mode

In case of difficulty

A Specifications

\lmthN

BSD-197500 (K, P. M, X, Y, R) " "

Page 2

SIEBCiaI features A Caution: Read this page carefully to ensure safe operation.

DOLBY SURROUND PRO LOGIC :This function allows to enjoy a similar Dolby Surround effect to movie theaters from video
software programs carrying the D_ mark

DOLBY 3 STEREO

. :The Dolby 3 STEREO provides an active center channel to produce a better. stable center

image. This mode can be used when listening to stereo video program and music or when
surround listening or surround system set-up is not possible,

Remote control unit

Before applying power

: The remote oontroi unit is provided with this unit.

Units are designed for operations as iollows.

U.S.A. and Canada ...................................... AC 120 V only
Australia ......... .AC 240 V only
U.K. and Europe .AC 230 V only
Other countries AC 110-120/220/230-240 V switchable

For the United Kingdom
Factory fitted moulded mains plug

1. The mains olu contains a fuse. For repiacement, use only
a I3-Amp AS A-approved (BS1362I fuse.

2. The fuse cover must be refitted when replacing the fuse in
moulded plug.

3. Do not out off the mains plug from this equipment. If the
piug fitted is not suitable for the power points In your home
or the cable is too short to reach a power point. then obtain
an appropriate safety approved extension lead or adapter,
or consult your dealer. .
lfnonetheless the mains plug rs cut off. remove the fuse and
dispose of the plug immediately, to avod a possrble shock
hazard by inadvertent connection to the mains supply.

IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code: Blue: Neutral

Brown: Live
Do not connect those leads to the earth terminal of a three-pin

piug.

AC voltage selection

The AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC ouflet, make
sure that the setting position of this switch matches your line
voltage. It not. it must be set to your voltage in accordance
with the following direction.

Ac voltage selector switch

Acuwaw- Acazw- Wow

Move switch lever to match your line voltage with
a smell screwdriver or other pointed tool.

Note:

Our warranty does not coverdamage caused by excessive line
voltage due to improper setting of the AC voltage selector
switch.

Safety precautions

WARNING:TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.

CAUTION CAUTION: TO REDUCE THE RISK or ELECTRIC SHOCK. DO NOT
A A REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

RISK or ELECTRIC SHOCK
iNSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

00 nor OF :N

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL
TRIANGLE, IS INTENDED TO ALERTTHE USER TO THE PRESENCE OF UNINSULATED
"DANGEROUSVOLTAGE" WITHIN THE PRODUCTS ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO
PERSONS.

THE EXCLAMATION POINT WITHIN AN EOUILATERAL TRIANGLE IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING
THE APPLIANCE.

2 995191)

_T' I
