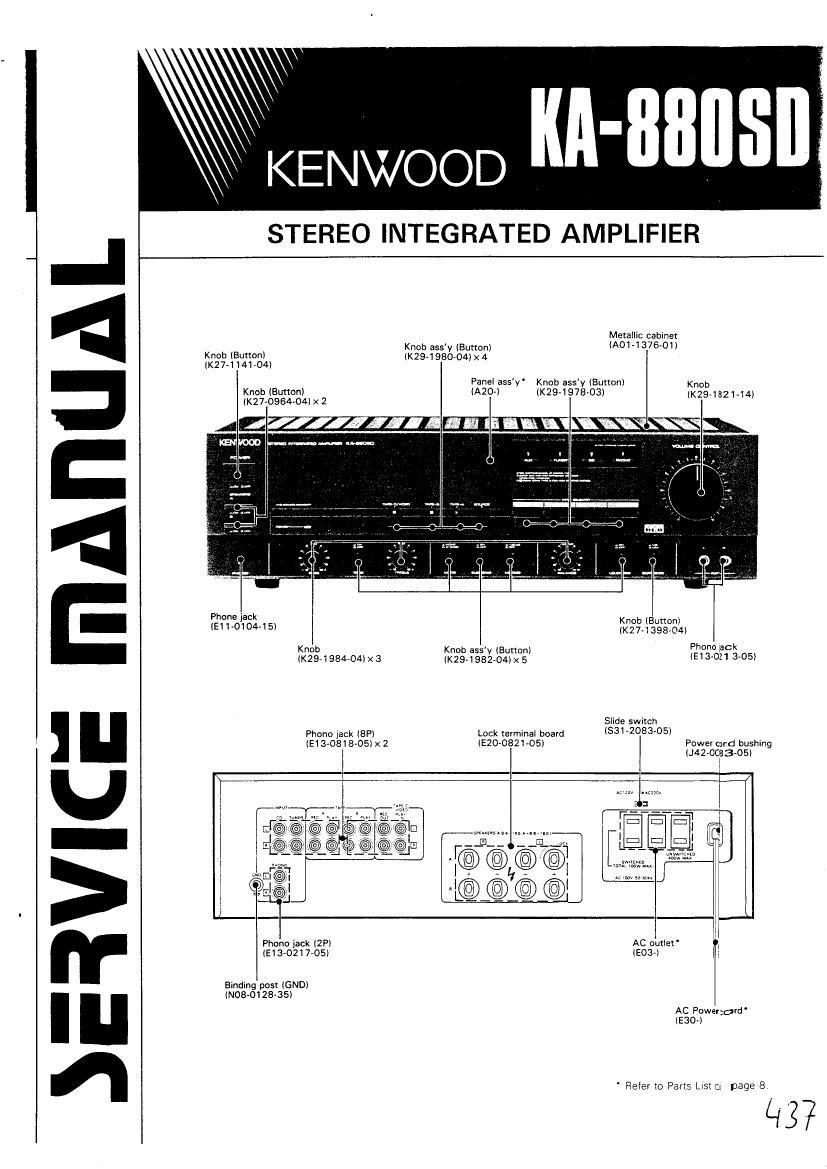

Kenwood KA 880 SD Service Manual
This is the 14 pages manual for Kenwood KA 880 SD Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KA 880 SD Service Manual (Ocr-read)
Page 2
III-8803
DISASSEMBLY FDR REPAIR
REPLACEMENT 0F PARTS ON AUDIO UNIT
1. Remove the metallic cabinet, Remove 1 screw in the
middle of large capacitors and 1 screw at the right-
forehand side (0).
2. Remove 2 screws at the chassis R (unified with the bot»
tom plate) (9) and 2 screws at the rear panel lfll
FLAT CABLE
3. Remove 4 screws at the bottom plate (0).
4 Slide and remove the bottom plate as shown by the ar-
row, being aware that parallel flat cable is sandwiched by
pc boards (all.
\\\\\ 11
.\
REPLACEMENT 0F PARTS 0N MAIN AMP UNIT
5. Remove 4 screws at the sides of the chassis 2 on each
side, (0) and 2 screws at the bottom side of the panel
assy (0 ).
