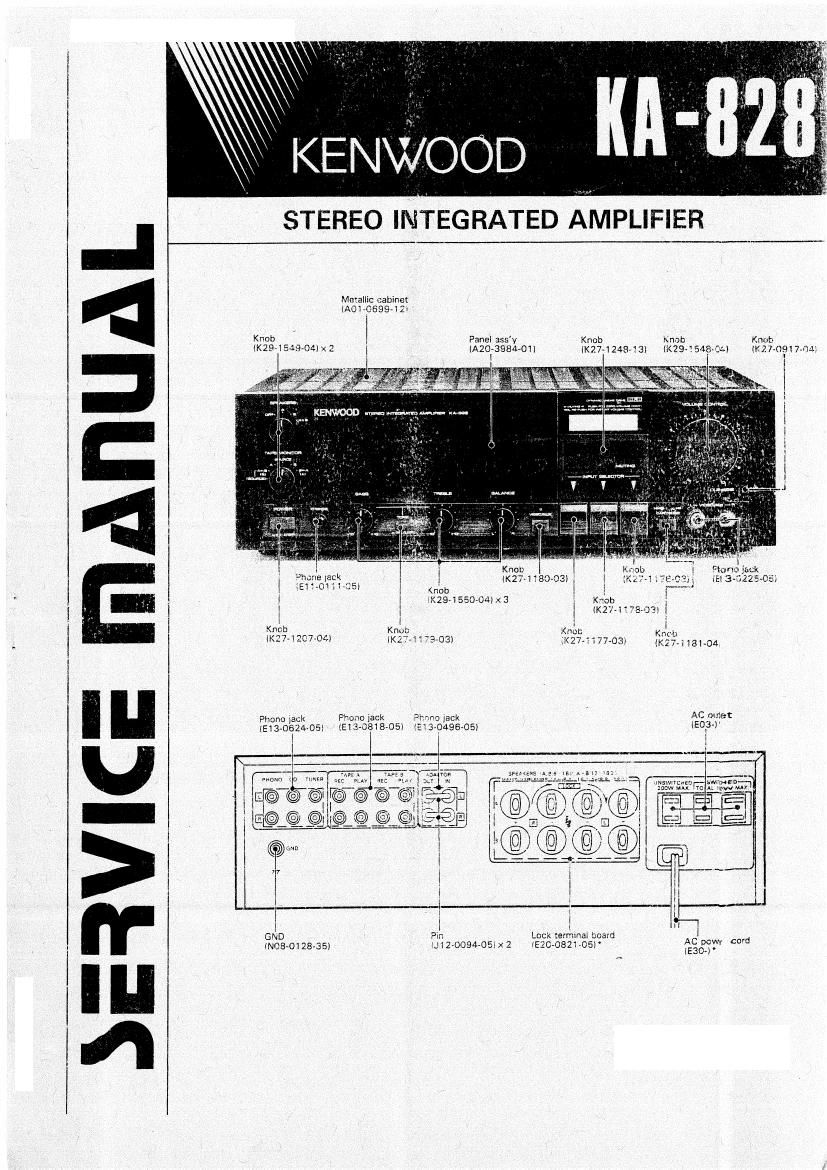

Kenwood KA 828 Service Manual
This is the 13 pages manual for Kenwood KA 828 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KA 828 Service Manual (Ocr-read)
Page 2
-828
DISASSEMBLY FOR REPAIR
0 Removal of Power Amplifier pcb (X07-2150-11)
1 Remove the metallic cabinet and a screw near the elec-
trolytic capacitors C13 and C14. ((Dl
2. Remove the bottom plate and 4 screws retaining the
mounting hardware to the chassis from the bottom Side
l®, ®l
3i Unsolder the lead of the capacitor between the chassis
and the rear panel. (G), ©l
4. Remove 5 screws retaining the rear panel to the chassnsv
l©l
5. The power amplifier pcb, With the rear panel and mounting
hardwares, can be separated from the rest. This allows the
components to be replaced easnly, (C7))
