Kenwood KA 7100 Owners Manual

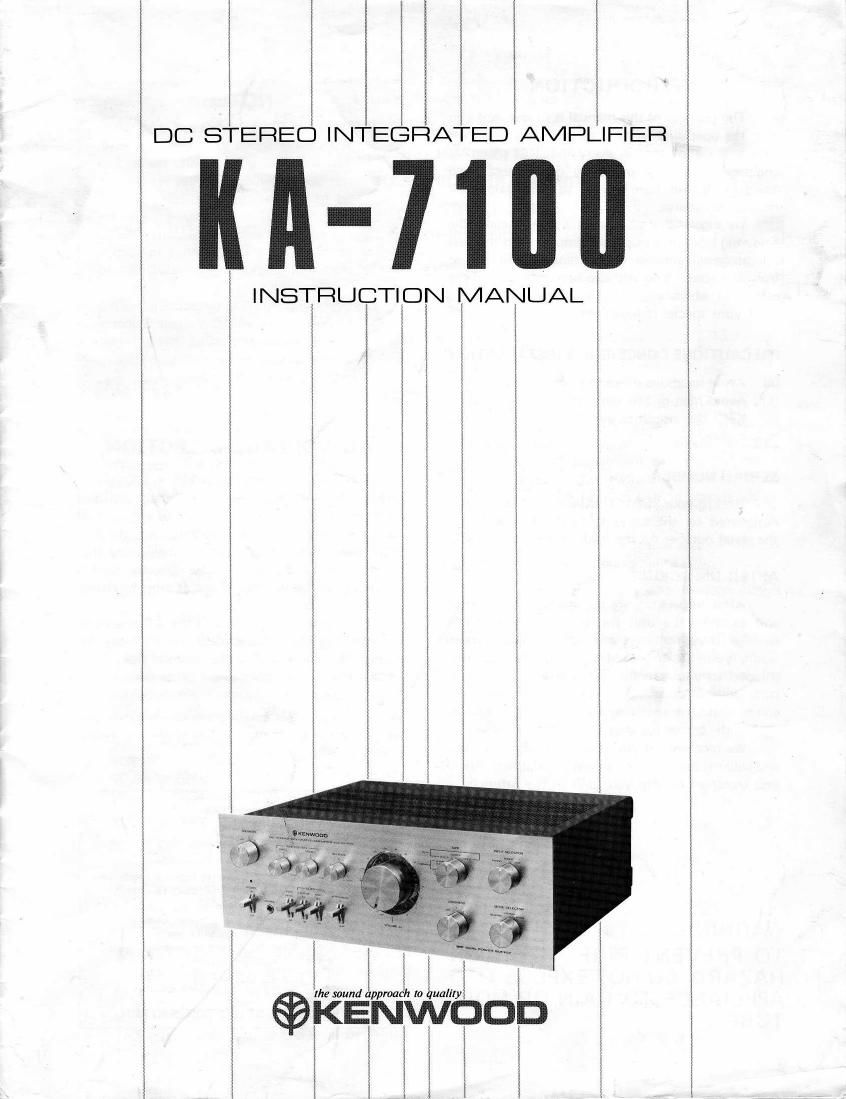

Page 1

7100

INSTRUCTION MANUAL

Page 2

INTRODUCTION

The purpose of this manual is to acquaint you
with the operating features of your new amplifier.
You will notice that in every detail of planning,
engineering, styling, operating convenience, and
adaptability, we have sought to anticipate your
needs and desires.

We suggest that you read this manual carefully.
Knowing how to set up your amplifier, to the best
advantage will enhance your listening pleasure right
from the start. You will also become aware of the
ease with which you can adjust your amplifier to
meet your special requirements.

PRECAUTIONS CONCERNING INSTALLATION

(a) Avoid locations subject to direct sunlight.

(b) Avoid high or low temperature extremes.

(c) Keep the amplifier away from heat radiating
source.

SERIAL NUMBER

Record your SERIAL NUMBER on the spaces
designated on the warranty card. You will find
the serial number on the back of the unit.

AFTER UNPACKING

After unpacking, we recommend you inspect
and examine the unit for any possible shipping
damage. If your unit is damaged or fails to operate,
notify your dealer immediately. If your unit was
shipped to you directly, notify the shipping com
pany without delay. Only the consignee (the per-
son or company receiving the unit) can file a claim
against the carrier for shipping damage.

We recommend you retain the original carton
and packing materials to prevent any damage should
you transport or ship your unit in the future.

WARNING:

TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOIS-
TURE.

2 kAvwoM

NOTES-L :
1. Units shipped to the U i A

ADA are designed to b
120 Volts AConly. ,

ed to be operated wit
only. Therefore: ftheg ab
not equippedwith ani. ., I
tor Switch ~so allreferenc
switch thrdughout this" I;
be disregarded, f _' ,
2. Units shipped mall at
equipped with an AC,
Switch on the rear panel
at the factory to the voltag
available in the'destination

AC VOLTAGE SELECTION

The KA-7100 operates on 110 ~ 120 volt or
220 ~ 240 volt AC. The AC Voltage Selector
Switch on the rear panel is set to the voltage that
prevails in the area to which the amplifiers are shipv
ped. Before operating this unit, make sure that
the position of the AC Voltage Selector Switch
matches your line voltage. If not, it must be changA
ed to the proper setting.

To change, first disconnect the AC line cord.
Then remove the stopper plate and slide the AC
Voltage Selector Switch to the opposite side. Then
reattach the stopper plate to the other side.

Note:

Our warranty does not cover damage caused by excessive
line voltage due to improper setting of the AC Voltage
Selector Switch.

Stopper Plate

ACIlO-IZOV 4 b Ac220-24ov
(Actzov~ 4 bAczzov .)

ACIIOIZOV{ >Aczzo-240v
(AC120V~ {>A0220V~)

I. Remove screw and stopper plate.

2. Switch lever to opposite side.

3. Lock lever by attaching stopper
plate to opposite screw.

( ) is European type,

AC VOLTAGE SELECTOR SWITCH
