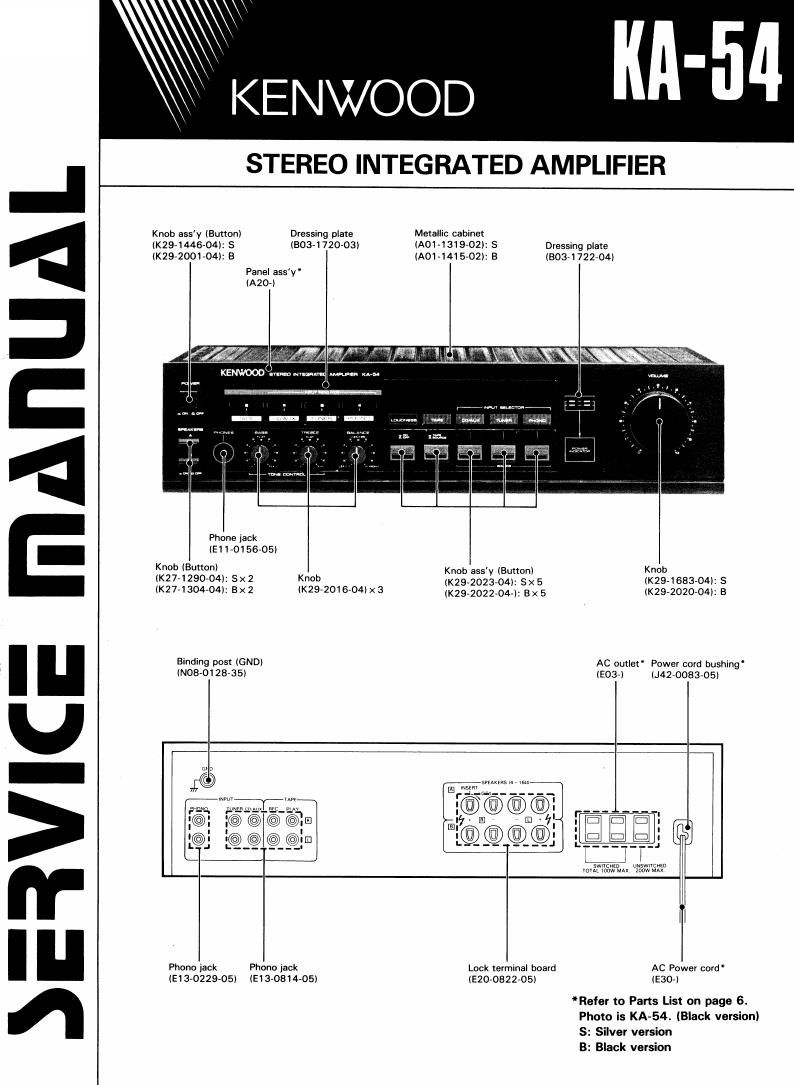

Kenwood KA 54 Service Manual
This is the 14 pages manual for Kenwood KA 54 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Kenwood KA 54 Service Manual (Ocr-read)
Page 2
MEI
DISASSEMBLY FOR REPAIR
1. Remove the metallic case and remove 6 screws retaining
the panel assembly ( 0 l.
2. Remove the panel assembly and remove 2 screws at the
ends of the sub panel ( 0 l. Unwrap the ground leads
from the chassis l 9 l.
(Note) Winn checking the pi: board. those land: should be grounded.
3 Remove 3 screws at phono jacks and 2 screws at
speaker terminal ( o, 9).
4. Remove 4 screws retaining the mounting hardware from
the bottom (0 l.
5 Turn the sub panel with the pc board as shown by the ar»
row and put the rear side of the pc board on the rear
panel 10 ). Now components on the pc board can be
replaced.
6. For replacement of the power transistors, use a hex,
wrench (W05-0022v00) (Q ),
