Kenwood GEQ 300 Service Manual

This is the 13 pages manual for Kenwood GEQ 300 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 13
Kenwood GEQ 300 Service Manual

Extracted text from Kenwood GEQ 300 Service Manual (Ocr-read)

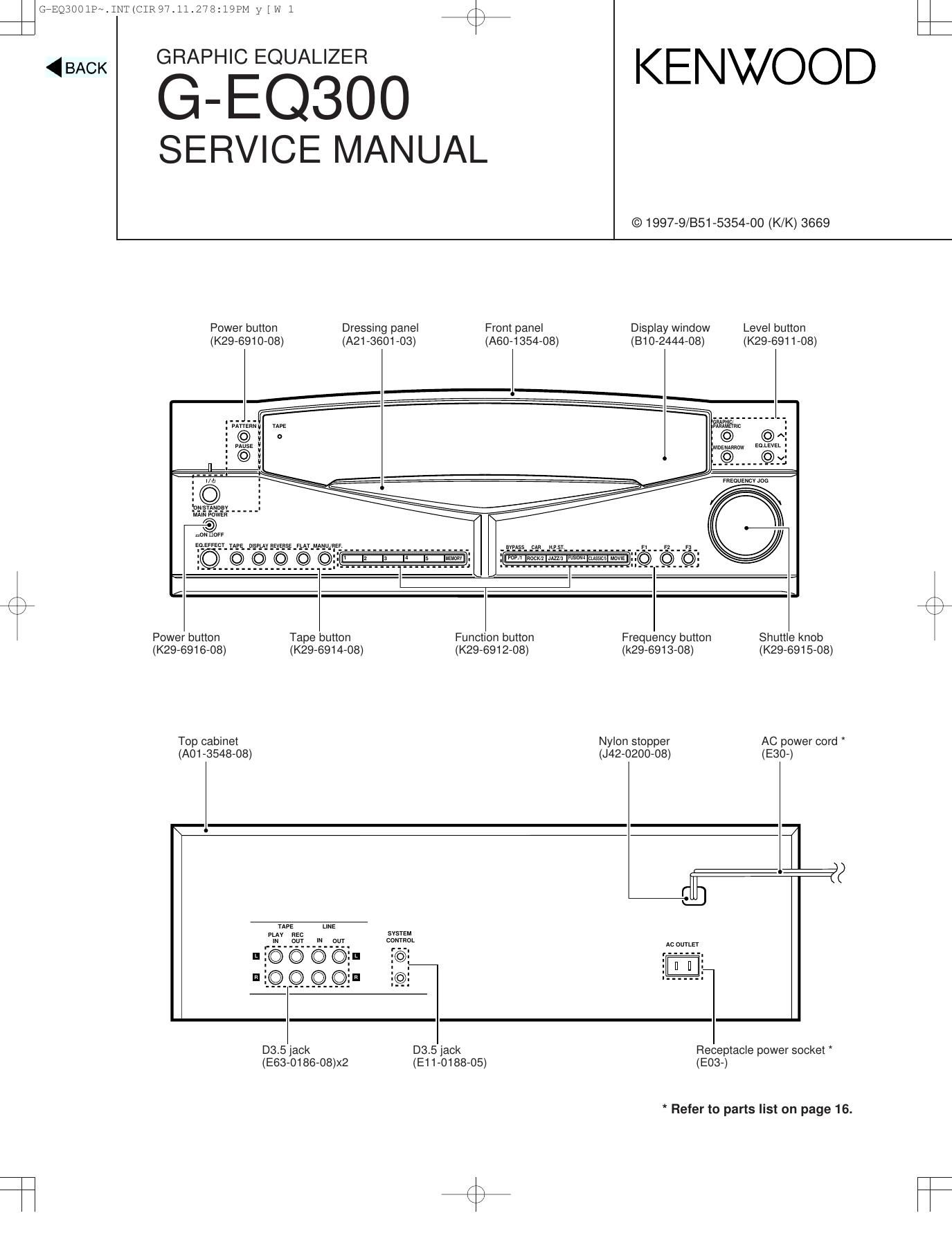

Page 1

GEEQ3OOIE~.LNT(C1R 9'/.ll.2'/8:19EM y l W l /\
\, /

4 BACK

GRAPHIC EQUALIZER KEN V OOD
G-EQSOO W

SERVICE MANUAL

© 1997-9/851-5354-00 (K/K) 3669

Power button Dressing panel From panel Display window Level button
(K29-6910-08) (A21-3601-03) (AGO-135408) (Bl 0-2444-08) (K29-6911-08)

'EEYHVEL .....
hm rowan

a-f;
Power button Tape button Function button Frequency button Shuttle knob
(K29-6916-08) (K29-6914-08) (K29-6912-08) (k29-6913-08) (K29-6915-08)
Top cabinet Nylon stopper AC power cord
(A01 -3548-08) (J42-0200-08) (E30-)

® k

ups uME

PLAY REC SVSYEM
r ............
'© © ©

D35 jack D35 jack Receptacle power socket "
(E63-0186-08)x2 (E11-0188-05) (E03-)

* Refer to parts list on page 16.

Page 2

/\

GiEQ300lP~.INT(CIR9'/.ll.2'78:19PM y [ W 2 \
\,7

CONTENTS / ACCESSORIES

Contents

CONTENTS / ACCESSORIES ................................... 2 EXPLODED VIEW ..................................................... 15
CONTROLS ...3 PARTS LIST ........................... 16
PC BOARD .. 5 SPECIFICATIONS ....Back cover
SCHEMATIC DIAGRAM ............................................. 9

Accessories

Audio cord (2) System control cord (1) AC plug adaptor(1)
(E30»2841»08) (E30-2733-05) (E40»9981»08)

w

0&4
@

1

In case of difficulty
What appears to be a malfunction may not always be serious. If your unit should not perform as expected. consult the table
below to see if the problem can be corrected before seeking help from your dealer or service representative.

Operation to reset

The microprocessor may fall into malfunction (impossibility to
operate erroneous display, etc.) when the power cord is
unplugged while power is ON or due to an external factor. In
this case, execute the following procedure to reset the micropro
cessor and return it to normal condition.

While holding the MEMORY key depressed,
press the MAIN POWER switch to on.

- Please note that resetting the microprocessor
clears the contents stored in, it returns the micro
processor to the condition when it left the factory.
