Kenwood C 929 Service Manual

Page 1

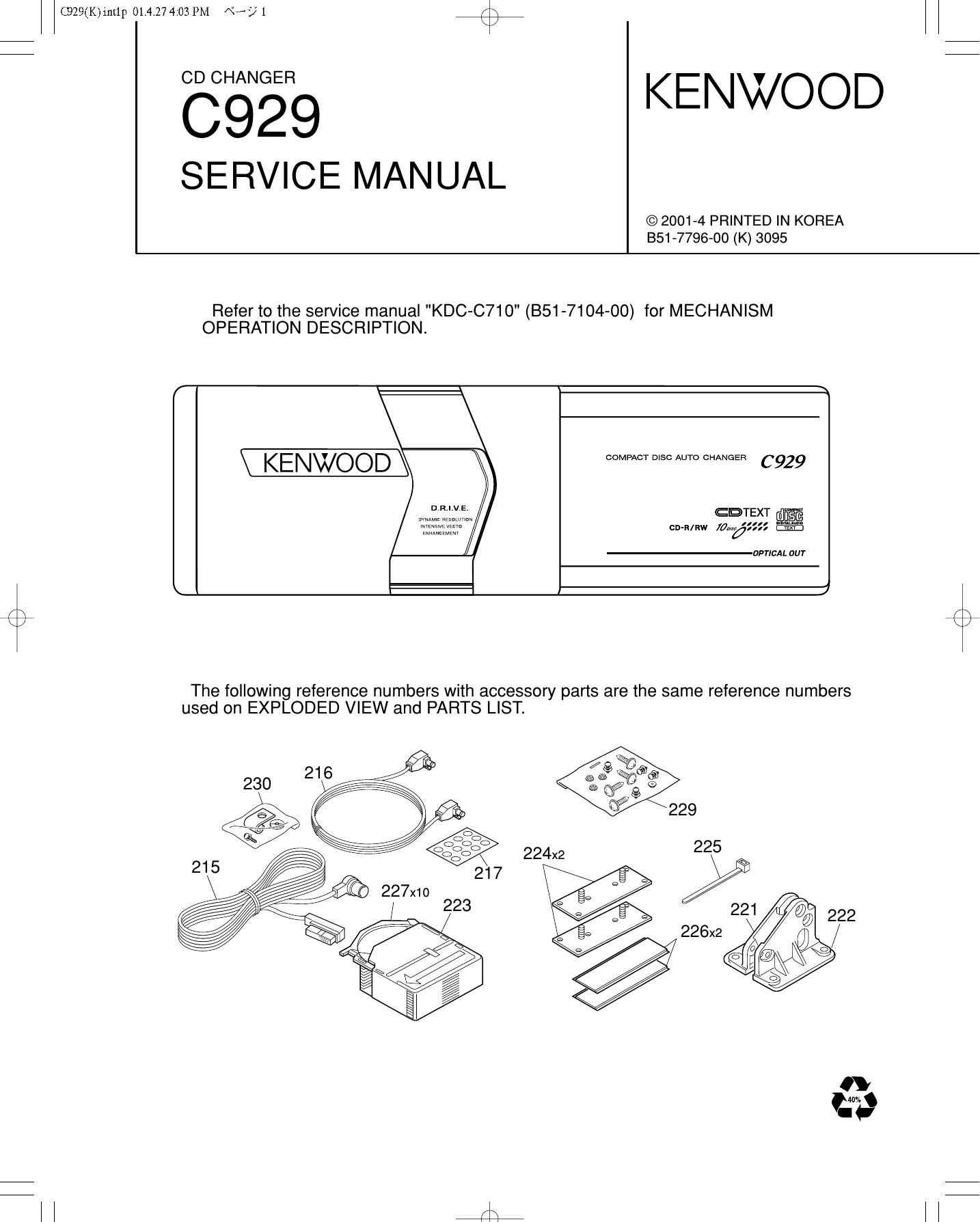

C929(K)int1p 01.4.274:03 PM \°-/ 1 /\

C5339 KENWOOD
SERVICE MANUAL

© 2001-4 PRINTED IN KOREA
351-7796-00 (K) 3095

Refer to the service manual "KDC-C710" (BS1 -7104-00) for MECHANISM
OPERATION DESCRIPTION.

KENWOOD COMPACT DISC AUTO CHANGER cg29

CETEXT @figfi

CD-R/RW law 5555

OPTICAL our

r\
\/

The following reference numbers with accessory parts are the same reference numbers
used on EXPLODED VIEW and PARTS LIST.

Page 18

C929(K)inttp 01.4.274:03 PM Ne? 22

r\
\/

0929

SPECIFICATIONS

Laser Diode GaAIAs (7t=780nm)
Digital Filter (D/A) 8 Times Over Sampling
D/A Converter 1 Bit
Spindle Speed 200rpm-500rpm (CLV)
CD Wow & Flutter Below Mesurable Limit
Frequency Response 5Hz-20KHz (i1dB)
Total Harmonic Distortion 0.005% (1 KHz)
S/N Ratio 110dB (1KHz)
Dinamic Range 96dB
Channel Separation 96dB
Operating Voltage (11V-16V allowable) 14.4V
Current Consumption 0.8A
Installation Size (Width) 250mm
GENERAL (Height) 80mm
(Depth) 176mm
Weight 2.0Kg
