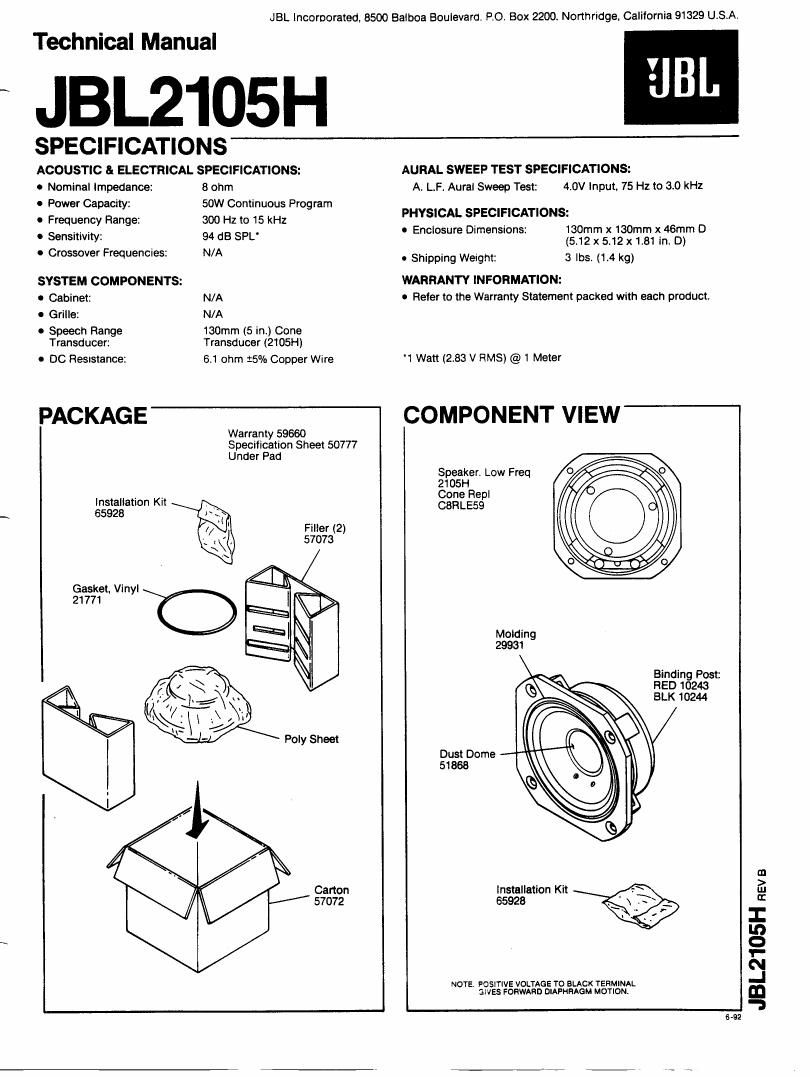

Page 1

JBL Incorporated, 8500 Balboa Boulevard. PO. Box 2200. Nortnndge. California 91329 U.S.A.

Technical Manual

JBL2105H

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

0 Nominal Impedance: 8 ohm

0 Power Capacity: 50W Continuous Program

0 Frequency Range: 300 Hz to 15 kHz

0 Sensitivity: 94 dB SPL'

0 Crossover Frequencies: N/A

SYSTEM COMPONENTS:

0 Cabinet: N/A

0 Grille: N/A

0 Speech Range 130mm (5 in.) Cone
Transducer: Transducer (2105H)

I DC Resistance: 6.1 ohm 25% Copper Wire

PAC KAG E

Warranty 59660
Specification Sheet 50777
Under Pad

Q

installation Kit

Filler (2)
57073


Gasket. Vinyl
21771

Poly Sheet

Carton
57072

AUHAL SWEEP TEST SPECIFICATIONS:
A. L.F. Aural Sweep Test: 40V Input. 75 Hz to 3.0 kHz

PHYSICAL SPECIFICATIONS:

0 Enclosure Dimensions: 130mm x 130mm x 46mm D
(5.12 x 5.12 x131 in. D)

0 Shipping Weight: 3 lbs. (1.4 kg)

WARRANTY INFORMATION:
I Refer to the Warranty Statement packed with each product.

'1 Watt (2.83 V RMS) @1 Meter

COMPONENT VIEW

Speaker. Low Freq


2105H
Cone Repl
CBRLESQ
Molding
29931
Binding Post:
RED 10243
BLK 10244
Dust Dome
51868

Installation Kit
65928

NOTE. POSITIVE VOLTAGE TO BLACK TERMINAL
GIVES FORWARD DIAPHRAGM MOTION.

6'92

JBL2105H Reva
