Integra cdc 3 4 brochure
This is the 2 pages manual for integra cdc 3 4 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from integra cdc 3 4 brochure (Ocr-read)

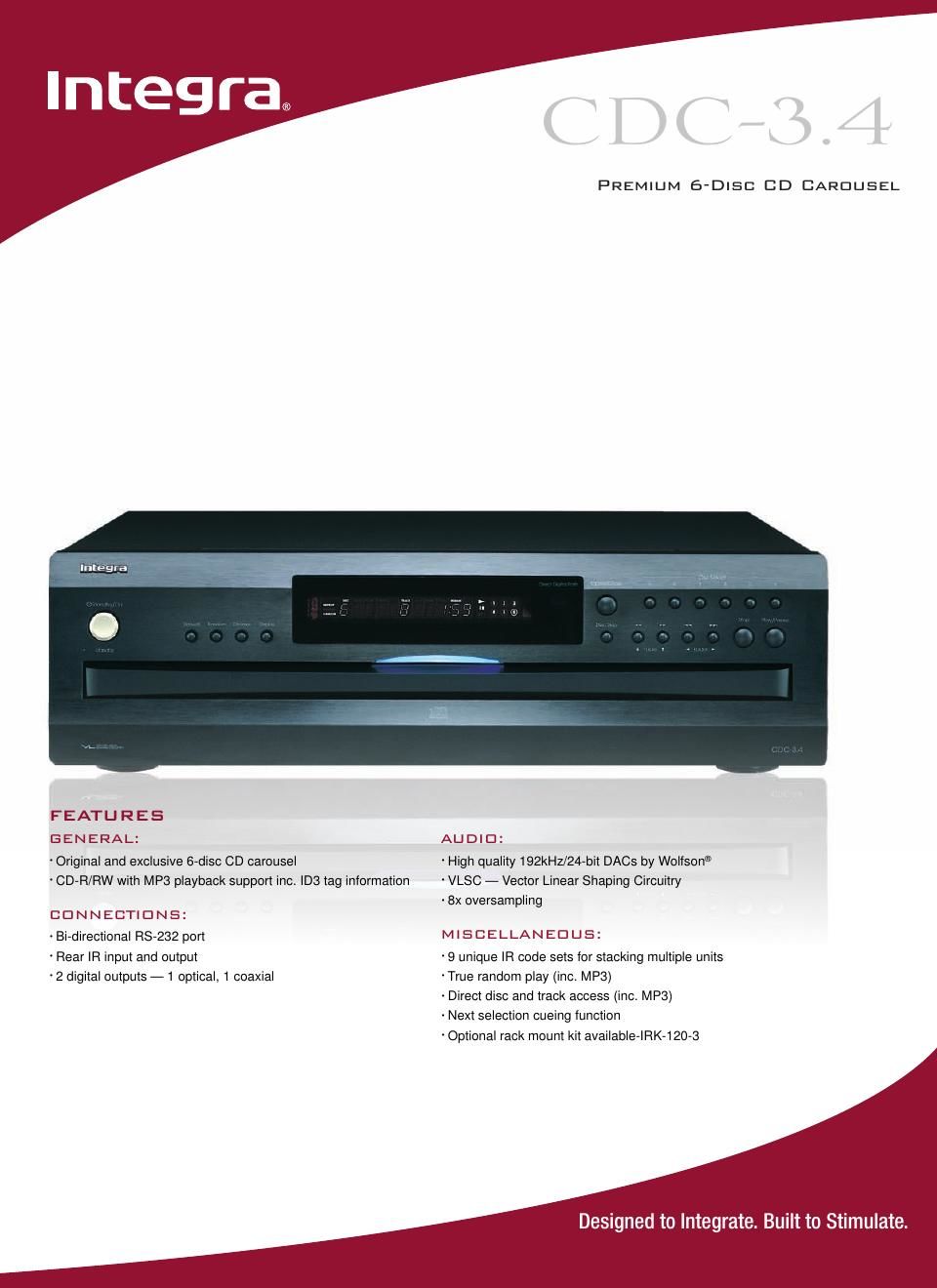

Page 1
SPECIFICATIONS AUDIO PERFORMANCE Error correction system: Cross Interleave Reed Solomon code D/A converter: Multi-bit Wolfson D/A Converter – 192 kHz/24-Bit (x2) Digital filter: 128 times oversampling Frequency response: 5 Hz - 20 kHz Harmonic distortion: 0.005% (at 1 kHz) Dynamic range: 96 dB Signal-to-noise ratio: 98 dB Channel separation: 92 dB (at 1 kHz) Wow and flutter: Below threshold of measurability AUDIO OUTPUTS Optical: -22.5 dBm optical connector x 1 Coaxial: 0.5 V(p-p), 75Ω, RCAx 1 Analog: 2.0 V RMS, 470Ω, RCAx 1 GENERAL Power supply: AC 120 V, 60 Hz Power consumption: 10 W Dimensions (W x H x D): 17-1/8 x 5-3/16 x 17-3/16 435 x 131 x 436 mm Weight: 15.2 lbs. (6.9 kg) Optional mounting kit: IRK-120-3 U dimension: 4U Premium 6-Disc CD Carousel CDC-3. 4 Designed to Integrate. Built to Stimulate. www.integrahometheater.com Due to a policy of continuous product improvement, Integra reserves the right to change specifications and appearance without notice. 2/2008 Printed in the USA CDC-3.4
