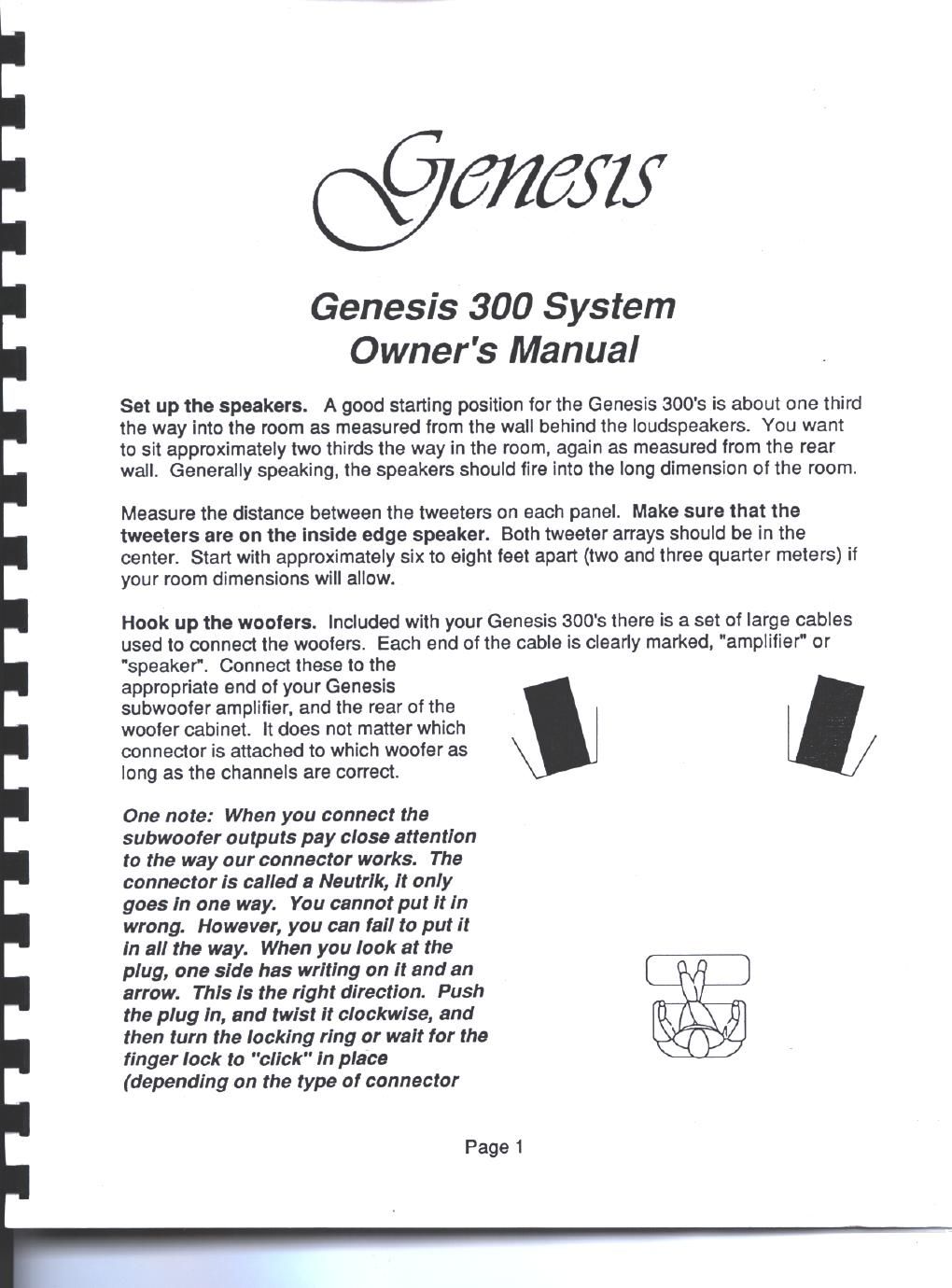

Genesis 300 System
Owner's Manual

Set up the speakers. A good starting position tor the Genesis 300's is about one third
the way into the room as measured from the wall behind the loudspeakers. You want
to sit approximately two thirds the way in the room. again as measured from the rear
wall. Generally speaking. the speakers should tire into the long dimension of the room.

Measure the distance between the tweeters on each panel. Make sure that the
tweeters are on the inside edge speaker. Both tweeter arrays should be in the
center. Start with approximately six to eight ieet apart (two and three quarter meters) it
your room dimensions will allow.

Hook up the woofers. Included with your Genesis 300's there is a set of large cables
used to connect the woofers. Each and of the cable is clearly marked, "amplifier" or
"speaker". Connect these to the

appropriate end of your Genesis

subwoofer amplifier, and the rear of the

woofer cabinet. it does not matter which

connector is attached to which woofer as

long as the channels are correct.

One note: When you connect the
subwooter outputs pay close attention
to the way our connector works. The
connector is called a Neutrlk, It only
goes In one way. You cannot put It In
wrong. However, you can fall to put it
In all the way. When you look at the
plug, one side has wrltlng on It and an
arrow. This Is the fight direction. Push
the plug In, and twist lt clockwise, and
then turn the locking ring or wait for the
finger lock to "click" in place
(depending on the type of connector
