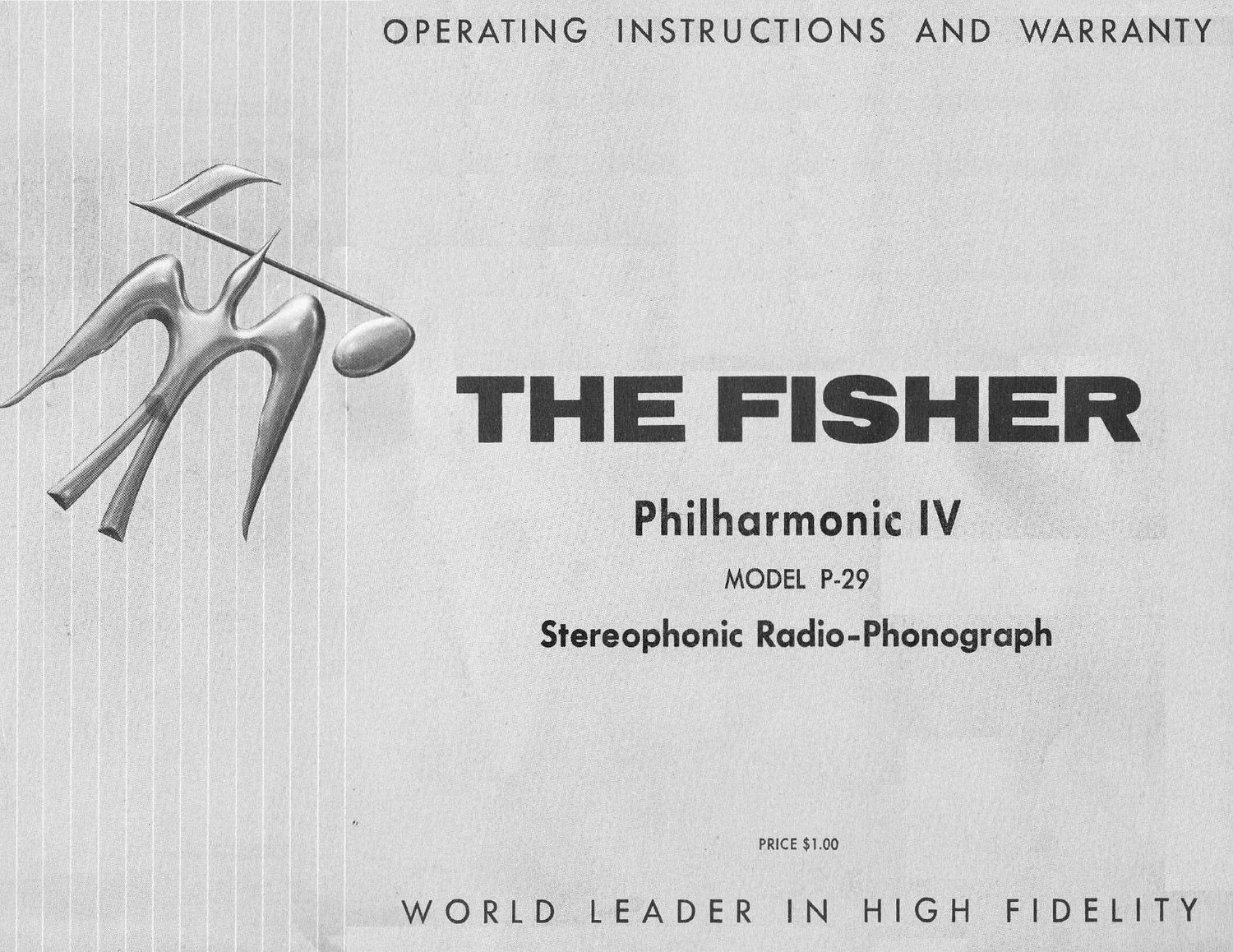

Fisher PHILHARMONIC 4 P 29 Owners Manual
This is the 12 pages manual for Fisher PHILHARMONIC 4 P 29 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher PHILHARMONIC 4 P 29 Owners Manual (Ocr-read)
Page 1
!- \-\ L;('II('KAIL'I-AIIL'II5: \ -_, II /rrH your purchase of a FISHER instrument you have com- Remember always that we want this equipment to give you the q YV pleted a chain of events that began many months ago, in our performance of which it is capable. Should you at any time needin- research laboratories. For it is there that the basic concept of the our assistance toward that objective, please write me personally. equipment you have just acquired came into being-its appearance, its functions, its quality of performance, its convenience of use. AN IMPORTANT SUGGESTION But the end step-your purchase-is merely a beginning. A door Many hours have been rp".tfby our engineers and technical writers has now opened, for you and your family, on virtually unlimited to create this instruction book for your guidance and enjoyment. years of musical enjoyment. Recognizing that one of ihe keys to If you want ttre most out of your FISHER, there is only one way pleasurable ownership is reliability, we have designed this instru- to obtain it. with the equipment before you, please read this book- ment to give long and trouble-free service. In fact, instruments we let carefully' It will be time well spent! made over twenty- five years ago are still in use today. A /hld,.y F*r"z Founder and president FISHER FIRSTS-Milestones in the History of High Fidelity Reproduction.lt ri r! ri il 1937 First high-fideliiy sound systems featuring a beam-power amplifier, inverse feedback, acoustic speaker compartments (infinite baffle and bass reflex) and magnetic cartfldges. 1937 First exclusively high fidelity TRF tuner, fea- turing broad-tuning 20,000 cycle fidelity. 1937 First two-unit high {idelity system with sep- arate sDeaker enclosure. 1938 First coaxial speaker system. 1938 First high fidelity tuner wlth amplified AVC. 1939 First 3-Way Speaker in a high fidelity system. 1939 First Center-of-Channel Tuning indicator. 1945 First Preamplifier-Equalizer with selective pho- nograph equalization. 1948 First Dynamic Range Expander with feedback. 1949 First FM-A|\4 Tuner with variable AFC. 1952 First 50-Watt, all-triode amplifier. 1952 First self-oowered Master Audio Control. 1953 First selt-powered, electronic sharp-cut-off fil- ter system for high fidelity use. 1953 First Universal Horn-Type Speaker Enclosure for any room location and any speaker. 1953 First FM-AM tuner with aCascode Front End. 1954 First low-cost electronic Mixer-Fader. 1954 First moderately-priced, protessional FM Tuner with TWo meters. 1955 First Peak Power Indicator in high fidelity. 1955 First Master Audio Control Chassis with five- position mixing facilities.1955 First correctly equalized, direct tape-head mas- ter audio controls and self-powered preamplifier. 1956 First to use Power Monitor in a home amplifier. 1956 First All-Transistorized PreamDlifier-Eoualizer. 1956 First dual dynamic limiters in an FM tuner for nome use. 1956 First Per{ormance Monitor in a high quality amplifier for home use. '1956 First FM-AlVl tuner with TWo meters. 1956 First complete graphic response curve indica- tor for bass and treble. 1957 First Golden Cascode FM Tuner. 1957 First MicroRay Tuning lndicator. 1958 First Stereophonic Radio-Phonograph with Mag- netic Stereo Cartridge. 195S First high-quality Stereo Remote Control System. 1959 First complete Stereophonic FM-AM Receiver (FM-AM tuner, audio control, 4o-watt amplifier). 1959 First high-compliance plus high-efficiency free- piston speaker system. 1960 First to use MicroRay for FM tuning and as a Recording Audio Level Indicator. 1960 First complete stereo FM'AM receiver with 60- watt power amplifier and new 7591 output tubes. 1960 Smithsonian Institution, Washington, D.C. accepts for its collection America's first com- mercially manufactured high fidelity radi0. phonograph, made by Avery Fisher in 1937.| 960 First reverberation device, for use in high fidelty equipment -The Fisher Dynamic Spacexpander. First stereo tuner with MicroTune. First FlVl tuner with six lF stages. First FM tuner with five limiters. First front panel antenna selector switch,72- 300 ohm, Local-Distant positions. First Multiplex units with STEREo BEACoN and automatic switching, mono to stereo. First complete receivers with Multiplex. First FM-Stere0-Multiplex tuners with STERE0 BEAIV]. First loudspeaker system with frameless wooler cone, eliminating all parasitic resonance. First internal switching system to permit im- medjate tape playback with use of all controls and switches. First simplified - operation Control - Ampliiier, with infrequently used controls behind tront- panel cover, yet immediately accessible. First loudspeaker with eddy-current-damped vorce c0il. First bass speaker with combined serrated- aluminum and {iber cone. First Fl\4 Tuner Kit with seDarate d'Arsonval meter for tuning and sepaiate cathode ray stereo broadcast indicator (STERE0 BEAM). First Stereophonic FM Tuner with TUNE-0- MATIC Motor Tuning. First Supersonic Wireless Remote Control in a high fidelity component. 1 960 1 960 1960 1960 1 961 1 961 1 961 1 961 1 961 1 952 1 962 1 952 1 962 1 962 1962 O1962 FTsHER RADIo coRPoRATIoN
Page 2
,F ITIHE MAGNTFIcENcE of old-world cabinet craftsmanship has been I combined with the latest products of advanced electronic engineer- ing to create the new FISHER Philharmonic -a musical instrument that meets the most exacting criteria. Each section in the Philharmonic has been designed to meet the laboratory standards that distinguish all FISHER components. The unusually sensitive tuner can be used for AM and FM, and for multiplexed FM stereo reception when the optional plug-in adaptor is installed. Six controls enable you to select any program source instantly and to adjust volume and tonal char- acteristics to your taste. The renowned Garrard record changer and diamond stylus cartridge convey faithfully every musical nuance of monophonic or stereophonic records. Special connections are providedTHE FISHER PHITHAR'NONIC IV MODET P-29 Stereophon ic Rqdio-Phonogroph for the FISHER WS-l Wide Surround speakers. Twenty watts of music power, free of all audible distortion, are supplied by a dual-channel stereophonic power amplifier which reproduces a complex orchestral passage as easily as the delicate tones of an oboe, Two acoustically- balanced three-way speaker systems recreate the dynamics and spacious- ness of the modern orchestra as only stereophonic sound reproduction makes possible. Flawless circuitry, the use of costly, carefully selected materials, and unhurried manufacture - essential constituents'of quality which are too often lost in mass production - all of these will contribute to years of trouble-free operation and to your greater listening pleasure. These are the attributes which have, {or over twenty-five years, created the world-wide FISHER reDutation.
