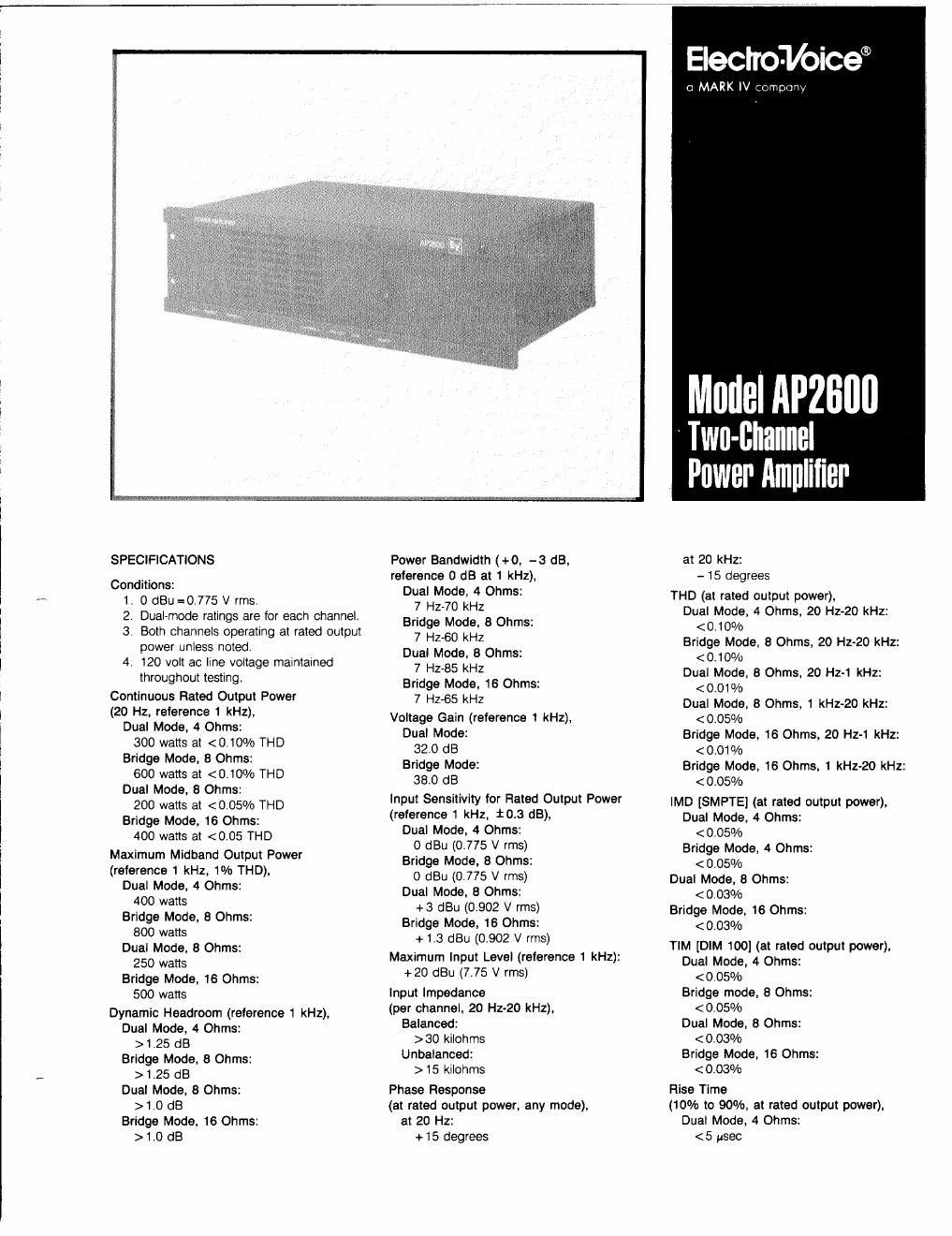

Page: 1 / 27
electro voice ap 2600 pwramp

Extracted text from electro voice ap 2600 pwramp (Ocr-read)


Page 2

Bridge Mode. 8 Ohms:
< 6 psec
Dual Mode. 3 Ohms:
<4.5 psec
Bridge Mode. 16 Ohms:
< 5.5 psec
Slew Rate (at rated output power),
Dual Mode, 4 Ohms:
>20 V/ysec
Bridge Mode. 8 Ohms:
>30 Vlusec
Dual Mode, 8 Ohms:
>30 V/usec
Bridge Mode. 16 Ohms:
>60 V/usec
Damping Factor,
Dual Mode. 4 Ohms,
20 Hz-1 kHz: >100
20 kHz: >40
Bridge Mode, 8 Ohms,
20 Hz-1 kHZ >200
20 kHz: >50
Dual Mode. 8 Ohms.
20 Hz-1 kHz: >200
20 kHz: >80
Bridge Mode. 16 Ohms,
20 Hz-1 kHz: >400
20 kHz: >100
Channel Separation (below rated output
power. single channel operating):
>80 dB at 1 kHz
Noise (below rated output power,
A weighted, any mode):
> 100 dB
Amplifier Protection:
Excessive output voltage
Shorted loads
Excessive phase shift
FiF interference
Over temperature
Load Protection:
Startup/shutdown transtents
dc fault
lnfrasonic signals
Low ac line voltage
Cooling,
Heatsink:
Thermally equalized 3/.5-inch aluminum,
black anodized heatsink
Dual-Speed Fan:
106 CFM (high speed). minimum lite
rating of 20,000 hours at 72 degrees C.
or 43.500 hours at 25 degrees C
ambient temperature
Output Topology:
True complementary symmelry
Output Type.
Dual Mode: Unbalanced, each channel
Bridge Mode: Balanced
Output Devices:
Sixteen 250-watt, 250~Vl16-A.
TO~3 transistors
Controls and Switches:
Input level controls (two). rear
Mode switch. rear
Power switch, front

Front-Panel Indicators:
Power LED
Clip LED's (two)
Protect LEDs (two)
Connections.
Input:
6-terminal barrier strip
Female XLH-type connectors (two)
Output:
4-terminal barrier strip
Power:
8-loot, 3-wnre. 16-GA power cord
with NEMA 5-15 plug
Power Flequirements:
100, 120. 200. 220, 240 V ac.
50/60 Hz, 900 watts
Power Consumption/Heat Produced (both
channels operating dual mode with 1 kHz
input signal at stated output power into 4
ohms. or bridge mode into 8 ohms).
Idle:
130 watts/0.442 kBTU/hr
V: Power:
900 watts/2.380 kBTU/hr
V2 Power:
1060 Watts/2.584 kBTU/hr
Rated Power:
1430 watts/2.822 kBTU/hr
Maximum Midband Power:
960 watts/1,564 kBTU/hr
Operating Temperature Range:
Up to 60 degrees C
(140 degrees F) ambient
Dimensions:
13.3 cm (5% in.) H x 48.2 cm (19 in.) W x
32.4 cm (12% In.) D
Color: Black
Enclosure:
Rack mount chassis
16-GA steel bottom/Sides
Aslnch aluminum top/back
JAs-inch 6061-T6 aluminum front panel
Shipping Weight:
21.8 kg (48 lb)
Net Weight:
17 7 kg (39 lb)
Optional Accessories:
The octal sockets permit a variety of plug-
in accessories to be used with the amplifiert
The options are listed below.
APM-1 Bridging lnput transformer
APM-2 Bridging lnput transformer with pad
APL-125 low pass module. 125 Hz
APL-SOO low pass module. 500 Hz
APLVBOO low pass module, 800 Hz
APL-1250 low pass module. 1250 Hz
APH-125 high pass module. 125 Hz
APH7315 high pass module. 315 Hz
APH-SOO high pass module, 500 Hz
APH-BOO high pass module. 800 Hz
APH-1250 high pass module, 1250 Hz
APX crossover module. 24 dB/octave.
freq, selectable 50 H2710 kHz
Three output transformers for line
operation are available
TRGOO 600-watt 70-volt line transformer
TR300 3007watt 70-volt line transformer
AT300 sou-wan 70-volt line transformer

INSTALLATION

Unpacking

Upon receipt of the unit. inspect the shipping
carton for pos5ible damage during tranSit. If
damage is found. notify the transportation
company immediately. Should damage occur
during shipping, it is the responsibility of the
consignee lo initiate a claim With the carrier

... CAUTION ....
No user serviceable parts inside.
Hazardous voltage and currents may be
encountered within the chassis. The
service information contained within this
document is for use only by ElectroVoice.
Inc. authorized warranty stations and
qualified service personnel. To avoid
electric shock. do not perform any servio
ing unless you are qualified to do so.

DESCRIPTION

As the level of sophistication in power
amplifier deSIgns increases, two things
typically result: increased cost and reduced
reliability, The EV AP2600 tworchannel
power amplifier utilizes the best proven
concepts to provide an ultra reliable amplifier
With Virtually unmatched performance
characteristics. It achieves this success
Without increased complexity or cost, making
it a real value,

Each channel delivers 200 watts of con-
tinuous average power into 8 ohms or 300
watts into 4 ohms over full audio frequency
range in the bridge mode. the amplifier can
deliver more than 600 watts at less than
0.10% THD.

Sixteen metal output tranSistors are utilized
for a total deuce power dis5ipatlon of 4.000
watts A dualspeed fan is lncorporated as
an added reliability measure for the most
thermally stressmg situations. The masswe
3/..;-inch heatsink is speCIaIIy engineered to
minimize thermal gradients meaning that all
of the tranSistors Will operate at approximate-
ly the same temperature As a result. the
amplifier runs cooler than most, enabling it to
operate under more adverse enVironmentaI
conditions Without failure. In a typical fixed
installation. this means that the long-term
reliability is substantially increased.

Each channel is independently protected
against. . .

- Over temperature

0 Excesswe output voltage

- Excessive phase shift

- Radio-frequency interference

- Shorted loads

The load is protected from stamp/shutdown
transtents, infrasonic Signals, low ac line
voltage, and dc. When a problem is
detected, an output relay automatically
disconnects the load from the channel and
illuminates the Protect LED located on the
front panel.
