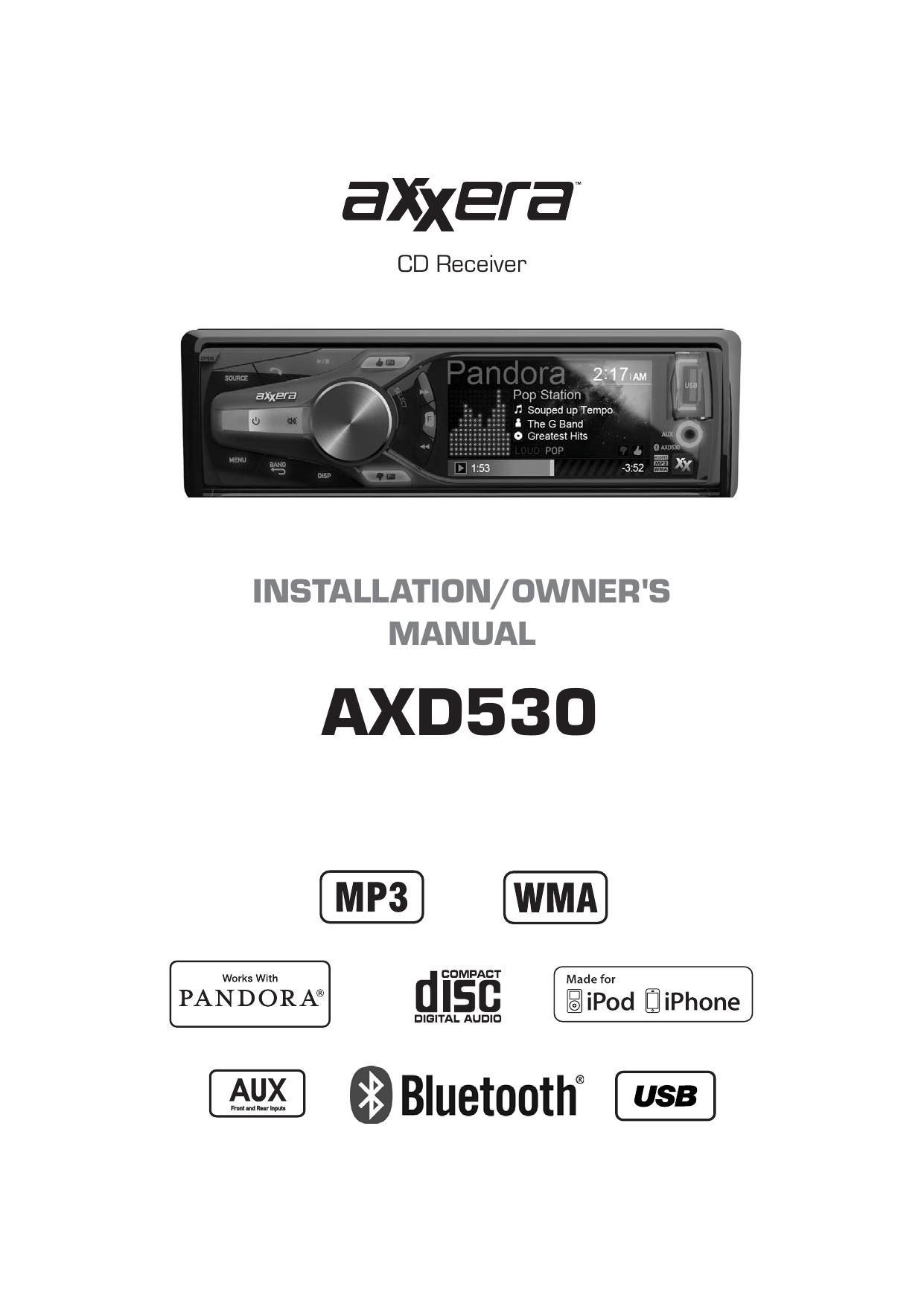

Dual Axxera AXD 530 Owners Manual
This is the 26 pages manual for Dual Axxera AXD 530 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Dual Axxera AXD 530 Owners Manual (Ocr-read)
Page 2
AXD530
Preparation
Please read entire manual before installation.
Before You Start
- Disconnect negative battery terminal. Consult a qualified technician for instructions.
- Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Getting Started
- Remove trim ring from unit.
- Remove 2 transit screws located on top of the unit.
- Insert the supplied keys into the slots as shown, and slide the unit out of the mounting
sleeve.
- Install mounting sleeve into opening, bending tabs to secure.
- Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
- Certain vehicles may require an installation kit and/or wiring harness adapter [sold
separately].
- Test for correct operation and slide into mounting sleeve to secure.
- Snap trim ring into place.
OPTIONAL REAR
REMOVAL MOUNTING SUPPORT
KEYS
HEAD UNIT
MOUNTING SLEEVE
TYPICAL DIN FRONT-LOAD MOUNTING METHOD
2
