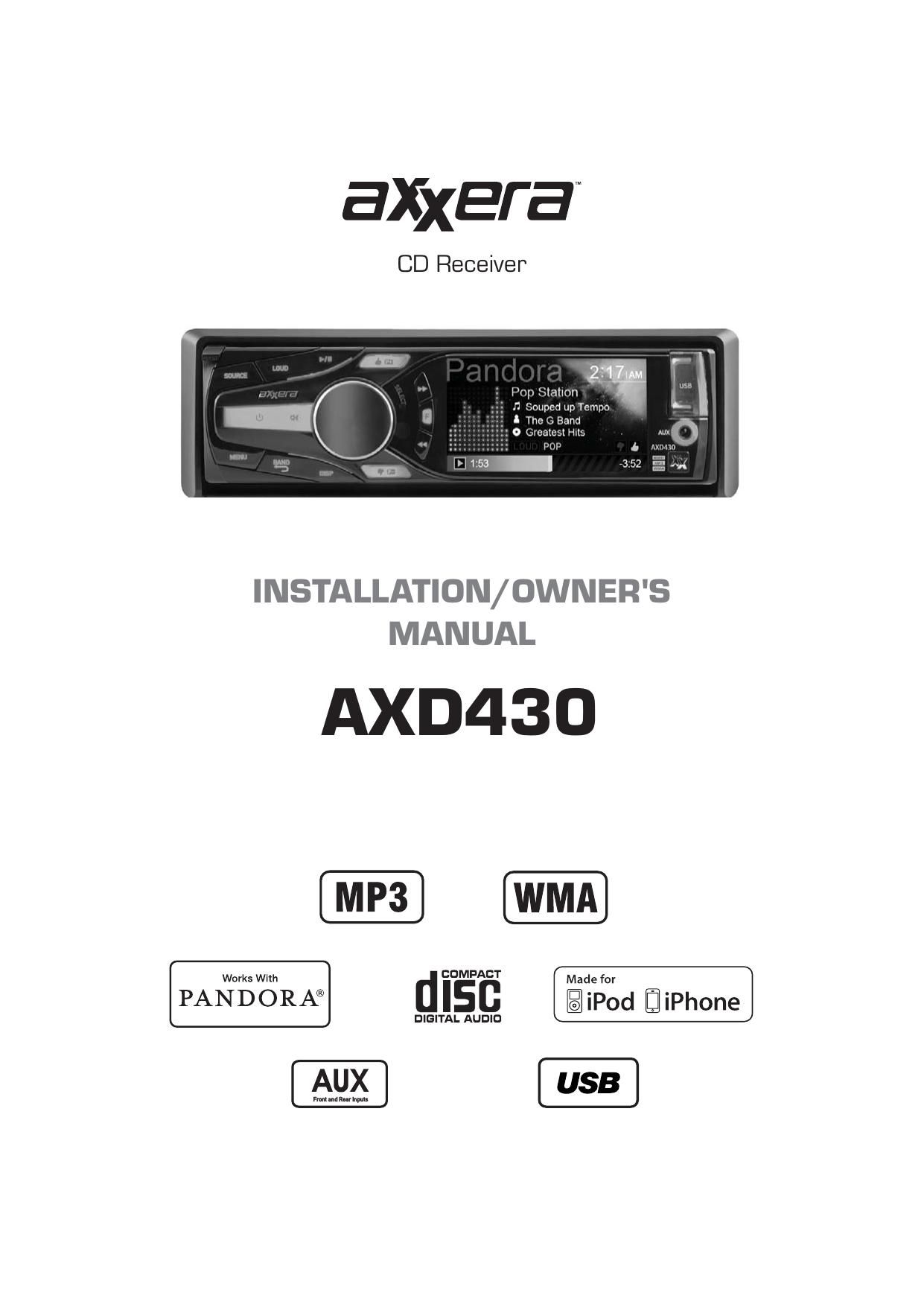

Dual Axxera AXD 430 Owners Manual

This is the 24 pages manual for Dual Axxera AXD 430 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 24
Dual Axxera AXD 430 Owners Manual

Extracted text from Dual Axxera AXD 430 Owners Manual (Ocr-read)


Page 4

AXD43O

Control Locations - Receiver

@ Play/ Pause
('5) Volume Knob/ Select [push]

® Preset Up / Thumbs Up
6) Tune/ Track Up

Function
@ use Port

5 Pop Station I?!
Soupcd up Tempo

I TheGBan d
2° G ealest Hits

Auxiliary Input

@ Tune/ Track Down
@ Preset Down / Thumbs Down

@ Display
Mute

@ Band / Go Back

Power
@ Menu

Page 7

AXD430

Setup Menu

General Operation

Press MENU to toggle through and select one of the
following setup menus: Audio, General, Gain and Screen.

1. Once the desired menu is displayed, rotate the volume
knob to scroll through the list of menu features.

2. Press SELECT to select a specific feature to adjust, then
rotate the volume knob left/right to adjust or activate
the desired feature.

3. Press SELECT to confirm and save the changes.

Audio Setup Menu

Menu Function Options

Equalization
Curves

Rotate the volume knob to cycle through the following equalization curves: Flat,
Pop, Jazz, Classic, Beat, Rock and User. Any manual adjustment to the Bass or
Treble settings are automatically saved as User.

Bass Level

Rotate the volume knob to adjust the bass level setting
[-6 minimum / +6 maximum].

Bass Frequency

Rotate the volume knob to select one of the following bass frequency settings:
BO Hz, BO Hz, 100 Hz or 200 Hz.

Middle Level

Rotate the volume knob to adjust the middle level setting
[-6 minimum / +6 maximum].

Middle
Frequency

Rotate the volume knob to select one of the following middle frequency settings:
500 Hz, 1 kHz, 15 kHz or 2.5 kHz.

Treble Level

Rotate the volume knob to adjust the treble level setting
[-6 minimum / +6 maximum].

Treble Rotate the volume knob to select one of the following treble frequency settings:
Frequency 10 KHz, 125 KHZ, l5 KHz or 17.5 KHz.
Balance Rotate the volume knob to adjust the balance setting.
[lE-L to 12-R; O represents equal balance].
Fader Rotate the volume knob to adjust the fader setting.
[12-F to lE-R; O represents equal balance]
Subwoofer Rotate the volume knob to turn subwoofer output ON or OFF

Subwoofer Level

Rotate the volume knob to adjust subwoofer level between O and 12.

Subwoofer
Frequency

Rotate the volume knob to select one of the following subwoofer center
frequency settings: Off, 80 Hz, 120 Hz and 160 Hz, "OffI represents a full range
subwoofer output.

Page 18

AXD43O

Pandora Operation

Requirements

USB Connection

Changing Stations

Shuffle

Control for Pandora requires:

0 An iPhone device with a reliable data connection, or an
iPod touch that is connected to wireless internet.

0 The Pandora App installed on the iPhone/iPod device.

- An active account with Pandora. Sign up at www.pandora.
com.

' The USB sync cable that came with your iPod/iPhone
device.

Connect an iPod touch or iPhone device [required sold
separately] to the USB port, using the USB sync cable
included with your iPhone device.

1. Press SELECT to display the Stations Menu.

2. Rotate the volume knob to choose to sort channels by
date or alphabetically.

3. Press SELECT to confirm, then turn the volume knob
to cycle through the list of stations.

4. Press SELECT when the desired station is highlighted,
and playback will begin.

Note: Stations must be created on your account prior to
connecting your iPod/iPhone device to the head unit.

Press SELECT to display the Stations Menu. Choose
"Shuffle from the stations menu to shuffle songs from all of
your stations.

18

Page 19

AXD43O

Pandora Operation

Skipping Tracks

Play/ Pause

Thumbs Up

Thumbs Down

Device Compatibility

Troubleshooting

Press >> to skip the current song.

Press >/ II to temporarily stop playback.
Press Fl II again to resume playback.

Press 5 to tell Pandora you like the current track. Pandora
will play more tracks with similar qualities.

Press f to tell Pandora you do not like the current track.
Pandora will not play the current track again, and will avoid
playing tracks with similar qualities.

Refer to www.0andora.com evervwhere mobile for devices
compatible with the Pandora mobile application.

Note: Pandora is an internet service, carrier and data
charges may apply.

IQ

Page 20

AXD43O

Limited One-Year Warranty

This warranty gives you specific legal rights.
You may also have other rights which vary
from state to state.

Dual Electronics Corp. warrants this
product to the original purchaser to be free
from defects in material and workmanship
for a period of one year from the date of
the original purchase.

Dual Electronics Corp. agrees, at our
option, during the warranty period, to repair
any defect in material or workmanship

or to furnish an equal new, renewed

or comparable product [whichever is
deemed necessary] in exchange without
charges, subject to verification of the
defect or malfunction and proof of the date
of purchase. Subsequent replacement
products are warranted for the balance of
the original warranty period.

Who is covered? This warranty is
extended to the original retail purchaser
for products purchased from an authorized
Dual dealer and used in the USA.

What is covered? This warranty covers
all defects in material and workmanship in
this product. The following are not covered:
software, installation/ removal costs,
damage resulting from accident, misuse,
abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow
instructions supplied with the product, or
damage occurring during return shipment
of the product. Specific license conditions
and copyright notices for the software can
be found via www.dualav.com.

What to do?

1. Before you call for service, check the
troubleshooting guide in your owners
manual. A slight adjustment of any
custom controls may save you a service
call.

2. If you require service during the
warranty period, you must carefully
pack the product [preferably in the
original package] and ship it by prepaid
transportation with a copy of the original
receipt from the retailer to an
authorized service center.

3. Please describe your problem in
writing and include your name, a return
UPS shipping address [PO Box not
acceptable], and a daytime phone
number with your shipment.

4. For more information and for the
location of the nearest authorized
service center please contact us by one
of the following methods:

- Call us toll free at l 866 882 5476
- E mail us at cs@dualav,com

Exclusion of Certain Damages: This
warranty is exclusive and in lieu of any
and all other warranties, expressed or
implied, including without limitation the
implied warranties of merchantability and
fitness for a particular purpose and any
obligation, liability, right, claim or remedy
in contract or tort, whether or not arising
from the companys negligence, actual or
imputed. No person or representative is
authorized to assume for the company
any other liability in connection with the
sale of this product. In no event shall the
company be liable for indirect, incidental or
consequential damages.

20
