Crest Audio LA 601 Schematic
This is the 9 pages manual for Crest Audio LA 601 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 9
Extracted text from Crest Audio LA 601 Schematic (Ocr-read)
Page 1

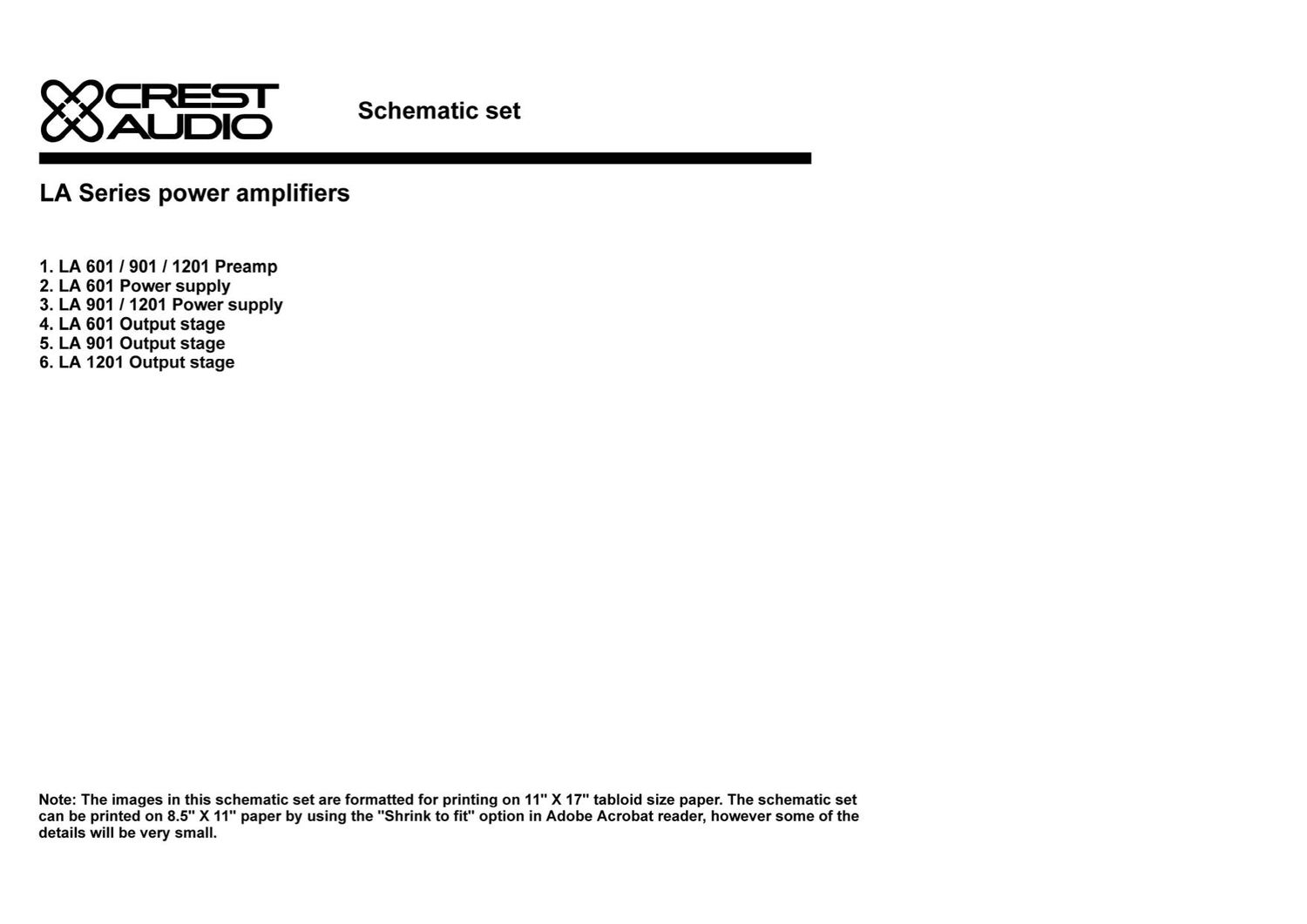

25% Schematic set
LA Series power amplifiers
LA 601 l901 /1201 Preamp
LA 601 Power supply
LA 901 l 1201 Power supply
LA 601 Output stage
LA 901 Output stage
L
1.
2.
3.
4.
5.
6. A 1201 Output stage
Note: The images in this schematic set are formatted for printing on 11" X 17" tabloid size paper. The schematic set
can be printed on 8.5" X 11" paper by using the "Shrink to fit" option in Adobe Acrobat reader, however some of the
details will be very small.
