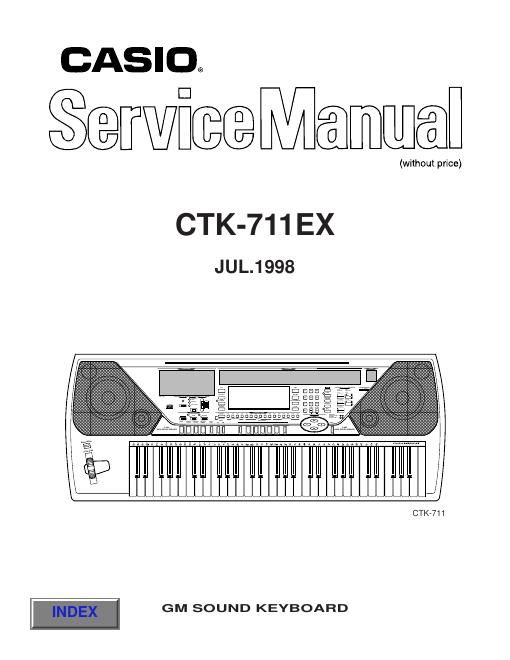

casio ctk 711ex service manual

Extracted text from casio ctk 711ex service manual (Ocr-read)


Page 1

Ñ 1 Ñ CONTENTS Safety Notice ----------------------------------------------------------------------------------------------- 2 Specifications ---------------------------------------------------------------------------------------------- 3 Important Operation ------------------------------------------------------------------------------------- 5 Block Diagram --------------------------------------------------------------------------------------------- 6 Circuit Description --------------------------------------------------------------------------------------- 7 Diagnostic Program ------------------------------------------------------------------------------------ 20 Major Waveforms --------------------------------------------------------------------------------------- 25 Printed Circuit Board ---------------------------------------------------------------------------------- 26 Exploded View ------------------------------------------------------------------------------------------- 28 Parts List --------------------------------------------------------------------------------------------------- 29 Schematic Diagrams ----------------------------------------------------------------------------------- 31

Page 2

Ñ 2 Ñ SAFETY NOTICE CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. ADVARSE! Lithiumbatteri. Eksplosionsfare ved fejlagtig handtering. Udskiftning ma kun ske med batteri af samme fabrikat og type. Lever det brugte batteri tilbage tili leverandoren. VAROITUS Paristo voiäjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. VARNING Felaktigt batteribyte kan medf fara för explosion. Använd där- för endast samma typ eller likvärdig typ enligt apparat- tillverkarens rekommendation. Kassera förbrukade batterier enligt tillverkarens anvisning. DENMARK: FINLAND: SWEDEN:
