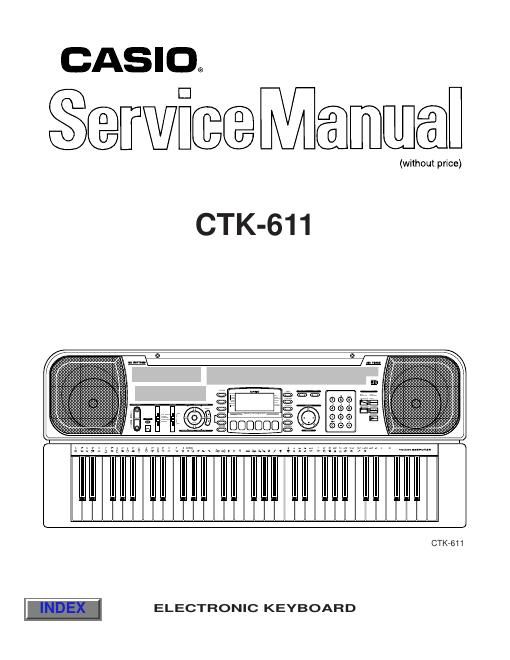

Casio ctk 611 service manual
This is the 25 pages manual for casio ctk 611 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ctk 611 service manual (Ocr-read)
Page 1
CONTENTS Specifications ................................................................................................................................... 1 Block Diagram .................................................................................................................................. 3 Circuit Description ............................................................................................................................ 4 Adjustment ..................................................................................................................................... 11 Major Waveforms ........................................................................................................................... 12 Printed Circuit Boards .................................................................................................................... 13 Schematic Diagrams ...................................................................................................................... 14 Exploded View ............................................................................................................................... 19 Parts List ........................................................................................................................................ 20
Page 2
Ñ 1 Ñ SPECIFICATIONS GENERAL Keyboard: 61 standard-size keys, 5 octaves (with touch response on/off) Drum pads: 6 Tones: 200 (128 General MIDI, 32 synthesized, 8 drum, 32 user); with layer and split Rhythm instrument tones: 51 Polyphony: 24 notes maximum (12 for certain tones) Digital effects: 3 reverb types (HALL, STAGE, ROOM) Auto accompaniment Rhythm patterns: 100 Tempo: Variable (216 steps, = 40 to 255) Chords: 3 fingering methods (CASIO CHORD, FINGERED, FULL RANGE CHORD) Rhythm controller: START/STOP, INTRO, NORMAL/NORMAL FILL-IN, VARIATION/VARI- ATION FILL-IN, SYNCHRO/ENDING Accomp volume: 0 to 127 (128 steps) Free session Number of patterns: 100 (auto-accompaniment in accordance with selected chord progres- sion) Memory function Songs: 2 Recording tracks: 6 (2 through 6 are melody tracks) Recording methods: Real-time, step Memory capacity: Approximately 5,200 notes (total for two songs) Edit function: Equipped Demo tunes: 2 Synthesizer function Parameters: PCM set, amp envelope set, attack rate, release rate, pitch envelope set, pitch, level, touch sense, pan Mixer function Channels: 16 Parameters: Program change number, volume, expression, pan, coarse tuning, fine tuning, on/off/solo MIDI: 16 multi-timbre receive, GM Level 1 standard Other functions Pitch bend range: 12 semitones upwards and downwards Transpose: 25 steps (Ð12 semitones to +12 semitones) Tuning: Variable (A4 = approximately 440 Hz ± 50 cents) Terminals MIDI terminals: IN, OUT Assignable terminal: Standard jack (sustain, sostenuto, soft, rhythm start/stop) Headphone/Output terminal: Stereo standard jack Output Impedance: 120 W Output Voltage: 4.5 V (RMS) MAX Power supply terminal: 9 V DC Power supply: Dual power supply system Batteries: 6 D-size batteries Battery life: Approximately 5 hours continuous operation on manganese batteries AC adaptor: AD-5 Auto power off: Turns power off approximately six minutes after last key operation. En- abled under battery power only, can be disabled manually. Speaker output: 2.5 W + 2.5 W Power consumption: 9 V --- 7.7 W Dimensions (HWD): 93.1 ´ 37.3 ´ 12.0 cm (36 11/16 ´ 14 11/16 ´ 4 3/4 inches) Weight: Approximately 5.0 kg (11.0 lbs) (without batteries)
