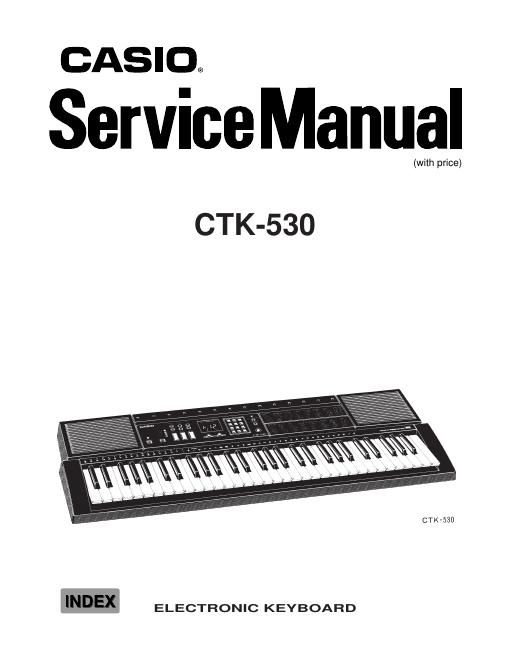

Casio ctk 530 service manual
This is the 18 pages manual for casio ctk 530 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from casio ctk 530 service manual (Ocr-read)
Page 1
Ñ 2 Ñ CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Circuit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Major waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 PCB View and Check Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Schematic Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SPECIFICATIONS GENERAL Number of keys: 61 Polyphonic: 24-note Preset tones: 64 Keyboard controls: Touch response: On/Off, Key transpose: Range from F# to F by a semitone increment Auto-rhythms: 64, Tempo control: 40 to 255 Auto-accompaniment: Mode: CASIO Chord/Fingered/Full-Range Chord 1/Full-Range Chord 2 Controller: Fill-In, Synchro/Ending Digital volume controls: Main volume: 10 steps Accompaniment volume: 100 steps Demo tunes: 3, A Night has 9000 Bars (arranged and programmed byThomas Hirsch) Wanting This (Edward Alstrom) Supersonic Remorse (Edward Alstrom) Tuning control: 440Hz ± 50 cents Built-in speakers: 12 cm dia. 2 W input rating: 2 pcs. MIDI: 16 multi-channel reception Terminals: Phone Jack [Output impedance: 50 W, Output voltage: 4.0 V(rms) MAX], MIDI Jacks (IN, OUT), AC Adapter Jack (9 V) Auto power off: Approximately 6 minutes after the last operation Power source: 2-way AC or DC source AC: AC adapter AD-5 DC: 6 D size dry batteries Battery life: approx. 5 hours by manganese batteries R20P/SUM-1 Power consumption: 7.7 W Dimensions (HWD): 99 x 931 x 326 mm (3-7/8 x 36-5/8 x 12-13/16 inches) Weight: 4.4 kg (9.7 lbs) excluding batteries ELECTRICAL Current Drain with 9 V DC: No Sound Output 180 mA ± 20% Maximum Volume 825 mA ± 20% with keys C3 to E4 pressed in Synth-Lead 1 tone Volume: maximum, Touch response: maximum
Page 2
Ñ 3 Ñ Headphone output level (Vrms with 8 W load each channel): with key C3 pressed in Pan Flute tone 210 mV ± 20% Output level (Vrms with 47 kW load each channel): with key C2 pressed in Pan Flute tone 2000 mV ± 20% Speaker output level (Vrms with 4 W load each channel): with key A1 pressed in Pan Flute tone 2150 mV ± 20% Minimum operating voltage: 6.3 V BLOCK DIAGRAM KC0 ~ KC7FI0 ~ FI7 SI0 ~ SI7 Sound Source ROM (8M-bit) LSI102 MX23C8100MC- 12CA19 LRCK, SO, BCK D/A Converter IC103 UPD6379GR Filter Q108, Q109 Power Amplifier IC101 LA4598 LED driver IC106 BA612 Keyboard MA0 ~ MA19 Power Supply Circuit Q101 ~ Q105, Q110, Q119 D104, D105, D109 VCCAVDD VDD LVDDDVDD VC APOMD0 ~ MD7 Speakers Output MA8 ~ MA11 LEDs / 7Seg. LED LED driver Q111 ~ Q118 La ~ Lg, Lp MIDI IN OUT ButtonsVDD Power Switch Reset IC IC104 RE5VA35AARESET FI10 CPU LSI101 UPD912GF-3BA KI0 ~ KI2 MD0 ~ MD15 LED Latch IC105 HD74HC75P LED Latch IC107 HD74HC373P NMI
