Casio ctk 411 service manual

This is the 19 pages manual for casio ctk 411 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

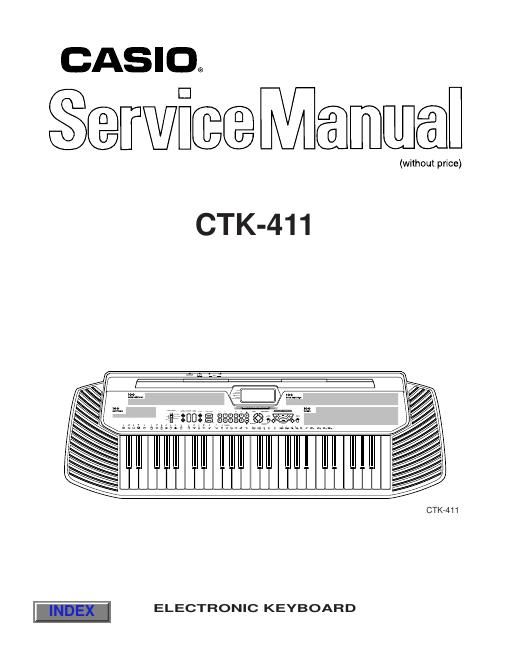

Page: 1 / 19
casio ctk 411 service manual

Extracted text from casio ctk 411 service manual (Ocr-read)


Page 2

Ñ 1 Ñ SPECIFICATIONS GENERAL Keyboard: 49 standard-size keys, 4 octaves Tones: 100 Polyphony: 12 notes maximum (6 for certain tones) Auto accompaniment Rhythm patterns: 100 Tempo: Variable (236 steps, = 20 to 255) Chords: 2 fingering methods (CASIO CHORD, FINGERED) Rhythm controller: START/STOP, SYNCHRO/FILL-IN Accomp volume: 0 to 9 (10 steps) Song bank Tunes: 100 Controllers: PLAY/PAUSE, STOP, REW, FF, LEFT ON/OFF, RIGHT ON/OFF Musical dictionary Name display:TONE, RHYTHM, SONG BANK name/number, keyboard settings name/value Tempo: Tempo value, metronome, synchro standby, beat indicator Chord: Chord name, Chord form Fingering: Fingering indicators, parts, pedal (The pedal indicator is for received MIDI data only.) Song bank status: PLAY, PAUSE, REW, FF Staff: 4 octaves with sharp and flat indications Keyboard: 4 octaves MIDI: 5 multi-timbre receive Other functions Transpose: 12 steps (Ð6 semitones to +5 semitones) Tuning: Variable (A4 = approximately 440 Hz ± 50 cents) Volume: 0 to 9 (10 steps) Terminals MIDI terminals: IN, OUT Phones/Output terminal: Stereo standard jack (Output is monaural.) Output Impedance: 60 W Output Voltage: 5 V (RMS) MAX Power supply terminal: 9 V DC Power supply Dual power supply system Batteries: 6 AA-size batteries Battery life: Approximately 2 hours (SUM-3/R6P)/4 hours (AM3/LR6) AC adaptor: AD-5 Auto power off: Turns power off approximately six minutes after last key operation. Can be disabled manually. Speaker output: 3.0 W (Output is monaural.) Power consumption: 9 V --- 7.5 W Dimensions (HWD): 958 ´ 310 ´ 132 mm (37-3/4 ´ 12-3/16 ´ 5-3/16 inches) Weight: Approximately 3.5 kg (7.7 lbs) (without batteries) ELECTRICAL Current drain with 9 V DC: No sound output 95 mA±20 % Maximum volume 680 mA±20 % with 12 keys C4 to B4 pressed in Synth-Lead 1 Volume: 9 (Max.) Phone output level (Vrms with 8 W load each channel): with key A4 pressed in Synth-Lead 1 95 mV±20 % Speaker output level (Vrms with 4 W load each channel): with key C4 pressed in Synth-Lead 1 1050 mV±20 % Output level (Vrms with 47 KW load each channel): with key C1 pressed in Synth-Lead 1 1100 mV±20 % Minimum operating voltage: 5.7 V
