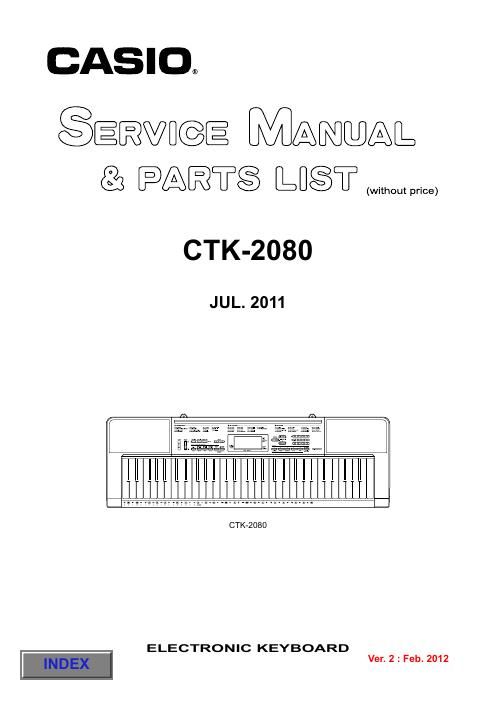

Casio ctk 2080 service manual

Page 2

CTK-2080 – 1 – SPECIFICATIONS Keyboard 61 standard size keys Maximum Polyphony 48 notes (24 for certain tones) Tones Built-in Tones 400 Sampling Tones 1 (Full Sampling) or 3 (Short Sampling) Sampling Time: 1 second (Full Sampling) or approximately 0.3 seconds each (Short Sampling) Effects: 10 types (for Full Sampling samples) Reverb 1 to 10, Off Voice Pad 5 pads × 4 sets (3 sets for sampled sounds, 1 set for percussion only) Metronome Beats per Measure 0, 2 to 6 Tempo Range 30 to 255 Song Bank Tunes 11 0 Step Up Lesson Lessons 4 (Listen, Watch, Remember, Auto) Lesson Part L, R, LR Functions Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation Music Challenge 20 notes Auto Accompaniment Rhythm Patterns 150 One Touch Presets 150 Other Functions Transpose ±1 octaves (-12 to +12 semitones) Tuning A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz) MIDI 16 multi-timbre received, GM Level 1 standard Musical Information Function Tone, Rhythm, Song Bank numbers and names, staff notation, fingering, pedal operation, tempo, measure and beat number, chord name, etc. Inputs/Outputs USB port TYPE B Sustain jack Standard jack (sustain, sostenuto, soft, rhythm) Phones/Output jack Stereo standard jack Output Impedance: 200 Ω, Output Voltage: 4.5 V (RMS) MAX Audio In jack Stereo mini jack Input Impedance: 9 kΩ, Input Sensitivity: 200 mV Power Jack 9.5 V DC
