Bose solo 10 15 tv sound system rev 00
This is the 34 pages manual for bose solo 10 15 tv sound system rev 00.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from bose solo 10 15 tv sound system rev 00 (Ocr-read)

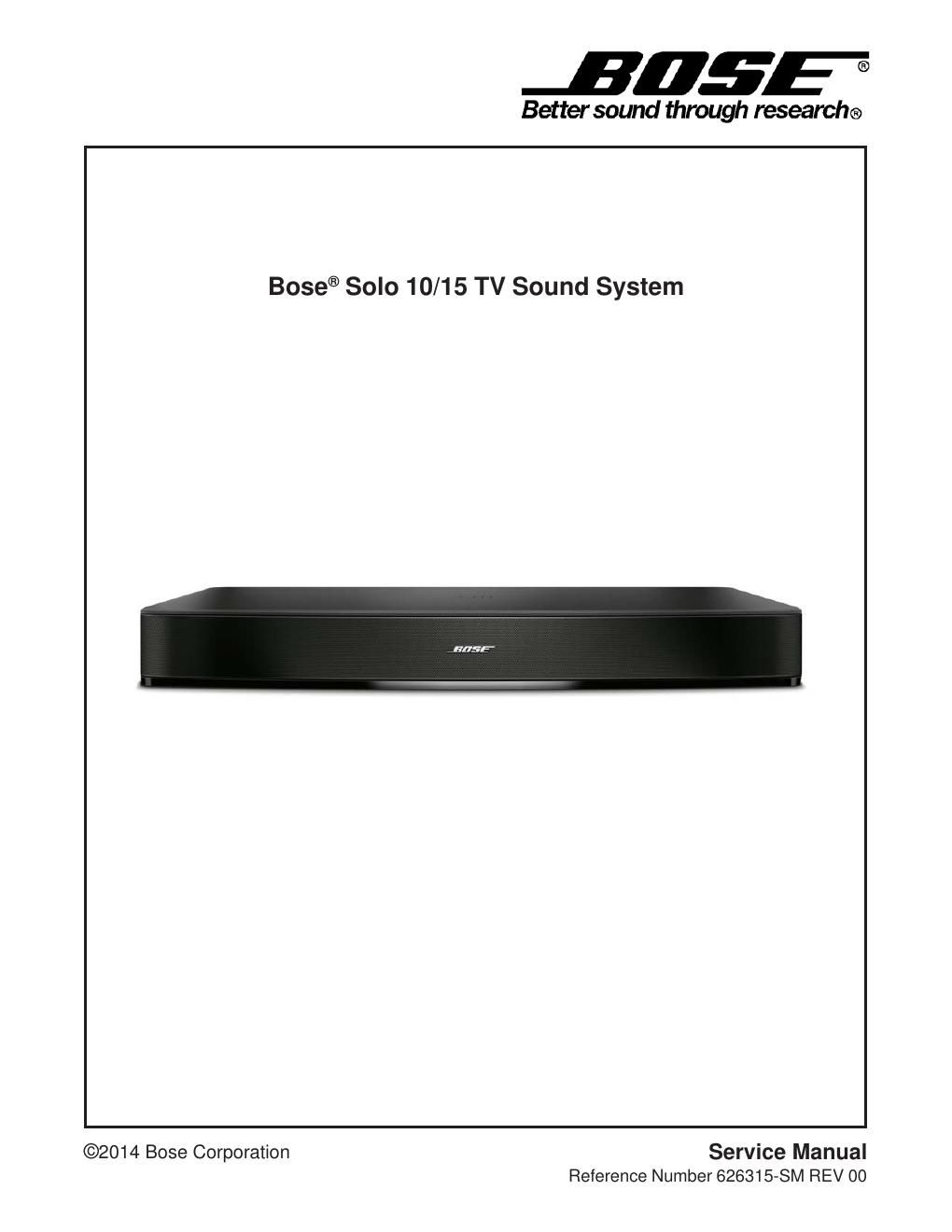

Page 1
2 Contents Safety Information ............................................................................................................................. 3 Electrostatic Discharge Sensitive (ESDS) Device Handling ....................................................... 3 Product Overview............................................................................................................................ 4 Part List Notes .................................................................................................................................. 5 Packaging Part List ........................................................................................................................... 6 Main Part List .................................................................................................................................... 7 Figure 2. Exploded View ......................................................................................................................8 PCB Part List ...............................................................................................................................9-25 Disassembly Procedures .........................................................................................................26-28 Figure 3. PCB Cover Removal ..........................................................................................................26 Figure 4. PCB Removal ....................................................................................................................26 Figure 5. Top Cover Removal ............................................................................................................26 Figure 9. Cloth Grille Enclosure Grommets Location ........................................................................27 Figure 6. Metal Grille Screw Removal ...............................................................................................27 Figure 7A. Metal Grille Removal ........................................................................................................27 Figure 7B. Cloth Grille Removal ........................................................................................................27 Figure 8. Cloth Grille Side Clip ..........................................................................................................27 Figure 10. Driver Removal ................................................................................................................28 Figure 11. IR PCB Removal ..............................................................................................................28 Issuing TAP Commands .................................................................................................................. 29 Test Procedures.......................................................................................................................30-31 TAP Commands............................................................................................................................... 32 Service Manual Revision History .................................................................................................33
Page 2
3 1. Parts that have special safety characteristics are identified by the symbol on schematics or by special notes on the parts list. Use only replacement parts that have critical characteristics recommended by the manu- facturer. 2. Refer to the Hi-POT test on page 31 of this service manual. ELECTROSTATIC DISCHARGE SENSITIVE (ESDS) DEVICE HANDLING This unit contains ESDS devices. We recommend the following precautions when repairing, replacing or transporting ESDS devices: - Perform work at an electrically grounded work station. - Wear wrist straps that connect to the station or heel straps that connect to conductive floor mats. - Avoid touching the leads or contacts of ESDS devices or PC boards even if properly grounded. Handle boards by the edges only. - Transport or store ESDS devices in ESD protective bags, bins, or totes. Do not insert unprotected devices into materials such as plastic, polystyrene foam, clear plastic bags, bubble wrap or plastic trays. SAFETY INFORMATION CAUTION: THE BOSE ® SOLO 10/15 TV SOUND SYSTEM CONTAINS NO USER SERVICEABLE PARTS. TO PREVENT WARRANTY INFRACTIONS, REFER SERVICING TO WARRANTY SER- VICE STATIONS OR FACTORY SERVICE. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED SERVICE CENTER, AND SHALL NOT BE RE- PRODUCED OR USED FOR ANY OTHER PURPOSE.
