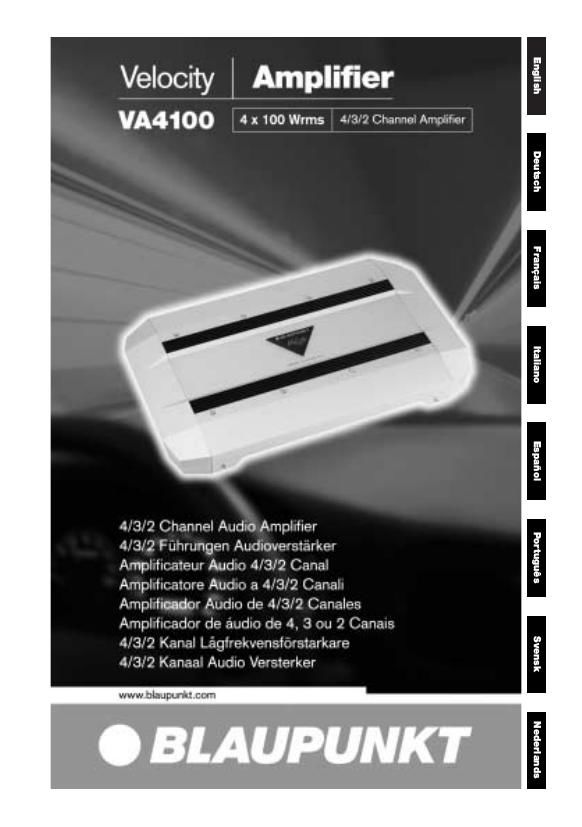

Blaupunkt VA 4100 Owners Manual

This is the 14 pages manual for Blaupunkt VA 4100 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 14
Blaupunkt VA 4100 Owners Manual

Extracted text from Blaupunkt VA 4100 Owners Manual (Ocr-read)


Page 1

BLAUPUNKT SPECIFICATIONS - VA4100, 4/3/2 C HANNEL AMPLIFIER – 1 – All power ratings conform to CEA-2006 standards. P ARAMETER/FEATURE VA4100 Channels 4/3/2 Size ( L x W x D) without trim panels 15.1x9.1x2.4 inches (382x231x60mm) Weight 14.5 lbs. (6.6 kg) Spade screw speaker terminals? YES Maximum terminal wire size 10 ga. Subsonic filter YES (10 Hz) Separate f ont/rear or left/right gains? F/R-YES L/R-NO Fuse TypeATC spade -Two 40A Speaker short, short to +12V, and short to g ound p otection? YES High, low, and reverse voltage p otection? YES Power output transistors Low QZ MOSFET Power supply transistors MOSFET Minimum speaker impedance (non-bridged) 2 ohms (bridged) 4 ohms PERFORMANCE DATA Rated power output @ 0.1% THD, 14.4V (CEA-2006) 4 channels into 4 ohms / 2 ohms (watts rms) 4 x 100 W / 4 x 150 W 2 channels into 4 ohms (watts rms) 2 x 300 W Max Dynamic Power (watts rms) 700W Total Harmonic Distortion @ full power 0.1% THD Signal/Noise ratio (gain cont ols in center) Measured @ 1 watt / 1 kHz dBA>80 Measured @ full rated power (0.1% THD) dBA >100 Damping factor >100 Frequency response (full-range mode) 15 - 50,000 Hz High-pass c ossover frequency limits 50 H z - 250 Hz (variable), 12dB/oct Low-pass c ossover frequency limits 50 H z - 250 Hz (variable), 12dB/oct Input impedance 10 kohms Input signal voltage cont ol range 0.3 - 6.0 vrms Current Draw @ 13 8 VDC (typical values @ X watts / Efficiency %) @ full rated power, unbridged(@ 4 ohms) 50 A (50%) @ 33% rated power, unbridged(@ 4 ohms) 30 A (35%) @ idle (@ 4 ohms) 1 A Minimum battery voltage to maintain rated power 12.6 VDC Usable battery voltage 10 - 16 VDC Trigger line voltage range 10 - 16 VDC Trigger line current draw < 20 mA Tun on delay time @ 2.0 seconds Thermal shutoff temperature (average heat-sink temp) @ 85˚ C (185˚ F) This information is subject to change without notice! - Änderungen vorbehalt\ en! - Sous réserve de modifications! Modifiche riservate! - Wijzigingen voorbehouden! - Ändringar förbehålles\ ! - Modificaciones reservadas! - Sob reserva de alteraç ões!

Page 2

– 2 – ASSEMBLY & M OUNTING
