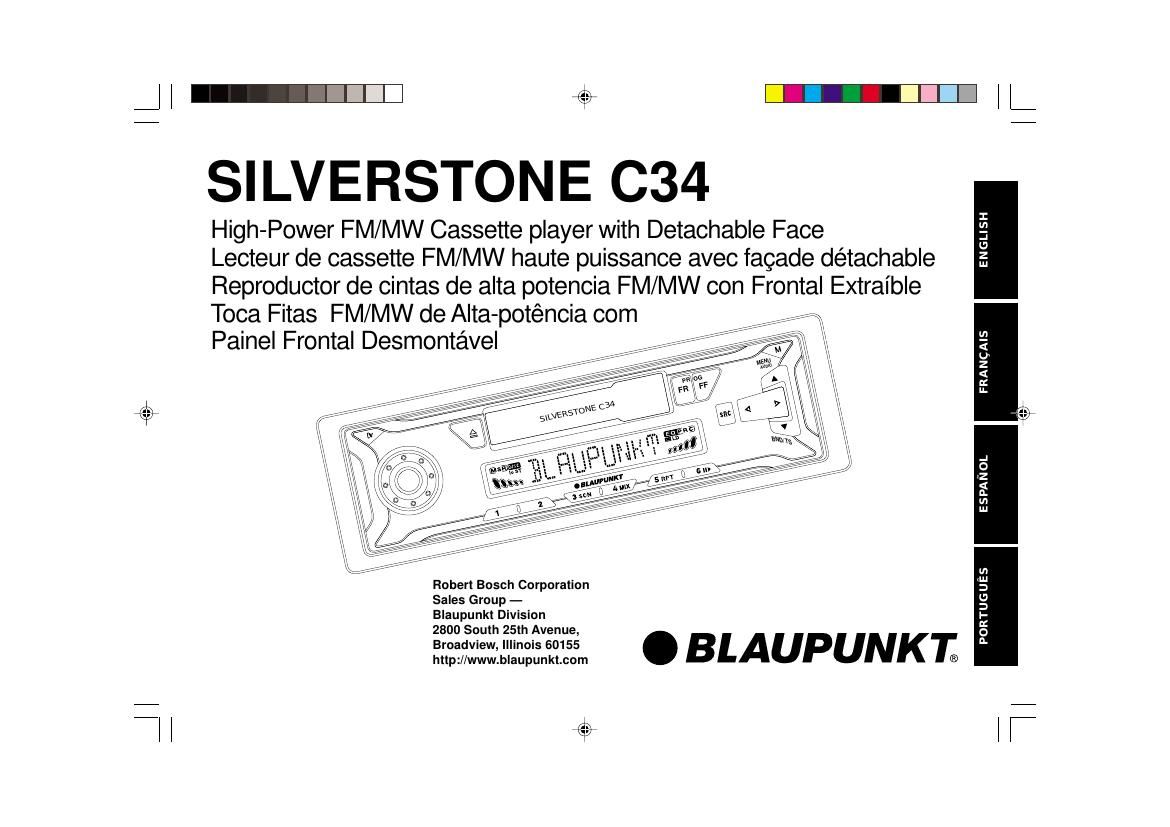

Blaupunkt Silverstone C 34 Owners Manual

This is the 46 pages manual for Blaupunkt Silverstone C 34 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 46
Blaupunkt Silverstone C 34 Owners Manual

Extracted text from Blaupunkt Silverstone C 34 Owners Manual (Ocr-read)


Page 1

ENGLISH E-1 Precautions This equipment has been tested and found to comply wi h the limits for a Class B device, pursuant to Part 15 of he FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accord- ance with instructions, may cause harmful interference with radio communications. However, there is no guarantee that radio interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. You are cautioned hat any changes or modifications not ex- pressly approved in this manual could void your authority to operate this equipment. Features - Detachable front panel - Built-in power amplifier(max. output : 45W X 4ch) - FM/MW PLL Synthesizer tuner - 30 Station preset memory - Travel Store / Scan tuning - Telephone mute - CD changer control - Auxiliary input FCC WARNING - Avoid installing the unit where it would be subject to high temperatures, such as in direct sunlight or a hot air stream from the heater, or where it would be subject to dust, dirt, or excessive vibration. - Do not turn on the unit if the temperature inside the car is very high. Always cool down the unit before usage. Parking your car in direct sunlight will result in a temperature rise. - If he unit does not turn on, check the connections first. Then check whether the fuse at the back of the unit is blown. - Carefully read this manual before using the unit. If you en- counter any problems that are not covered in this manual, please consult the dealer where you purchased he unit or the dealer nearest to you. Handling Cassettes -Do not keep a cassette in the unit when not in use. - Do not expose cassettes to direct sunlight, extremely low temperatures, or moisture. - Do not insert a cassette that appears to be broken, twisted, dirty or with loose or torn labels on it. - Usage of cassettes longer than 90 minutes is not recom- mended since their tapes are very thin and tend to be stretched. Frequent playing back and stopping of these cassette can cause them to be pulled into the cassette deck mechanism. - Before inserting a cassette into the unit, make sure that the tape is not slack. If it is, turn the reel hub with a pencil or similar tool to rewind ightly, as shown below. Handling the Front Panel Attaching the Front Panel Place he right hand side of he front panel so that the parts A of the front panel are engaged with the parts B of the unit as shown below. Then push the left hand side of the front panel un il it is securely locked. Detaching the Front Panel Remove the Tape from the unit, if any, and turn off the power of the unit. Press the to unlock the front panel from the unit. Grasp the front panel as shown below and remove it from the unit. Security To avoid theft or loss of the front panel, you can inac ivate the release button by installing the screw provided. 1.Unscrew the bolt marked ✼ at the left front side of the unit. (See diagram above) 2.Attach he front panel. 3.Select a locking screw from the moun ing hardware (See page 8) and screw it into the same hole to fasten the front panel. Notes- Do not press hard on the front panel when affixing it to the unit. No more than light to moderate pressure should beneeded. - Make sure there is no dust or dirt on the electrical terminals on the back of the front panel as this could cause intermitentoperation or other malfunctions.

Page 2

ENGLISH E-2 Identification of Controls BND/T S MENUAUD O FFFRPR OG SILVERSTONE C34 Front Panel 3 4 5 2 1 67 8 9 11 12 10 13 LCD Display 1 CDC playback mode indicator 2 Main display section 3 Equalizer indicator 4 LOUDNESS indicator 5 R-ch Level Meter/Manual tuning indicator 6 TAPE IN indicator 7 STEREO signal indicator 8 L-ch Level Meter/Manual tuning indicator 9 lo(Local) indicator 13 4 5 2 6 7 8 9 1 PWR button Turns the power of the unit on or off. Mutes the sound. 2 REL button Releases the detachable front panel. 3 VOL dial Adjusts the volume level and audio control. 4 Eject button Ejects the Tape. 5 LCD Display window 6 TAPE insertion slot Insert the Tape here. 7 FR/FF button Tape transport direction change. FR : Rewind FF :Fast forward. 8 MENU button Display selector. Enters the display item adjustment mode. Hold for more than 2 seconds to enters the Audio adjust- ment mode. (Bass, Treble, Loudness, Balance, Fader etc,.). 9 button Scan/Preset scan tuning. Select the item in adjustment mode. Select the disc in CDC mode. 10 button (BND/TS button) Selects the band & T ravel store. 11 / button Used to tune in to the desired station. Select the item in adjustment mode. 12 SRC button Selecting the operating source. Reset the unit(Press and hold for more than 10 seconds). 13 PRESET MEMORY button During radio reception : 1 - ; For Preset memory/call cDuring CDC mode : ; For Scan/Disc scan play; For Mix/Disc mix play; For Repeat/Disc repeat play; For Pause
