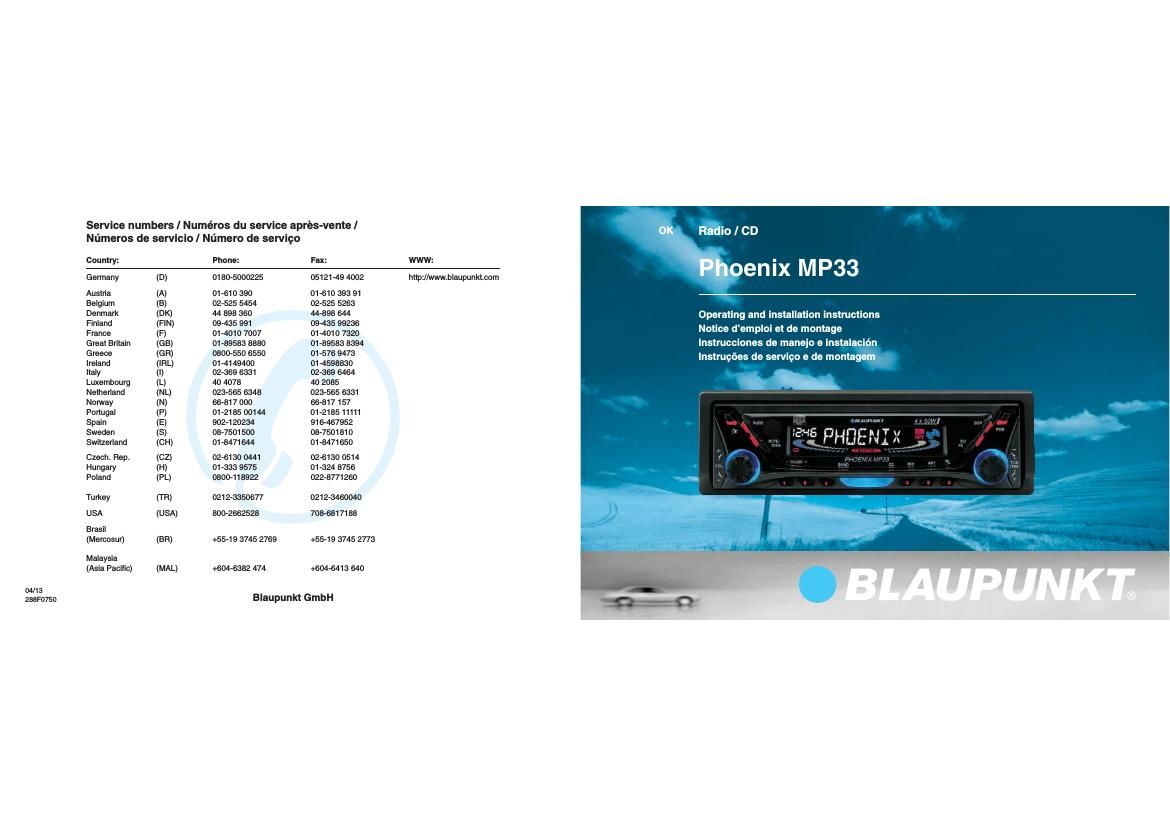

Blaupunkt Phoenix MP 33 Owners Manual
This is the 73 pages manual for Blaupunkt Phoenix MP 33 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Phoenix MP 33 Owners Manual (Ocr-read)
Page 1
ENGLISH E-1 Precautions This equipment has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro- tection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with instructions, may cause harmful interference with radio communications. However, there is no guarantee that radio interference will not occur in particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not ex- pressly approved in this manual could void your authority to operate this equipment. Features - MP3 file playback support - Detachable Flip Down Front Panel - CD-R/RW available - Built-in power amplifier (max. output : 50W ✕ 4ch) - FM/AM PLL Synthesizer tuner - 30 Station preset memory - Travel Store / Scan tuning - IR Remote Controls FCC WARNING - Avoid installing the unit where it would be subject to high temperatures, such as in direct sunlight or a hot air stream from the heater, or where it would be subject to dust, dirt, or excessive vibration. -Do not turn on the unit if the temperature inside the car is very high. Always cool down the unit before usage. Parking your car in direct sunlight will result in a temperature rise. -If the unit does not turn on, check the connections first. Then check whether the fuse at the back of the unit is blown. -Carefully read this manual before using the unit. If you en- counter any problems that are not covered in this manual, please consult the dealer where you purchased the unit or the dealer nearest to you. -This unit has been designed specifically for playback of compact discs bearing the following mark. Other discs can- not be played. Handling Compact Discs -Be careful when removing a compact disc after the play- back is completed because the disc may be extremely hot. -Do not use non-conventional discs such as heart-shaped, octangonal discs, etc. The player could be damaged. -Do not expose compact discs to direct sunlight or any heat source. -Check all compact discs before playing, and discard cracked, scratched or warped discs. -Wipe dirty or damp discs outward from the centre with a soft cloth. -Do not use any solvents such as commercially available cleaners, antistatic spray, or thinner to clean the compact discs. Handling the Front Panel Attaching the Front Panel Place hole A of the front panel onto the spindle B on the unit, then lightly push the right side in. Detaching the Front Panel Remove the CD from the unit, if any, and turn off the power of the unit. Press the Release button , then slide the front panel to the left, and gently pull out the right end of the front panel. Notes - Do not handle the unit roughly when opening/closing the front panel. - Do not put any object or use it like a tray when the front panel is open in a lying position. - Do not put too much force to the operation buttons or the display window as it may cause damage or deform the unit. - Do not press hard on the front panel when affixing it to the unit. No more than light to moderate pressure should be needed. - Be sure to use this unit with the front panel closed. - Be careful not to pinch your finger or hands when opening and closing the front panel. - Make sure there is no dust or dirt on the electrical termi- nals on the back of the front panel as this could cause inter- mittent operation or other malfunctions. - Connectors on the unit and front panel are vital parts trans- mitting the signal. Do not touch, push or scratch them.
Page 2
ENGLISH E-2 Identification of Controls 123 PWR PWR 45 6 + + - - + + - - VOL VOLTUN /TRKTUN /TRK SC/ PS SC/ PS DISP DISP AUDIO AUDIO MUTE/ SENS MUTE/ SENS MIXRPT BAND CD 4 x 50W - FOLDER + PHOENIX MP33 PHOENIX MP33 1 MUTE/SENS button Mutes the sound. Switches the seek sensitivity between local and distance. 2 RELEASE button Open the flip down front panel. 3 AUDIO button Audio control selector; Bass, Treble, Loudness, X-BASS, Balance etc,. 4 Infrared Sensor (behind acrylic facia) Permits wireless remote control of AM/FM/CD with RC- 823 credit card style remote. 5 LCD Display window 6 SC/PS button Scan tuning. Preset scan tuning. Scan play in CD mode. 7 DISP button Display selector. Display priority setting.Clock adjustment. 8 PWR button Turns the power of the unit on or off. 9 TUN/TRK dial Used to tune in to the desired station. 10 PRESET MEMORY button During radio reception : 1 - 6 ; For Preset memory During CD mode : 4/MIX ; For Mix play 5/RPT ; For Repeat play 6/ ; For Pause 11 CD button Selects the CD mode. 12 BAND button Selects the AM/FM band & Travel store. 13 JUMP button If an ID3 Tag has been recorded on MP3 file, one touch switches the unit to ID3 Tag display. 14 FOLDER SELECT button Selects the desired FOLDER in MP3 play mode. 15 VOL dial Adjusts the volume level and audio control. 16 EJECT button Ejects the CD. Reset the unit. 3 16 2 156 78 9 10 11 15 Front PanelLCD Display 1 SUB DISPLAY 2 MAIN DISPLAY 3 Equalizer indicator 4 RPT Mode indicator 5 CD running indicator 6 DISC IN indicator 7 R-ch Level Meter 8 X-BASS indicator 9 L-ch Level Meter 10 STEREO signal indicator 1 234 8 10 12 7 5 9 6 Remote Control You can operate your receivers basic AM, FM, CD features via an IR Remote Control, model RC-823. 4 14 13
