Blaupunkt Miami 100 USB Owners Manual
This is the 2 pages manual for Blaupunkt Miami 100 USB Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Blaupunkt Miami 100 USB Owners Manual (Ocr-read)
Page 1

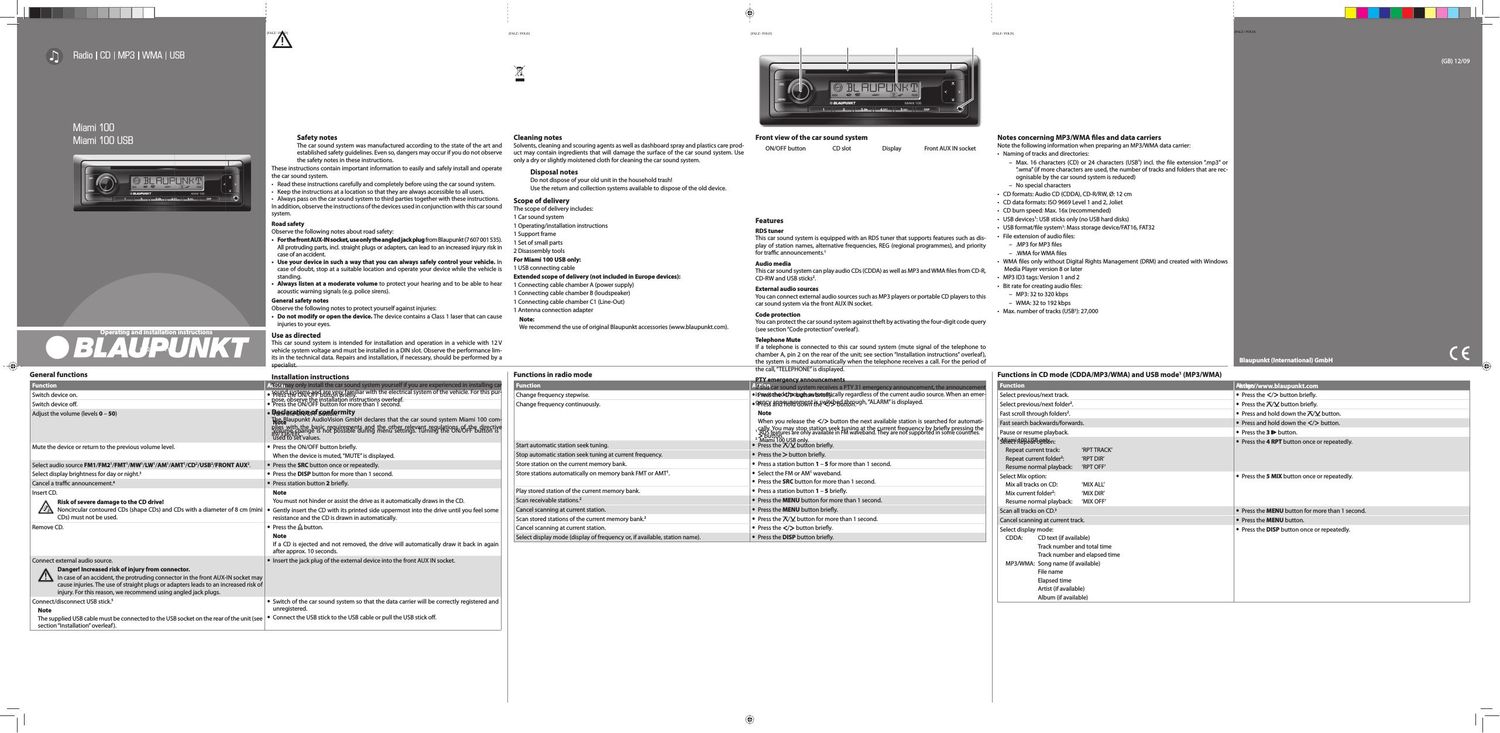

12 V 1 3 5 2 4 6 8 7 + ++ + A 4 x 4 Ω 1st Menu Level 2 nd Menu Level 3 rd Menu Level Settings/Remarks TUNER SET TRAF ON/OFF – Switching on or off the priority of traffi c announcements. 1 If switched on the display shows the traffi c jam symbol ( ) and traffi c announcements are automatically switched through regardless of the current audio source (not available in MW, LW and AM wavebands). During a traffi c announcement, TRAFFIC is displayed. BAND FM2 ON/OFF Switching on and off the availability of a memory bank. If a memory bank is switched on, you can select it in normal radio operation by pressing the SRC button. If all banks are switched off , only the FM1 memory bank is available. FMT ON/OFF MW ON/OFF 2 LW ON/OFF 2 AM ON/OFF 2 AMT ON/OFF 2 REG ON/OFF – Switching on or off RDS feature Regional. 1 SENS LO1...HI6 – Setting the sensitivity of station seek tuning: LO1 (lowest) – HI6 (highest). RDS ON/OFF – Switching on or off RDS features. 1 AUDIO BASS –7...0...+7 – Setting the bass or treble level. TREBLE –7...0...+7 – BAL L9...0...R9 – Setting balance or fader. FADER R9...0...F9 – X-BASS 0/1 – Setting the X-Bass level (0 = off ). PRESETS POP/ROCK/ CLASSIC/P-EQ OFF Selecting the equalizer preset type or turning off the equalizer (setting P-EQ OFF). DISPLAY DIM AUTO /MAN– Switching on or off automatic dimming of display (on: AUTO; off : MAN). 3 VOLUME ON VOLUMELAST VOLExiting the 3 rd menu level when LAST VOL is shown sets the volume at power-on to the volume set last before switching off .4 ONVOL 1...20...50 Setting the volume level at power-on. Exiting the 3 rd menu level when ONVOL is shown sets the volume at power-on to the current ONVOL setting. TAVOL 1...20...50 – Setting the volume level of traffi c announcements. BEEP ON/OFF – Switching on or off the signal tone. CLOCK PERCLK ON/OFF – Switching on or off the permanent display of time. If switched on, time is displayed automatically approx. 16 seconds after last button activation. Any button activa- tion will return you to the display of the current audio source. H MODE 12/24 – Selecting the 12 or 24-hour time. SET HH:MM – Setting the clock. To switch between hours (HH) and minutes (MM) or vice versa press the or button. - VARIOUS DEMO ON/OFF – Switching on or off the demo mode. VERSION P... Display of processor version number (no setting). E... Display of hardware version number (no setting). A... Display of software version number (no setting). TUN AREA EUROPE/USA/ THAILAND/ S AMERICA Selecting the tuner area, the device should be operated in. When the display shows the desired tuner area: Press the button. In the display PRESS UP TO CONFIRM is shown. Press the button to confi rm. - - NORMSET PRESS UP TO CONFIRM Restoring factory settings. Press the button to confi rm. - CODE SET CODE XXXX Switching on or off code protection and changing the code number (see section Code protection). Installation instructions Safety instructions When carrying out installation work and making connections please observe the following safety instructions: Disconnect the negative terminal of the battery! When doing so, please observe the vehicle manufacturers safety instructions. Make sure you do not damage vehicle components when drilling any holes. The cross sections of the positive and negative cables must not be less than 1.5 mm 2. Do not connect the vehicles plug connectors to the radio! You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. - - - - Menu settings Menu navigation Press the MENU button to enter or exit the menu. Press the / button to select a menu item of the current menu. Press the button to enter the next menu level. Press the button to return to the previous menu level. Note The menu is automatically exited approx. 16 seconds after the last button activation. Changed settings are stored automatically. - - - - Making settings If the current menu level shows a value that can be set, this value is fl ashing in the dis- play. Turn the ON/OFF button to set the value. Note Changed settings are stored automatically. In the table below bold characters (e.g.: ON/OFF) indicate available settings. Underlined characters (e.g.: HI6) indicate factory settings. - 12 V 1. 2. ~ 10 mm 3. 53182 165 1 20 0°- 30° ± 10° ± 10° 4. USB* *only Miami 100 USB 6. 12V 7. Installation 5. Code protectionThis car sound system is protected against theft with a four-digit code number (default code number: 0000). If the code query is activated, the code number must be entered after every interruption of the power supply from the vehicle battery. Without this code number, the device is useless to a thief. The code query is activated by default, but you can deactivate it. Activating/deactivating the code query and changing the code number To be able to activate/deactivate the code query or to change the code number, you must also enter the four-digit code number. Proceed as follows:Enter the CODE SET sub menu in the VARIOUS menu (see section MENU settings). CODE XXXX is displayed, XXXX is fl ashing. For each digit of the code number: Turn the ON/OFF button to set the current digit. Press the button to confi rm. Note When entering the code, you may return to a previous digit by pressing the button. After setting and confi rming the forth digit, the current setting CODE ON or CODE OFF is displayed. Note If you enter an incorrect code number, ERR CODE is briefl y displayed. Then XXXX is displayed again and you can repeat the entry. In order to activate or deactivate the code query: Turn the ON/OFF button. In order to change the code number: Press the button. NEW XXXX is displayed, XXXX is fl ashing. For each digit of the new code number: Turn the ON/OFF button to set the current digit. Press the button to confi rm. Note When entering the code, you may return to a previous digit by pressing the button. After setting and confi rming the forth digit, PRESS UP TO CONFIRM is displayed. Press the button to confi rm the new code number. You return to the VARIOUS menu, menu item CODE SET is selected. - - - - - - - - Technical data Voltage supply Operating voltage: 10.5 - 14.4 V Current consumption In operation: 10 A 10 sec. after switch-off : < 3.5 mA Amplifi er Output power: 4 x 18 watts sine at 14.4 V at 4 ohms. 4 x 45 watts max. power Tuner Wavebands in Europe/Thailand: FM: 87.5 - 108 MHz AM (MW ): 531 - 1,602 kHz LW (Europe only): 153 - 279 kHz Wavebands in the US: FM: 87.7 - 107.9 MHz AM (MW ): 530 - 1,710 kHz Wavebands in South America: FM: 87.5 - 107.9 MHz AM (MW ): 530 - 1,710 kHz FM frequency response: 30 - 15,000 Hz CD Frequency response: 20 - 20,000 Hz Pre-amp out 4 channels: 2 V Input sensitivity Front-AUX-IN: 300 mV / 6 kΩ Dimensions and weight W x H x D (mm): 178 x 51.5 x 150 Weight: approx. 1.30 kg Subject to changes Depending on the model, your vehicle may diff er from the description provided here. We accept no responsibility for any damages due to incorrect installation or connection or for any consequential damages. If the information provided here is not suitable for your specifi c installation require- ments, please contact your Blaupunkt dealer, your vehicle manufacturer or our tele- phone hotline. When installing an amplifi er, you must fi rst connect the device earth connections before connecting the plugs for the line-in or lineout jacks. Earth connection of external devices may not be connected to earth of car sound system (housing). - Removal 1 This service is not supported in some countries.2 Only available in respective tuner region (EUROPE: MW, LW; USA and S AMERICA: AM, AMT; THAILAND: AM).3 Driving light signal of the car must be connected to chamber A, pin 6 on the rear of the unit (see section Installation instr uctions ).4 The power-on volume is limited to the value 25 for the setting LAST VOL. 1. 2. Pin assignment 1 4 7 10 13 16 19 2 5 8 11 14 17 20 3 6 9 12 15 18 2 4 6 8 2 4 6 8 1 3 5 7 FUSE 10A 1 3 5 7 C B A C1 C2 C3 A Power supply 1 – 2 Telephone Mute Input 3 – 4 Battery (+12V ) 5 Auto. Antenna* 6 Dimmer Control 7 Ignition (+12V ) 8 Ground (–) B Speakers 1 Right Rear (+) 2 Right Rear (–) 3 Right Front (+) 4 Right Front (–) 5 Left Front (+) 6 Left Front (–) 7 Left Rear (+) 8 Left Rear (–)C1 Line Out 1 Left Rear 2 Right Rear 3 Ground 4 Left Front 5 Right Front 6 Switch Supply (+12V )* C3 AUX 13 RXD 1 14 TXD 1 15 Battery (+12V Out) 16 – 17 – 18 – 19 – 20 – 1 For service use only. C2 7 – 8 – 9 Telephone Mute Input 10 Switch Supply (+12V )* 11 Remote Control Input 12 Remote Control Ground * A-5 + C1-6 + C2-10 ≤ 300 mA Subject to changes Entering the code number after a voltage interruption If the code query is activated, the four-digit code number must be re-entered every time the device is disconnected from the vehicle system voltage (e.g. removal of the battery for repairs). If the code number is required, the display fi rst shows CODE, followed by XXXX, and you can enter the code. Note If the code query is deactivated, CODE OFF is briefl y displayed. For each digit of the code number: Turn the ON/OFF button to set the current digit. Press the button to confi rm. Note When entering the code, you may return to a previous digit by pressing the button. After setting and confi rming the forth digit, the display of the current audio source is shown. Note If you enter an incorrect code number, ERR CODE is briefl y displayed. Then XXXX is displayed again and you can retry the entry. - -
