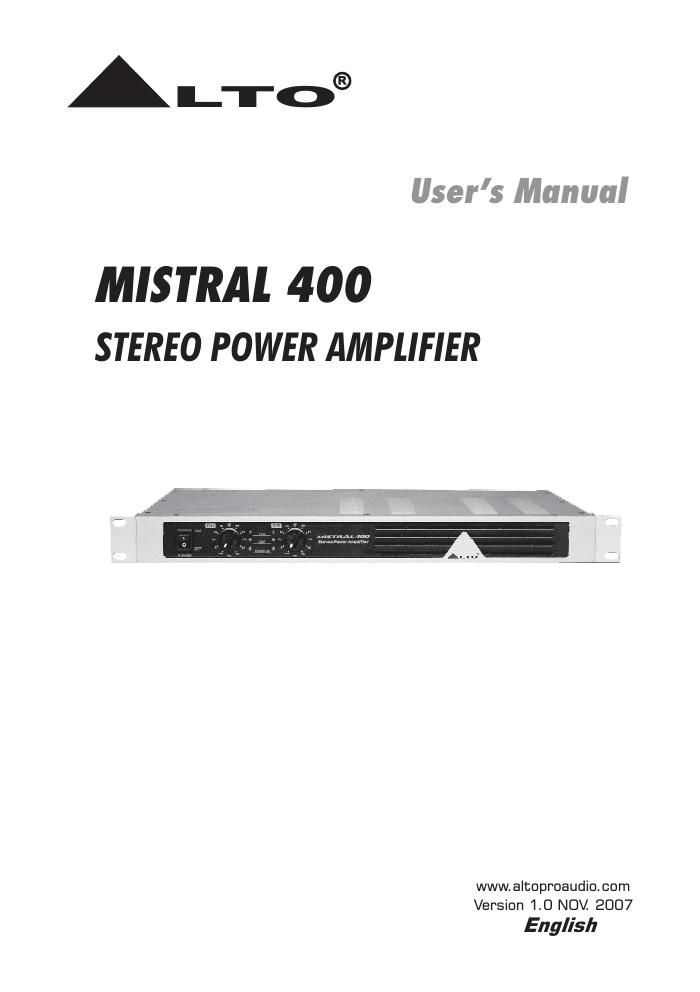

Alto mistral 400 users manual

This is the 11 pages manual for alto mistral 400 users manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 11
alto mistral 400 users manual

Extracted text from alto mistral 400 users manual (Ocr-read)


Page 1

CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEN IMPORTANT SAFETY INSTRUCTION TO REDUCE THE RISK OF ELECTRIC SHOCK PLEASE DO NOT REMOVE THE COVER OR THE BACK PANEL OF THIS EQUIPMENT. THERE ARE NO PARTS NEEDED BY USER INSIDE THE EQUIPMENT. FOR SERVICE, PLEASE CONTACT QUALIFIED SERVICE CENTERS. WARNING To reduce the risk of electric shock and fire, do not expose this equipment to moisture or rain. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Dispose of this product should notbeplacedinmunicipalwaste and should be separate collection. 11. 12. MovethisEquipmentonlywithacart, stand, tripod, or bracket, specified by the manufacturer, or sold with the Equipment. When a cart is used, use caution when moving the cart / equipment combination to avoid possible injury from tip over. Permanent hearing loss may be caused by exposure to \ extremely high noise levels. The US. Government's Occupational Safety and Health Administration (OSHA) has specified the permissible exposure to noise level. These are shown in the following chart: According to OSHA, an exposure to high SPL in excess of these limits may result in the loss of heat. To avoid the potential damage of heat, it is recommended that Personnel exposed to equipment capable of generating high SPL use hearing protection while such equipment is under operation. This symbol, wherever used, alerts you to the presence of un insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you toimportant operating and maintenance instructions. Please read. Protective Ground TerminalAC mains (Alternating Current)Hazardous Live Terminal ON: Denotes the product is turned on. OFF: Denotes the product is turned off. The apparatus shall be connected to a mains socket outlet with a protective earthing connection. The mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. CAUTION Describes precautions that should be observed to prevent damage to the product. Read this Manual carefully before operation. Keep this Manual in a safe place. Be aware of all warnings reported with this symbol. Keep this Equipment away from water and moisture. Clean it only with dry cloth. Do not use solvent or other chemicals. Do not damp or cover any cooling opening. Install the equipment only in accordance with the Manufacturer's instructions. Power Cords are designed for your safety. Do not remove Ground connections! If the plug does not fit your AC outlet, seek advice from a qualified electrician. Protect the power cord and plug from any physical stress to avoid risk of electric shock. Do not place heavy objects on the power cord. This could cause electric shock or fire. Unplug this equipment when unused for long periods of time or during a storm. Refer all service to qualified service personnel only. Do not perform any servicing other than those instructions contained within the User's Manual. To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do not short circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet. HOURS X DAY EXAMPLE 8 6 4 3 2 1,5 1 0,5 0,25 or less SPL 90 92 95 97 100 102 105 110 115 Small gig train Subway train High level desktop monitorsClassic music concert Rock concert

Page 2

IN THIS MANUAL: 1. INTRODUCTION.........................................................................1 2. FEATURES................................................................................1 3. CONTROL ELEMENTS................................................................2 4. APPLICATION............................................................................4 5. TECHNICAL SPECIFICATIONS 6. WARRANTY...............................................................................8 .......................................................7 1. INTRODUCTION Thank you for your purchasing the MISTRAL 400. The MISTRAL 400 is a line of high power, low profile, professional Power Amplifiers with advanced features and great reliability. It delivers tremendous power in only one rack space, providing high level performance under the most demanding conditions. The amplifier contains two independent channels, each channel with separate AC transformer secondaries and . The Power outputs employ standard power connectors and all the inputs are electronically balanced.LED indicators for limit, power on and clip Enjoy your MISTRAL 400 and make sure to read this Manual carefully before operation. 2. FEATURES Mountable in a 19" unit (1U), stereo high power amplifier Fantastic audio quality even with extremely high volume levels Solid and durable can be mounted into a cabinet User-controllable clip limiter 2 100 Watt EIAJ on 4 ohms for MISTRAL 400 Stereo (dual-channel) or bridge mono operating modes Balanced XLR inputs to ensure noiseless long wiring Neutrik Speak-on connectors for output Single channel, bridge and bi-amp output wiring possibility Front panel LED indicators for limit, power on and clip Accurate gain control Manufactured under QS9000, VDA 6.1 certified management system 1
