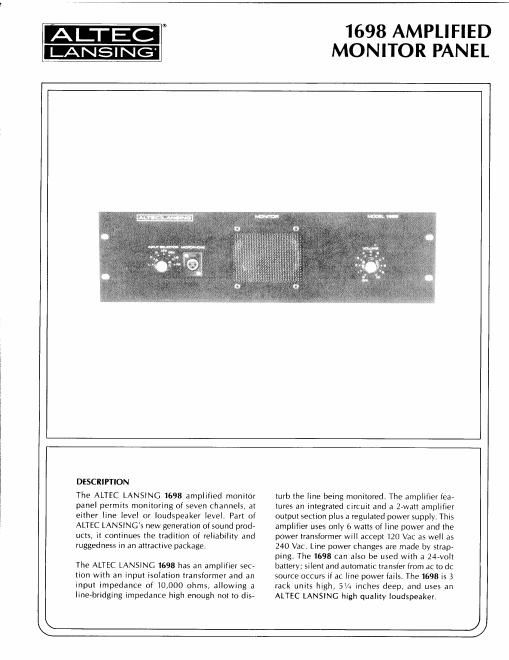

ALTEC Q

1698 AMPLIFIED
MONITOR PANEL

DESCRIPTION

The ALTEC LANSING 1698 amplified monitpr
panel permits monitoring of seven channels, at
either line level or loudspeaker level. Part of
ALTEC LANSINGs new generation of sound prod-
ucts, it continues the tradition of reliability and
ruggedness in an attractive package.

The ALTEC LANSING 1698 has an amplifier sec-
tion with an input isolation transformer and an
input impedance of 10,000 ohms, allowing a
line~bridging impedance high enough not to dis-

turb the line being monitored The amplifier fea-
tures an integrated circuit and a 2-watt amplifier
output section plus a regulated power supply. This
amplifier uses only 6 watts of line power and the
power transformer will accept 120 Vac as well as
240 Vac Line power changes are made by strap-
ping. The 1698 can also be used with a 24-v0lt
battery; silent and automatic transfer from ac to dc
source occurs if ac line power fails. The 1698 is 3
rack units high, 51/4 inches deep, and uses an
ALTEC LANSING high quality loudspeaker.

1)

Page 2

SPECIFICATIONS
Type: Amplified monitor panel

Input Source: Line or loudspeaker level,

up to 7 channels

Input Impedance: 10 k ohm or greater

Amplifier Power
Output: 2 watts with less than 2%

THD at 1000 HZ.

Controls: 1 input selector 7-position
rotary switch.
1 volume control with

on-off switch.

Loudspeaker: High Quality 4 "

ARCHITECT'S AND ENCINEERS SPECIFICATIONS

The amplified monitor panel shall be mountable in a
standard 19 wide equipment rack. It shall contain a
7-position input-selector switch, a volume control
with on-off switch, a 3-pin, panel-mounted, XLR
connector for accessory microphone connection, an
amplifier section and a 4 monitor speaker. The
amplifier section shall have an isolation transformer,
a 2-watt power amplifier with solidstate integrated
circuit and regulated power supply The amplifier
shall be capable of operation from a 120 V AC or

120/240 V A.C. 50/60 Hz,

6 watts.

24 Vdc battery operation:
10 mA at zero signal

250 mA at full power
battery minus (-) is ground

Power Required:

Connectors: (1) 10 screw terminal block;
(1) S screw terminal block;
(1) 2 screw terminal block;
panel mounted 3 pin XLR
connector.

Weight: Approximately 9 lbs.

Color: Black

5% H x19Wx 5 D
(13.3 cm x 48.3 cm x127 cm)
Rack mounted.

Dimensions:

240 V AC, 50/60 Hz line or from a 24V battery. Line
power required shall be 6 watts for full output. DC
current required shall be 10 mA at zero signal and
250 mA for full output. If AC power fails, transfer to
DC shall be silent and automatic.

The 4" monitor speaker shall be an ALTEC LANSING
high quality loudspeaker.

The amplifier monitor panel shall be the ALTEC
LANSlNC Model 1693.

\

PRINTED IN US A

489-1 5M

ALTEC

P. 0. BOX 26105 c OKLAHOMA CITY, OK o 73126-0105 0 U. S. A.

@1989 Altec Lansing Corporation

Revrsion 2

/
