Akai 4000 D Owners Manual

Extracted text from Akai 4000 D Owners Manual (Ocr-read)

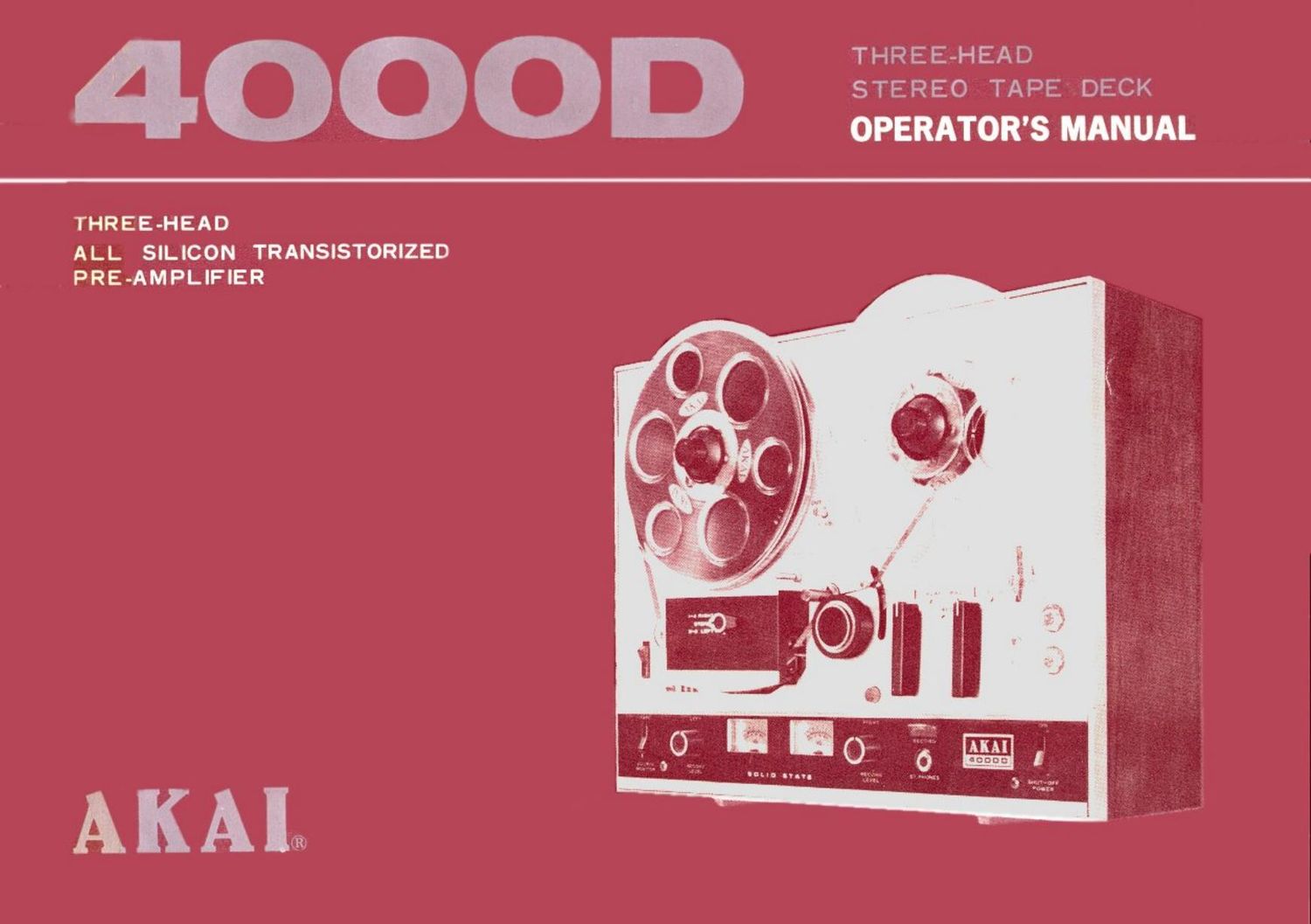

Page 1

T H R E E-H EA D
. STEREO TAPE DECK
. OPERATORS MANUAL

THREE-HEAD
A LL SILICON TRANSISTORIZED
PRE-AMPLIFIER

AKAL,

Page 2

TABLE OF CONTENTS

I GENERAL INFORMATION 10_ Head Demagnetizing ...................................... 21
1_ Specifications ................................................ 1 N ACCESSORIES
2_ Contfo|5 ......................................................... 2 1 Optional Accessories ...................................... 22
3. Voltage and Cycle Conversion -------------------------- 4 2. Standard Accessories -------------------------------------- 23
4_ Tape Speed Selection ...................................... 5
5. 4-Track RecordingxPlayback System ------------------ 6 N SCHEMATIC
6_ Tape Cleaner .................................................. 7
7. Din (One Multiple-Connection) Jack ------------ - ----- 7
8. Automatic Shut.0ff .......................................... 8
9. Operating Precautions .................................... 9

| OPERATING INSTRUCTIONS

1. Tape Loading .................................................. 10
2. Instant Stop/Pause Control ------------------------------ 10
3_ Fast Forward and Rewind ................................. 10
4. Playback ......................................................... 11

Stereo

Monaural
5' Recording ...................................................... 12

Stereo

Monaural

From an External Amplifier

From Another Tape Recorder

From Discs

Sound with Sound
6_ Monitoring ...................................................... l7
7. Tape Splicing and Editing ................................. 17
8. Tape Erasing ................................................... 18
9' Head Cleaning ................................................ 19

Page 16

[El

Fig. 22

(K) Microphone volume level may be adjusted and balanced
by RECORD LEVEL CONTROL (LEFT) in). while observing
VU METER (LEFT) :39.

(N) Invert the reels to record on track 4.

Recording on tracks 3 and 2

Only the left cnannel amplifier is used for monaural record-

ing on tracks 3 and 2. 80, set RECORD LEVEL CONTROL

(RIGHT) '33; to "Mono.

(8) Set TRACK SELECTOR {61: to "32

(G) Insert microphone plug into the MICROPHONE JACK 21.

(K) Microphone volume level may be adjusted and balanced
by RECORD LEVEL CONTROL (LEFT) ~12. while observing
VU METER (LEFT) Q's).

(N) Invert the reels to record on track 4.

FROM AN EXTERIUALLMPLIFIER

If an external amplifier or tuner-amplifier combination is used.
connect TAPE OUTPUT leads of the external amplifier to LINE
INPUT JACKS (ill- and @2) in step (6) of the recording pro-
cedure.

FROM ANOTHER TAPE-RECORDER

Connect LINE OUTPUT JACKS or EXTERNAL SPEAKER JACKS
of the playback machine to LINE INPUT JACKS ((3:1) and QB) of
the record machine in step (G) of the recording procedure.
